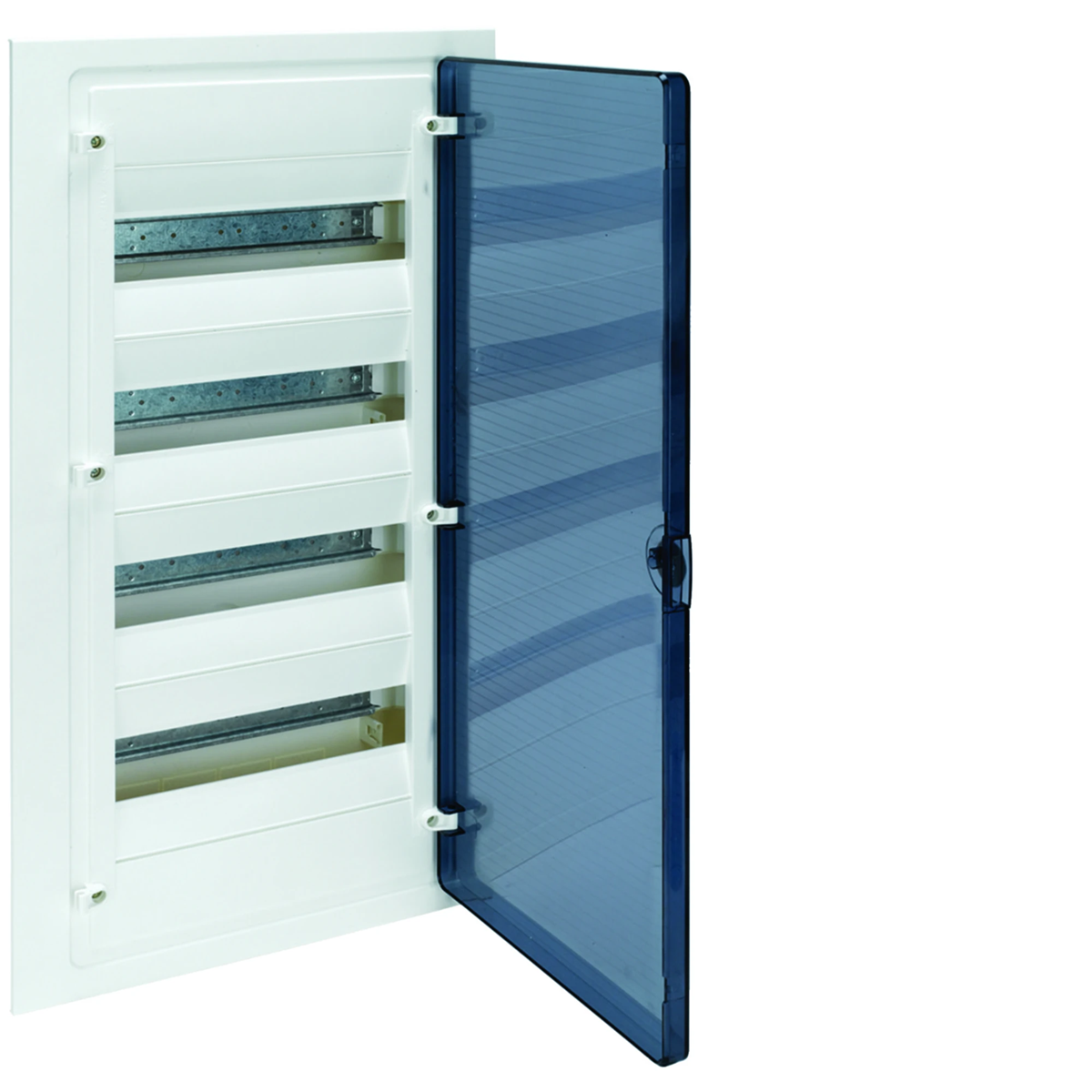

Switchgear p/t golf, IP40, transparent door, 48M VF412TD

local index:
RIP019HAGE
Catalog No:
VF412TD
EAN code:
3250616463356
Manufacturer: HAGER
Depth [mm]: 97.5
Number of rows: 4
Installation: Flush-mounted
Price:
139,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

golf VF type flush-mounted distribution boards

  • 1-4 rows flush-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors.< /li>
  • The housing is made of plastic.
  • Simple replacement of the left-right door, without the need to dismantle the masking frame.
  • Optionally, a lock with a key can be installed.
  • Door opens to 180°.

Components

  • brass screw terminals,
  • caps for free spaces,
  • turrets for attaching cable ties, optional cable support holder,
  • holes for anchors for installation in plasterboard walls, anchors available separately as accessories (VZ696N),
  • doors protected with foil,
  • cabinets packed in solid cardboard boxes.

Technical data

  • Depth [mm]
    97.5
  • Installation
    Flush-mounted
  • Width [mm]
    352
  • Number of modules
    48
  • Number of rows
    4
  • Level of security
    IP40
  • Height [mm]
    688
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    352 mm
  • Built-in depth
    72 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    4
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    688 mm
  • Depth
    97.5 mm
  • Inner depth
    97.5 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 27 pcs.
Weight (kg) 2,940 3,340 115,200
Width (m) 0,688 0,370 0,800
Length (m) 0,352 0,110 1,100
Depth (m) 0,097 0,700 1,200
