Vector outdoor switchgears are made of plastic resistant to long-term exposure to UV radiation, intended for outdoor installation, resistant to weather conditions. Switchgears of this type can be used, among others, in photovoltaic systems; using dedicated mounting plates, it is possible to mount
selected switchgears on pole structures.

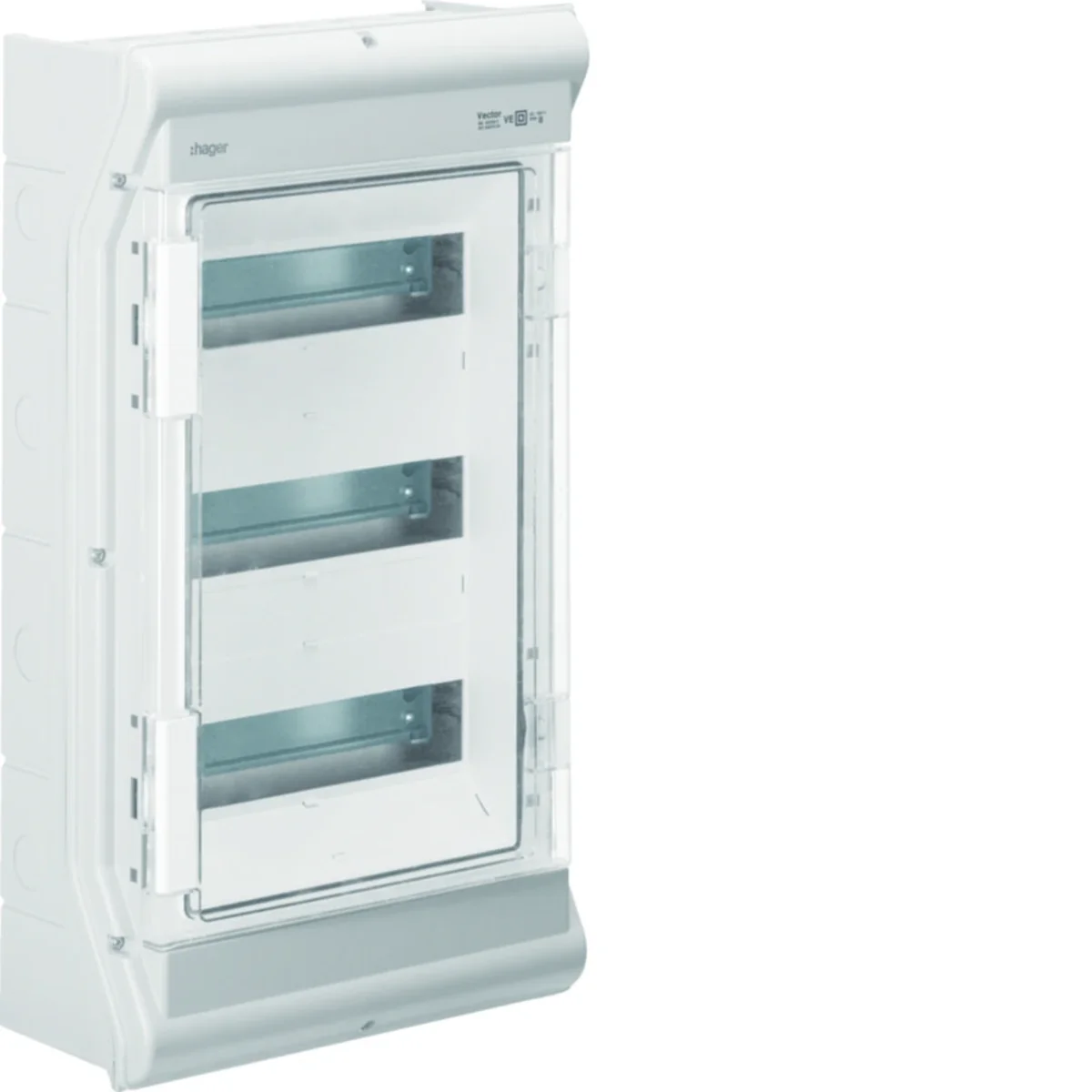

vector outdoor IP65 surface-mounted switchboards
for outdoor applications
Surface-mounted switchboards
&bull ; for apparatus up to 63 A
• version with mounting rail TS35, 1-4 rows
• intended for outdoor installation, made of polycarbonate, resistant to the harmful effects of UV radiation
• possibility of mounting on poles and masts using dedicated brackets (for VE106PN/SN and VE110PN/SN)
• flammability test 850°C by glow wire method according to EN 60695-2
• PE/N terminals ordered separately
• possibility of heating with the FL252Z heater
• II insulation class, IP65, IK08
• color RAL 7035 (light grey)
• standards: DIN VDE 0603 part 1, EN 60439-3, IEC 60670-24
• sealable

Depth [mm]

151
Installation

Surface-mounted
Width [mm]

310
Number of modules

36

Number of rows

3
Level of security

IP65
Height [mm]

552
PKWIU

27.12.40.0

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

36
Cover model

Closed
Housing material

Plastic
Width

310 mm
Inner depth

151 mm
With mounting plate

No
Colour

Grey
Degree of protection (IP)

IP65
Type of closure

Other

Number of rows

3
Type of covering

Door
Transparent cover/door

Yes
Height

552 mm
Depth

151 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

7035
With lock

No

Manufacturer details

Manufacturer

HAGER POLO Sp. z o. o.
Address

43-100 Tychy Fabryczna 10
E-mail

zamowienia@hager.pl
WWW

https://www.hagergroup.pl
Tax identification number

6460015532
GLN

5900009931532

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	30 pcs.
Weight (kg)	2,902	3,221	119,630
Width (m)	0,310	0,336	0,800
Length (m)	0,552	0,168	1,100
Depth (m)	0,151	0,565	1,200
