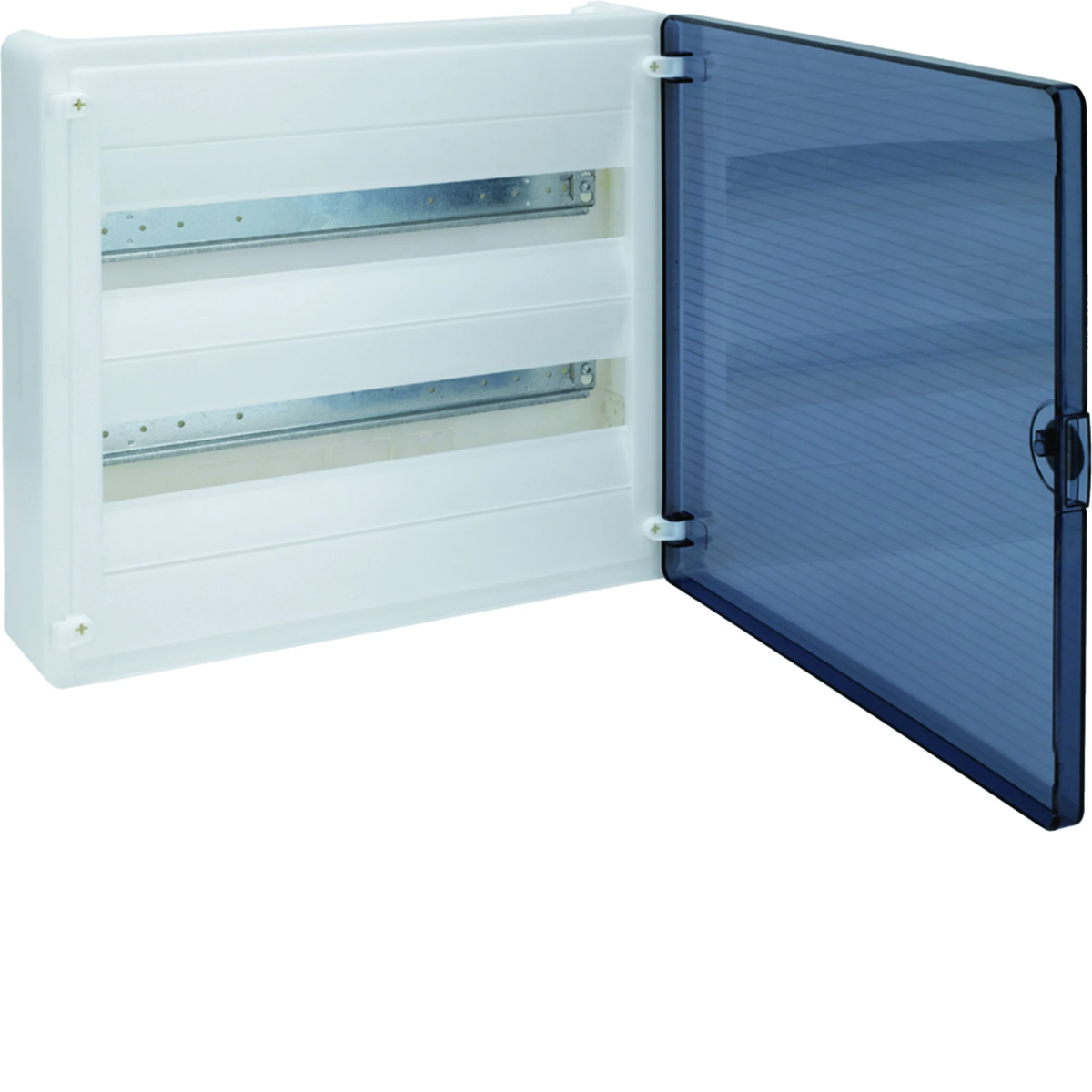

Switchgear n/t golf IP40 transparent door 36M VS218TD

Index local:
RIR390HAGE
Numéro de catalogue:
VS218TD
Code EAN:
3250616593121
Producteur: HAGER
Depth [mm]: 98.5
Number of doors: 1
Number of modules: 36
Prix:
117,56 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
jusqu'à 4 semaines (jours ouvrables)
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

1-4 row surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Données techniques

  • Depth [mm]
    98.5
  • Number of modules
    36
  • Level of security
    IP40
  • Height [mm]
    376.5
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Number of rows
    2
  • Width [mm]
    389.5
  • Number of modules
    36

Autres données techniques

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    18
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    390 mm
  • Inner depth
    99 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    377 mm
  • Depth
    99 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Emballage en vrac

Une sorte de paquet Karton Paleta
Quantité 1 pcs. 1 pcs. 54 pcs.
poids (kg) 1,920 2,140 140,560
Largeur (m) 0,389 0,390 0,800
Longueur (m) 0,377 0,110 1,140
Profondeur (m) 0,098 0,400 1,200
