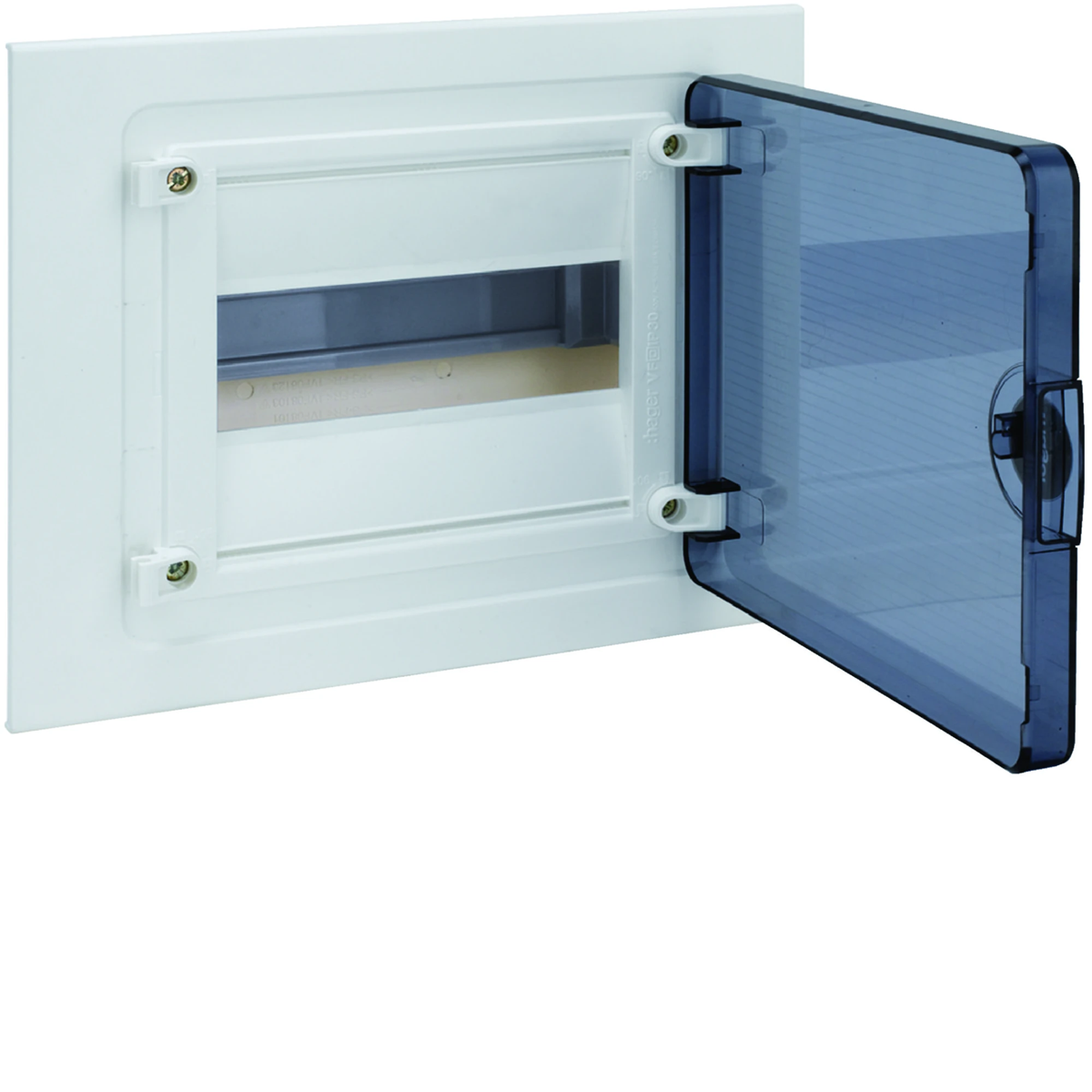

Switchgear, Golf, IP41, transparent door, 8 mod. VF108TD

local index:
RIP048HAGE
Catalog No:
VF108TD
EAN code:
3250616463318
Manufacturer: HAGER
Depth [mm]: 97.5
Number of doors: 1
Number of rows: 1
Price:
32,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switchgear, Golf, IP41, transparent door, 8 mod.

Technical data

  • Depth [mm]
    97.5
  • Number of rows
    1
  • Color
    White
  • Installation
    Flush-mounted
  • Width [mm]
    275
  • Number of modules
    8
  • Number of rows for cameras
    1
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Protection class
    II
  • Housing material
    Material
  • Level of security
    IP40
  • Height [mm]
    225
  • Glow wire test [°C]
    850
  • Lock type
    Latch

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    8
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    275 mm
  • Built-in depth
    72 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • Type of closure
    Other
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    225 mm
  • Depth
    97.5 mm
  • Inner depth
    97.5 mm
  • With mounting plate
    No
  • Colour
    White
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 108 pcs.
Weight (kg) 0,825 0,826 114,208
Width (m) 0,240 0,240 0,800
Length (m) 0,103 0,103 1,265
Depth (m) 0,280 0,280 1,200
