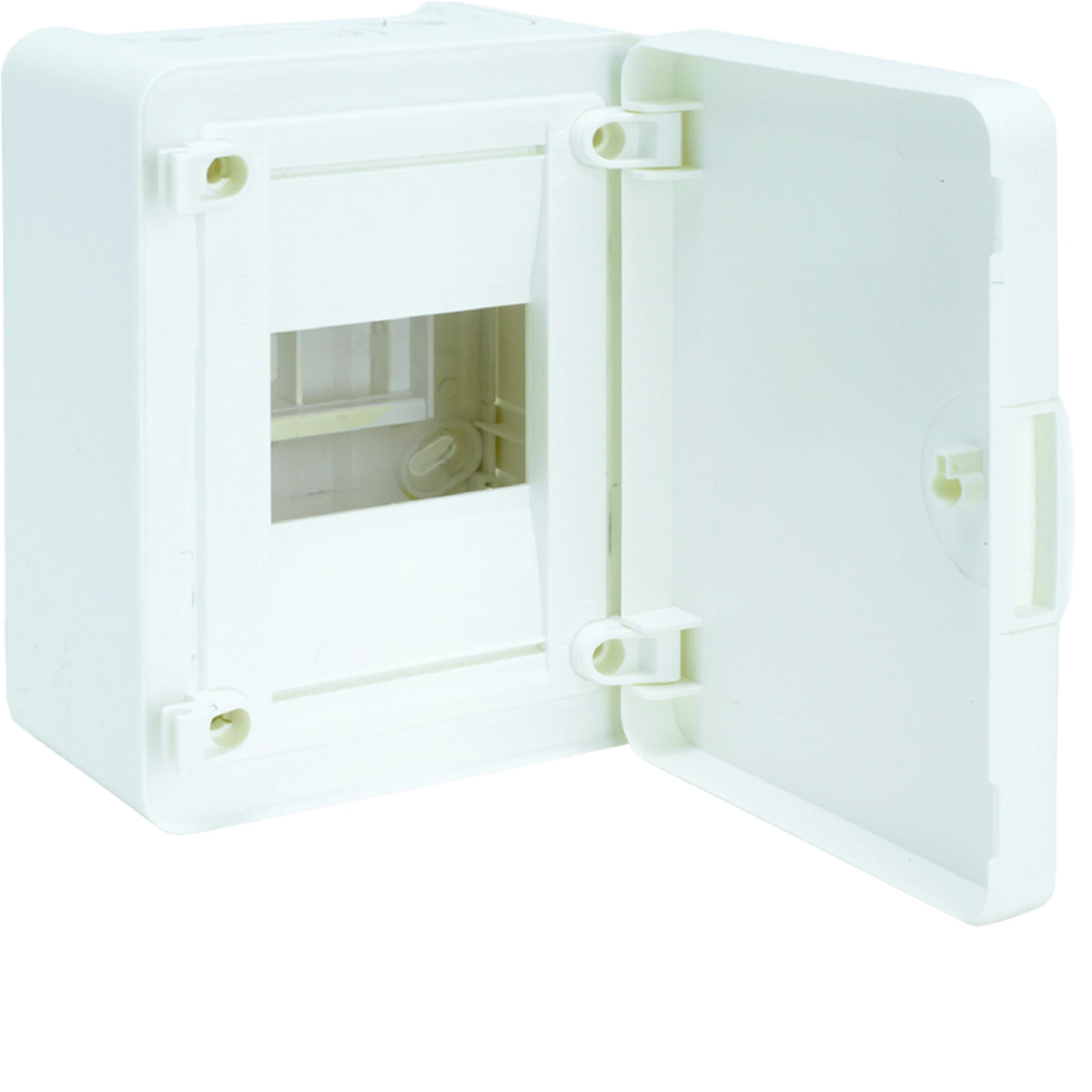

Switchgear, Golf, IP41, solid door, 4mod. VS104PD

local index:
RIR016HAGE
Catalog No:
VS104PD
EAN code:
3250616592940
Manufacturer: HAGER
Depth [mm]: 98.5
Number of rows: 1
Installation: Surface-mounted
Price:
24,98 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

golf VS-type surface-mounted distribution boards

  • 1-4 rows surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with a solid or transparent door.
  • The box is made of plastic.
  • Simple replacement of the left-right door, without the need to dismantle the masking frame.
  • Optionally, the possibility of installing a lock with key.
  • Door opens up to 180°.

Components

  • brass screw terminals,
  • blank caps for free places,
  • TS35 rails mounted directly on the rear wall of the switchgear allow additional cable routing behind them.

New marking system (except for 4 and 8 modular switchboards)

  • doors protected with foil,
  • cabinets packed in solid cardboard boxes,
  • turrets for attaching cable ties, optional cable retainer (VZ699N).

Technical data

  • Depth [mm]
    98.5
  • Installation
    Surface-mounted
  • Width [mm]
    137.5
  • Number of modules
    4
  • Number of rows
    1
  • Level of security
    IP40
  • Height [mm]
    183.5
  • PKWIU
    27.12.40.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    4
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    138 mm
  • Inner depth
    99 mm
  • With mounting plate
    No
  • Colour
    White
  • With lock
    No
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    184 mm
  • Depth
    99 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 240 pcs.
Weight (kg) 0,430 0,500 32,000 153,000
Width (m) 0,138 0,150 0,575 0,800
Length (m) 0,184 0,105 0,475 1,100
Depth (m) 0,098 0,190 0,785 1,200
