Switchgear for Golf IP41 transparent door 36 modules VS312TD

Name: Switchgear for Golf IP41 transparent door 36 modules
Brand: HAGER
SKU: RIP424HAGE
Price: 76.96 PLN

local index:

RIP424HAGE

Catalog No:

VS312TD

EAN code:

3250616593091

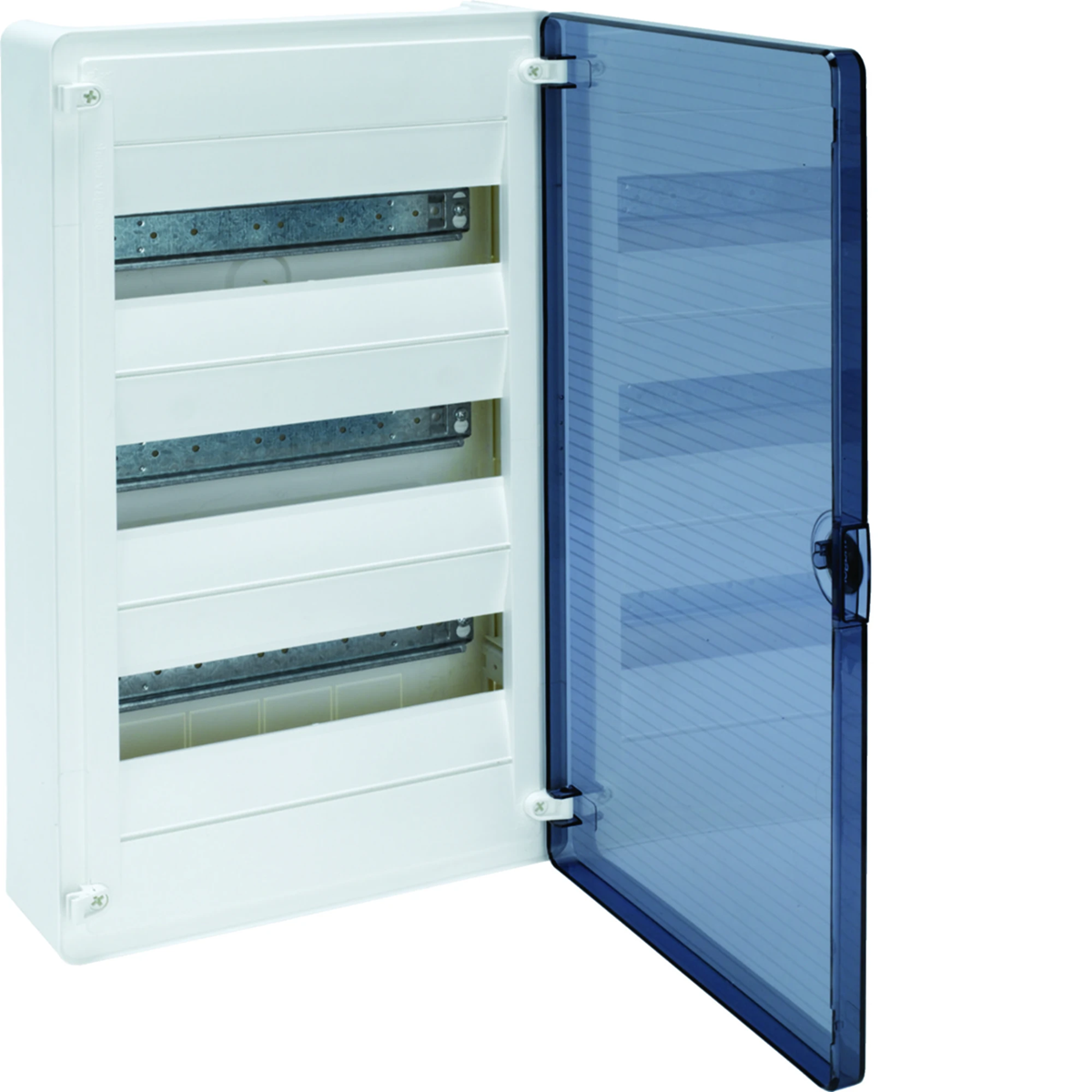

Switchgear for Golf IP41 transparent door 36 modules

Click on the photo to enlarge

Manufacturer: HAGER

Depth [mm]: 98.5

Number of doors: 1

Number of modules: 36

See full description

Price:

76,96 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

1-4 row surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Technical data

Depth [mm]

98.5
Number of modules

36
Level of security

IP40
Height [mm]

501.5
PKWIU

27.12.40.0

Number of doors

1
Number of rows

3
Width [mm]

281.5
Number of modules

36

Other technical data

Mounting method

Surface mounted
Width in number of modular spacings

12
Cover model

Closed
Housing material

Plastic
Width

282 mm
Inner depth

99 mm
With mounting plate

No
Colour

White
Degree of protection (IP)

IP40
Type of closure

Other

Number of rows

3
Type of covering

Door
Transparent cover/door

Yes
Height

500 mm
Depth

99 mm
DIN-rail

Yes
Extension possible

Yes
RAL-number

9010
With lock

No

Bulk packaging

A kind of package		Karton	Paleta
Quantity	1 pcs.	1 pcs.	55 pcs.
Weight (kg)	1,876	2,100	140,500
Width (m)	0,295	0,295	0,800
Length (m)	0,105	0,105	1,140
Depth (m)	0,510	0,510	1,200
