Switchgear for Golf IP41 full door 12 modules VS112PD

local index:
RIP005HAGE
Catalog No:
VS112PD
EAN code:
3250616595064
Manufacturer: HAGER
Length [mm]: 252
Level of security: IP40
Width [mm]: 282
Price:
38,23 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

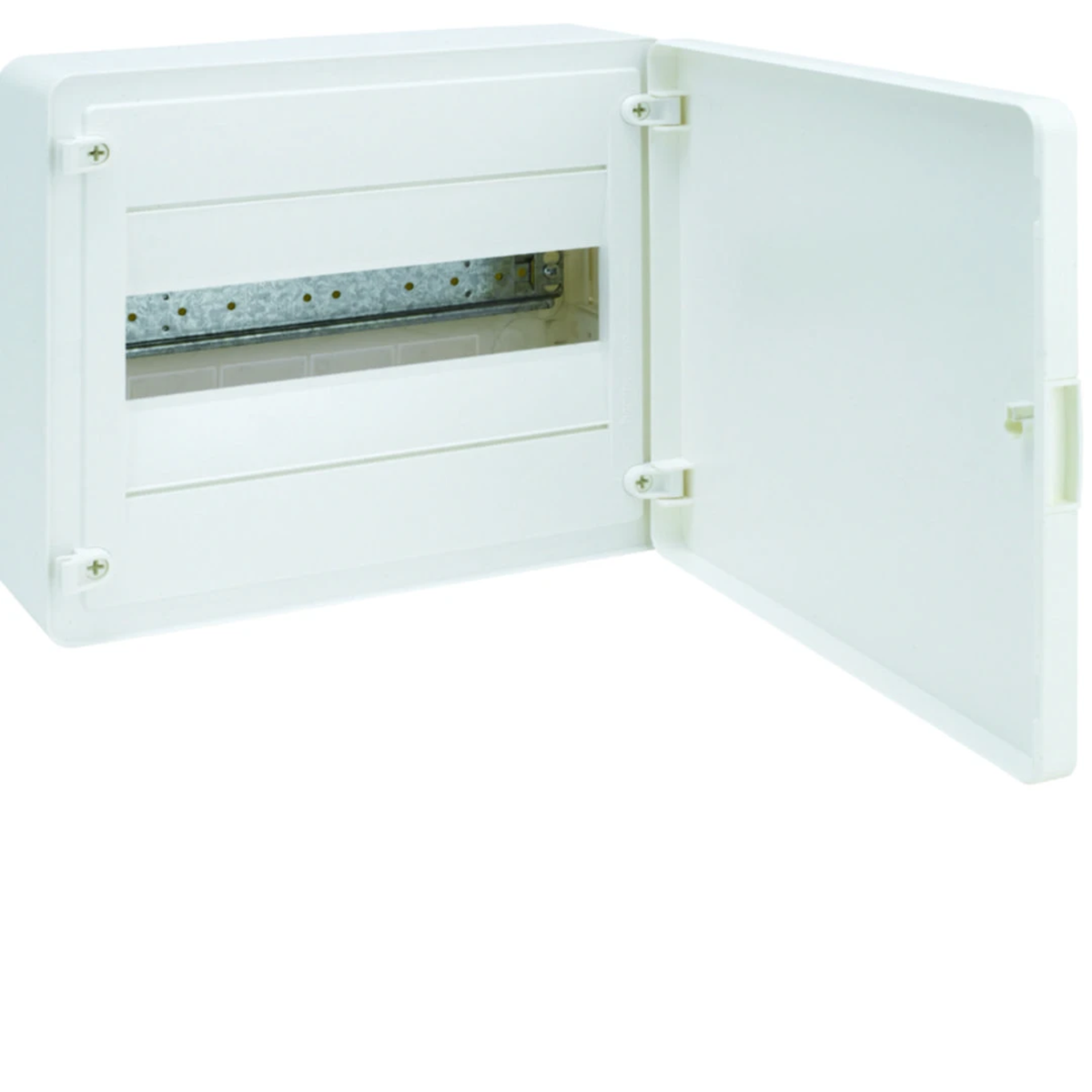

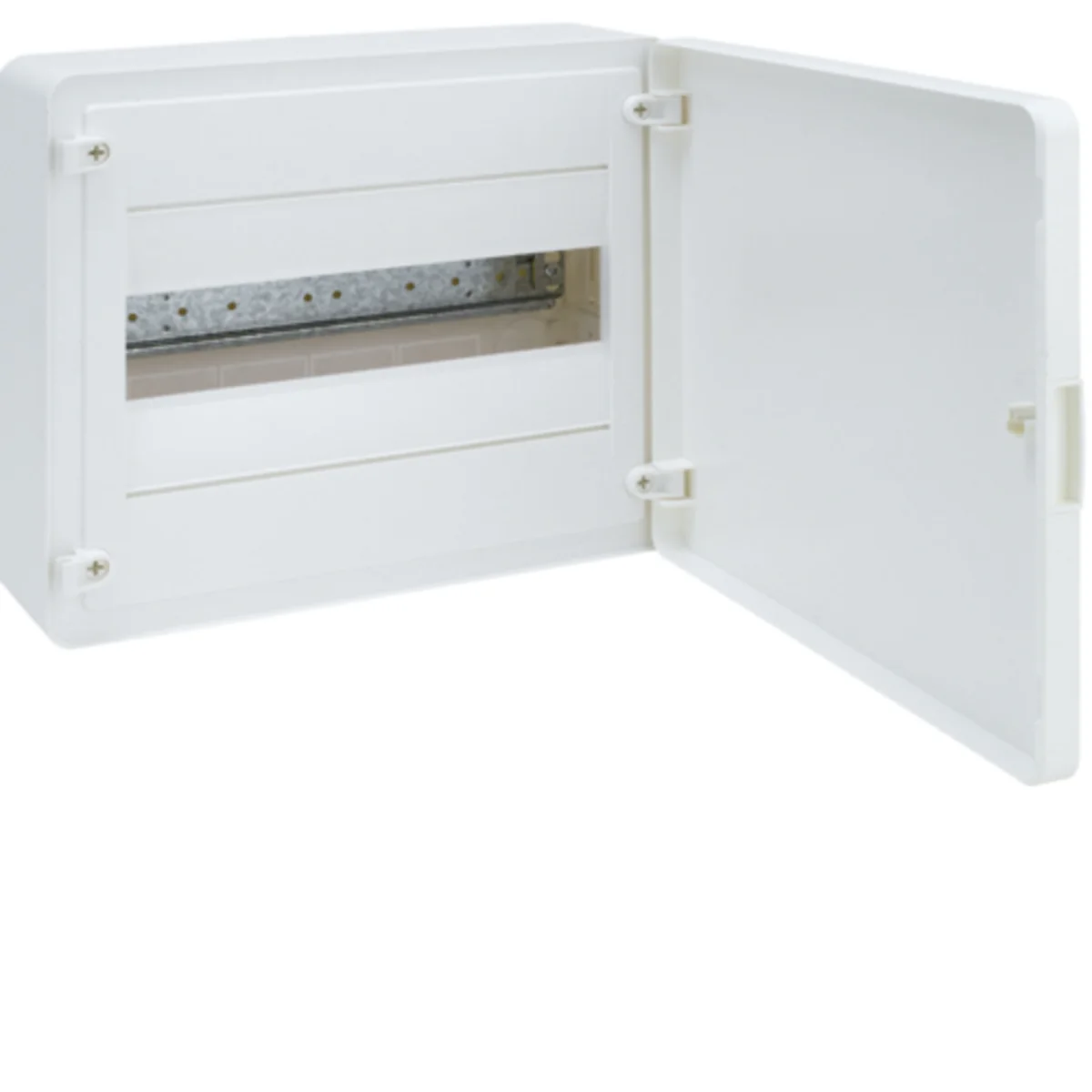

1-4 rows surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Technical data

  • Length [mm]
    252
  • Width [mm]
    282
  • PKWIU
    27.12.40.0
  • Level of security
    IP40
  • Height [mm]
    99

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    282 mm
  • Inner depth
    99 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    252 mm
  • Depth
    99 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 108 pcs.
Weight (kg) 0,952 1,060 139,480
Width (m) 0,290 0,290 0,800
Length (m) 0,105 0,105 1,140
Depth (m) 0,267 0,267 1,200
