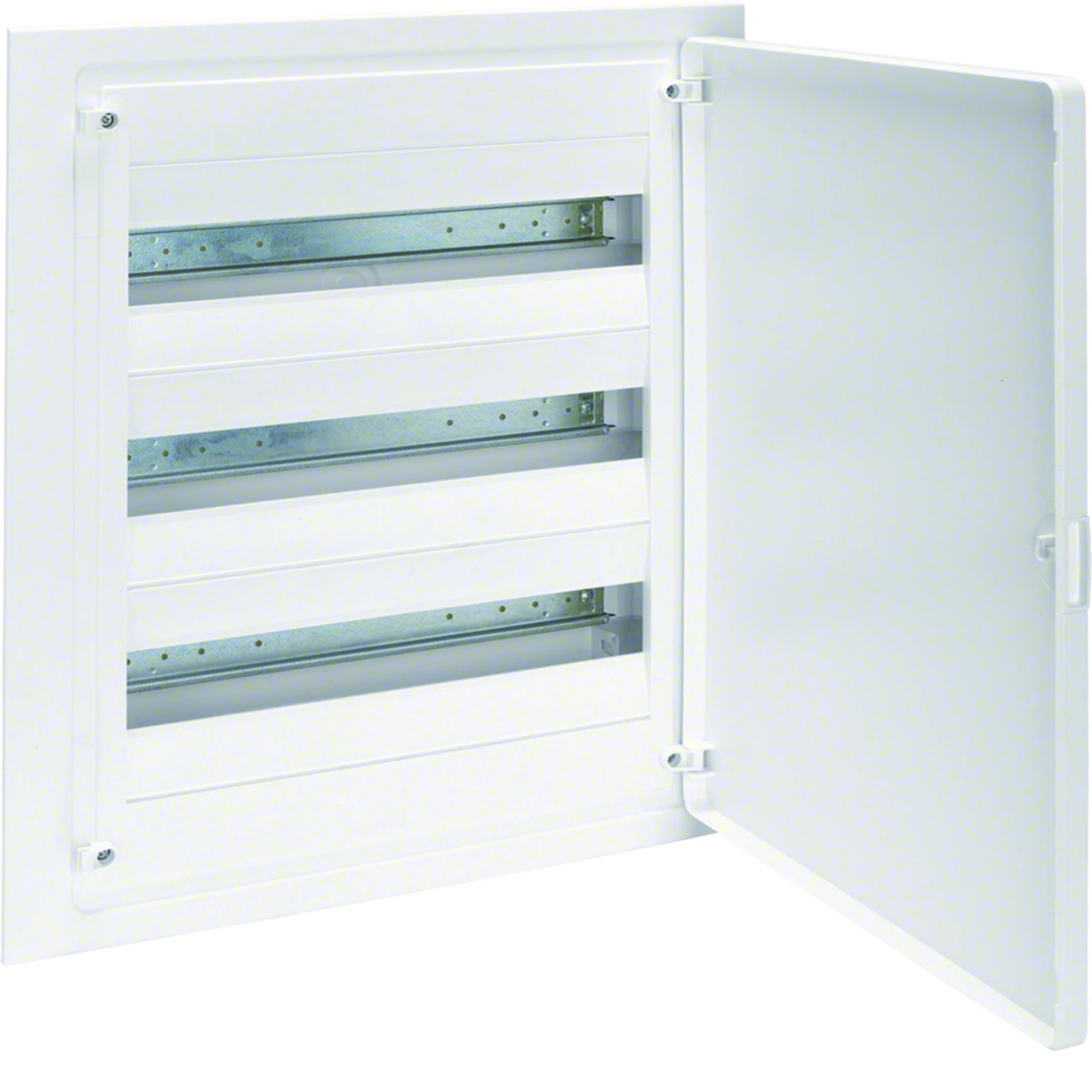

Switchgear entitled Golf IP41 full door VF318PD

Indeks lokalny:
RIP001HAGE
Nr katalogowy:
VF318PD
Kod EAN:
3250616463271
Producent: HAGER
Depth [mm]: 97.5
Number of doors: 1
Number of modules: 54
Cena:
103,66 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 4 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

1-4 row surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Dane techniczne

  • Depth [mm]
    97.5
  • Number of modules
    54
  • Level of security
    IP40
  • Height [mm]
    543
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Number of rows
    3
  • Width [mm]
    460
  • Number of modules
    54

Pozostałe dane techniczne

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    18
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    460 mm
  • Built-in depth
    72 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    3
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    543 mm
  • Depth
    97.5 mm
  • Inner depth
    97.5 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other

Dane producenta

  • Producent
    HAGER POLO Sp. z o. o.
  • Adres
    43-100 Tychy Fabryczna 10
  • NIP
    6460015532

Opakowania zbiorcze

Rodzaj opakowania Karton Paleta
Ilość 1 szt. 30 szt.
Waga (kg) 3,310 124,300
Szerokość (m) 0,475 0,800
Długość (m) 0,105 1,280
Głębokość (m) 0,566 1,200
