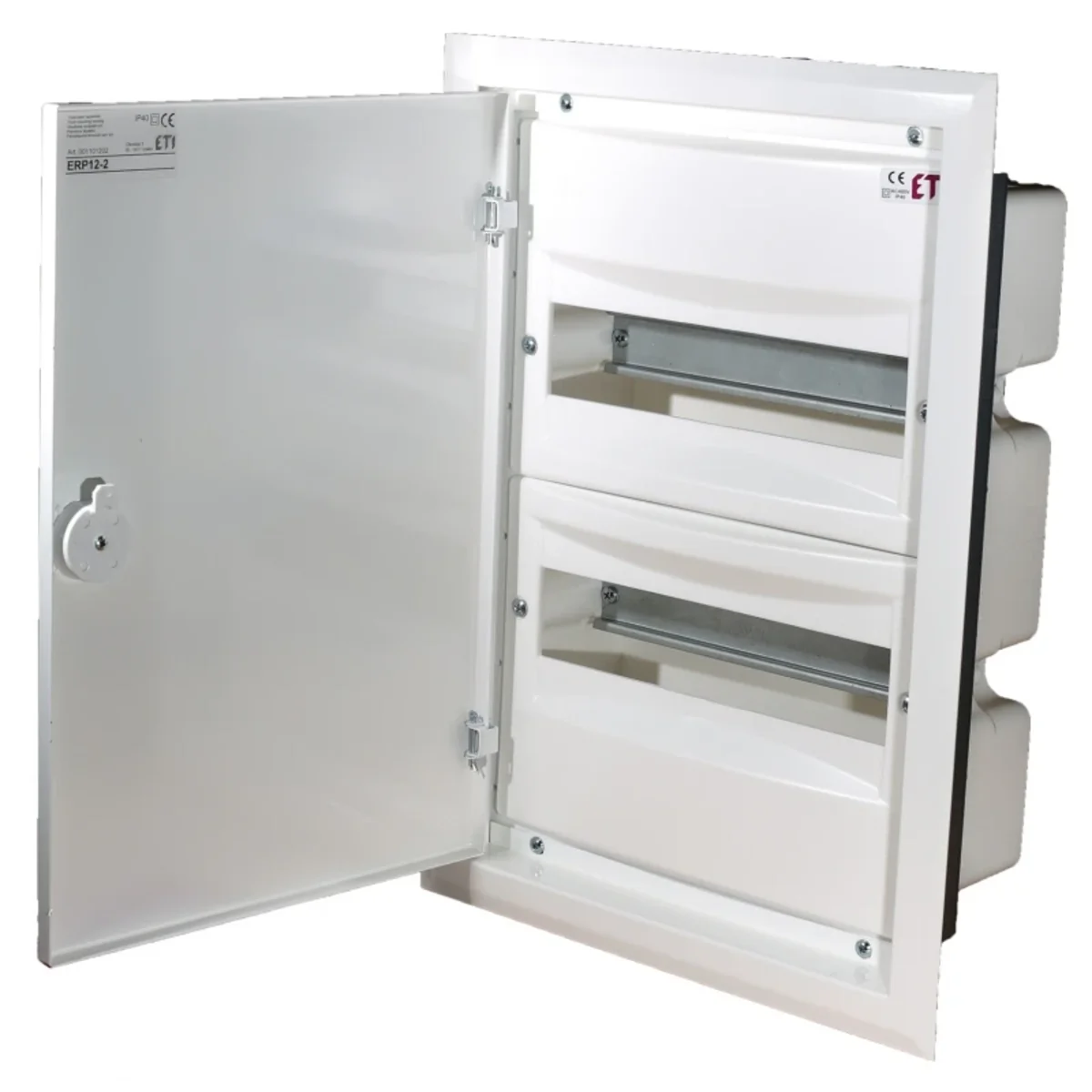

Switchgear enclosure above ERP12-2 001101202

local index:
RIP020ETIP
Catalog No:
001101202
EAN code:
3838895609889
Manufacturer: ETI POLAM
Number of modules: 24
Number of rows: 2
Protection class: II
Price:
52,77 €
gross / pcs.
(including VAT 23%)
15,99 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - Flush-mounted switchgears are used in residential and industrial construction for the assembly of modular apparatus in order to ensure the appropriate degree of apparatus protection. The switchgear with a lock and a key prevents unauthorized access

Technical data

  • Number of modules
    24
  • Protection class
    II
  • Rated voltage [V]
    400
  • Level of security
    IP20
  • Weight [g]
    3300
  • Accurate color
    RAL 9016
  • Number of rows
    2
  • Color
    Gray
  • Mechanical resistance
    IK08
  • Working temperature [°C]
    from -25 to +60
  • PE/N terminals
    2014-12-12 00:00:00
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Height
    448 mm
  • Depth
    120 mm
  • DIN-rail
    Yes
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Number of rows
    2
  • Housing material
    Plastic
  • Width
    326 mm
  • Built-in depth
    125 mm
  • EMC-version
    Yes
  • RAL-number
    9016
