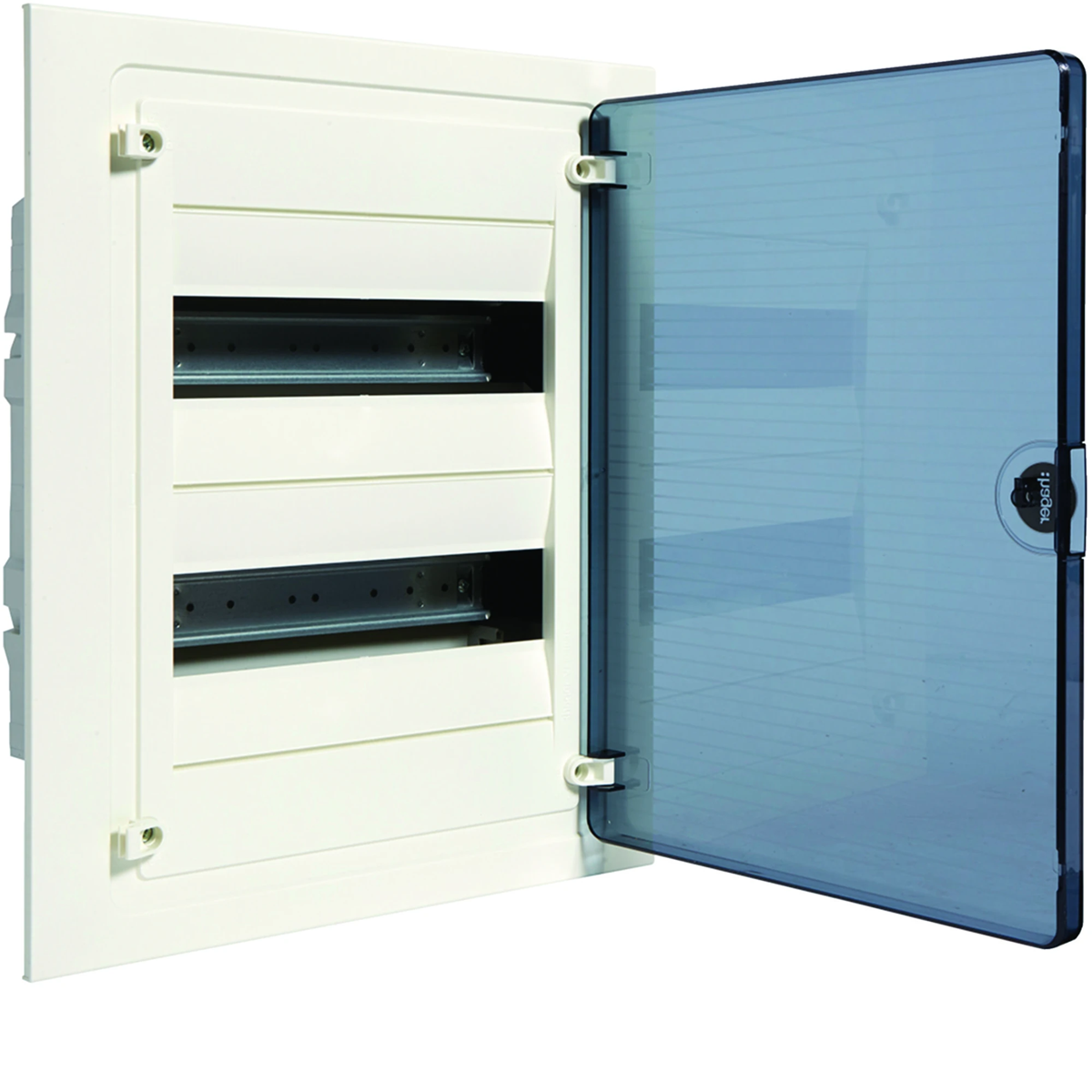

switchboard entitled Golf IP41 transparent door 24 modules VF212TD

local index:
RIP426HAGE
Catalog No:
VF212TD
EAN code:
3250616463332
Manufacturer: HAGER
Depth [mm]: 97.5
Number of doors: 1
Number of modules: 24
Price:
65,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

1-4 row surface-mounted distribution boards, for 4 to 72 modules, for devices with a depth of up to 70 mm, supplied with solid or transparent doors. The box is made of plastic. Simple replacement of the left-right door, without the need to dismantle the masking frame. Optionally, a lock with a key can be installed. The door opens to the angle of 180°.

Technical data

  • Depth [mm]
    97.5
  • Number of modules
    24
  • Level of security
    IP40
  • Height [mm]
    418
  • PKWIU
    27.12.40.0
  • Number of doors
    1
  • Number of rows
    2
  • Width [mm]
    352
  • Number of modules
    24

Other technical data

  • Mounting method
    Flush-mounted
  • Width in number of modular spacings
    12
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    382 mm
  • Built-in depth
    72 mm
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • RAL-number
    9010
  • With lock
    No
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    418 mm
  • Depth
    97.5 mm
  • Inner depth
    97.5 mm
  • With mounting plate
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Other

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 54 pcs.
Weight (kg) 1,900 2,000 133,000
Width (m) 0,370 0,370 0,800
Length (m) 0,105 0,105 1,070
Depth (m) 0,420 0,420 1,200
