Surface-mounted switchgear SRn-6 (N+PE) 1.1

local index:
RIR204ELOP
Catalog No:
1.1
EAN code:
5903978376151
Depth [mm]: 95
Number of modules: 6
Color: White
Price:
8,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 37 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

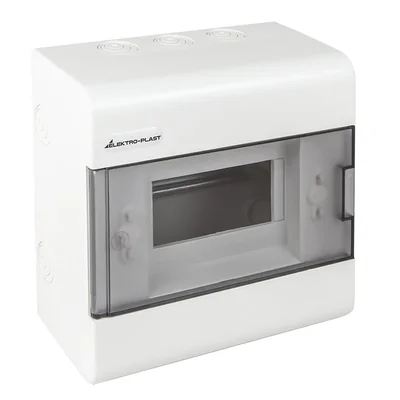

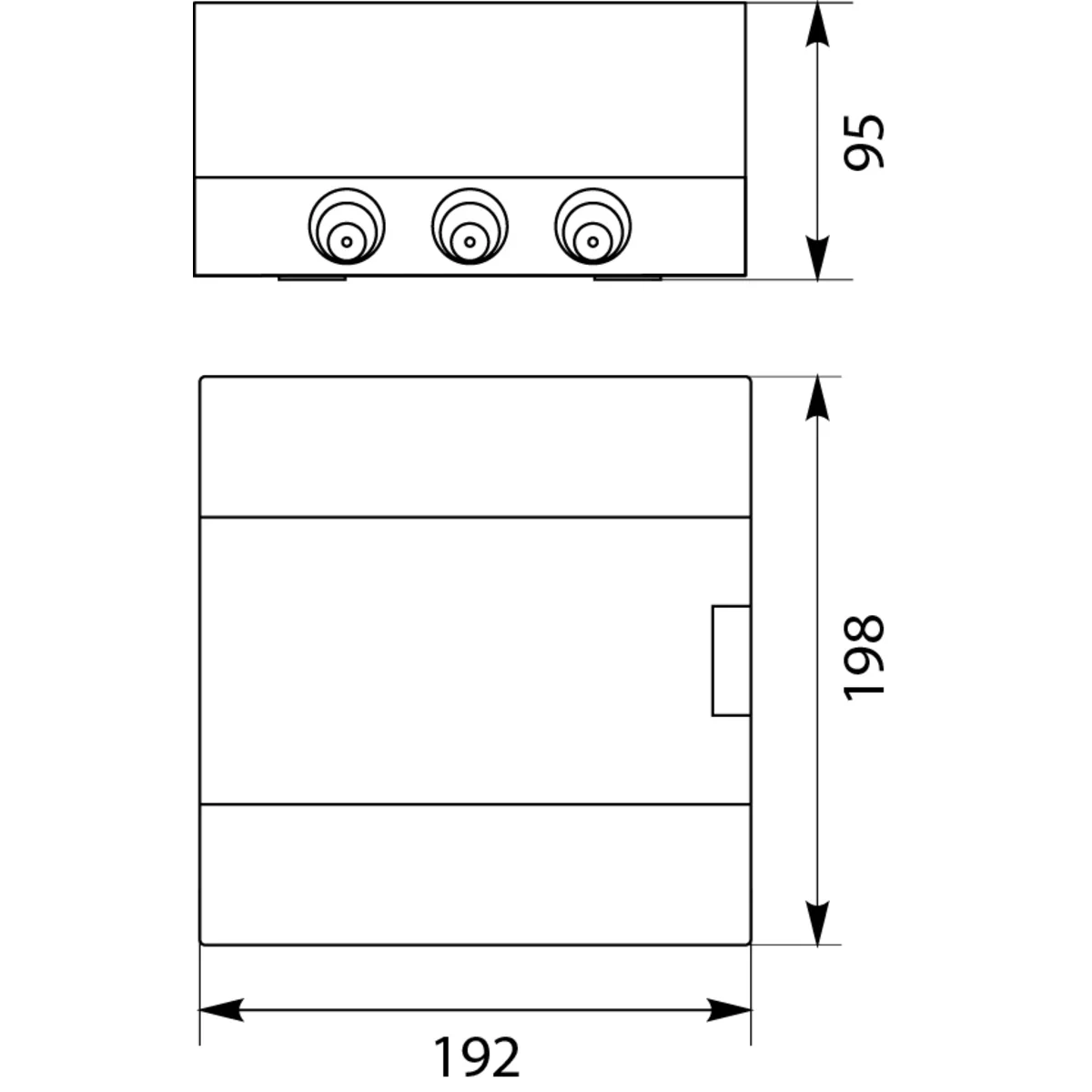

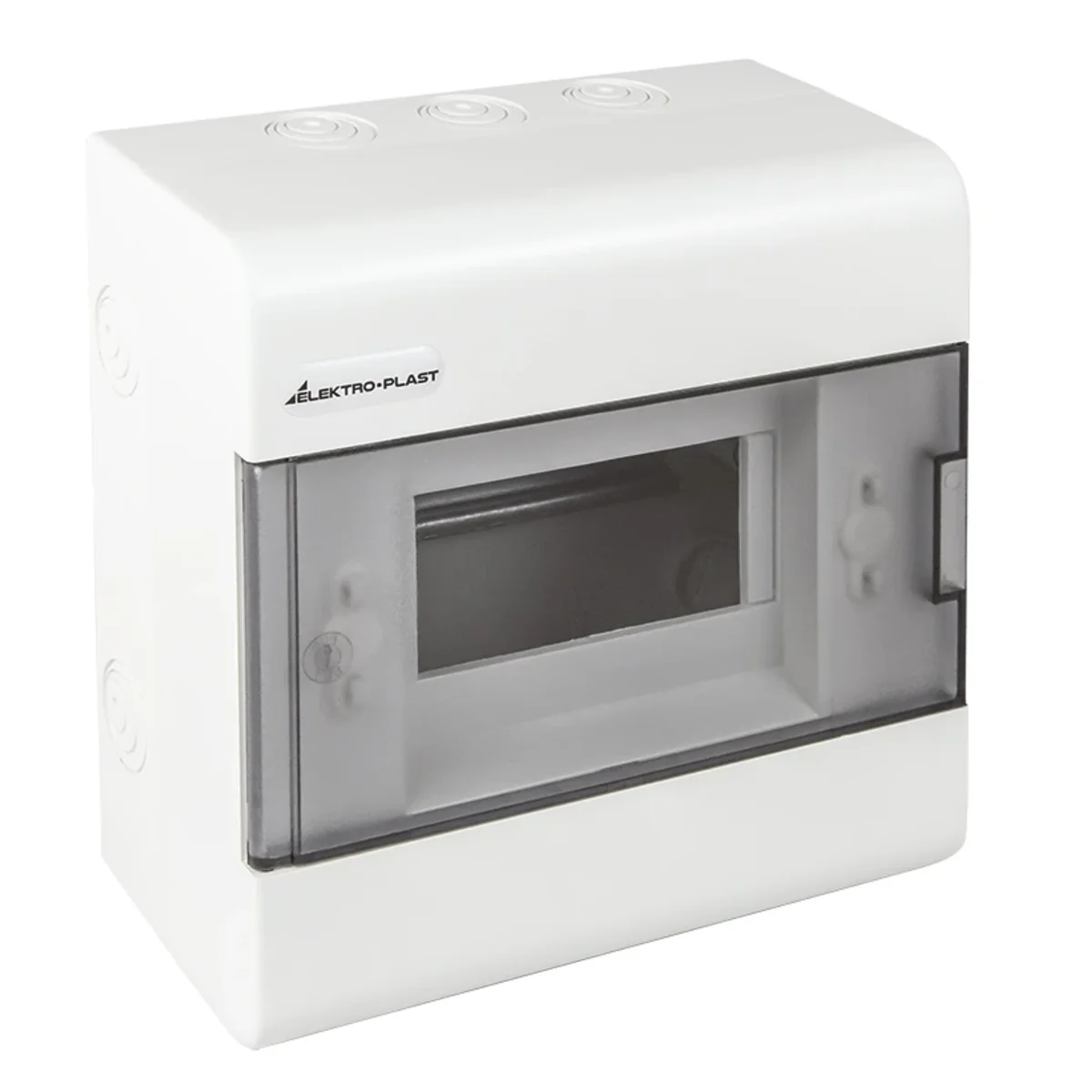

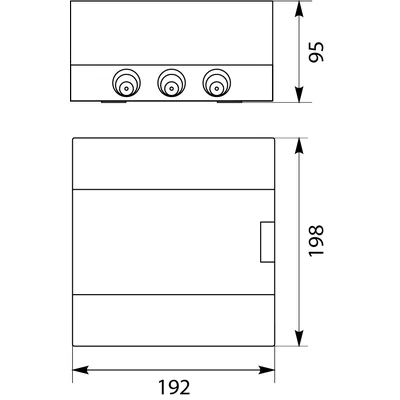

Modular switchboards 1 row 6 mod. n/t IP40 SRn-6 1.1 should be installed on plaster, indoors only. These devices are commonly used by professional electricians and installers to assemble modular equipment and protect it. The closed structure allows the described accessory to be sealed. In addition, there are embossments in the side walls, which facilitate the introduction of cables inside. Our online store offers a 1-row 6mod modular switchgear. n/t IP40 SRn-6 1.1 by Elektroplast Opatówek. This brand is known in the electrical industry for reliable, durable products with excellent performance parameters. The switchgear is equipped with N+PE type terminal strips and a TH rail enabling the installation of apparatus. Up to 6 apparatus modules can be mounted on one row of the described product. The manufacturer guarantees the degree of protection IP 40. The switchgear is white and its dimensions are 192 x 198 x 95 mm.

Technical data

  • Depth [mm]
    95
  • Color
    White
  • Width [mm]
    192
  • Accurate color
    White
  • Number of modules
    6
  • Installation
    On the TH-35 rail
  • Height [mm]
    198
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    6
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    192 mm
  • Built-in depth
    0 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    198 mm
  • Depth
    95 mm
  • Inner depth
    90 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,572 0,076
Width (m) - 0,106
Length (m) - 0,196
Depth (m) - 0,202
