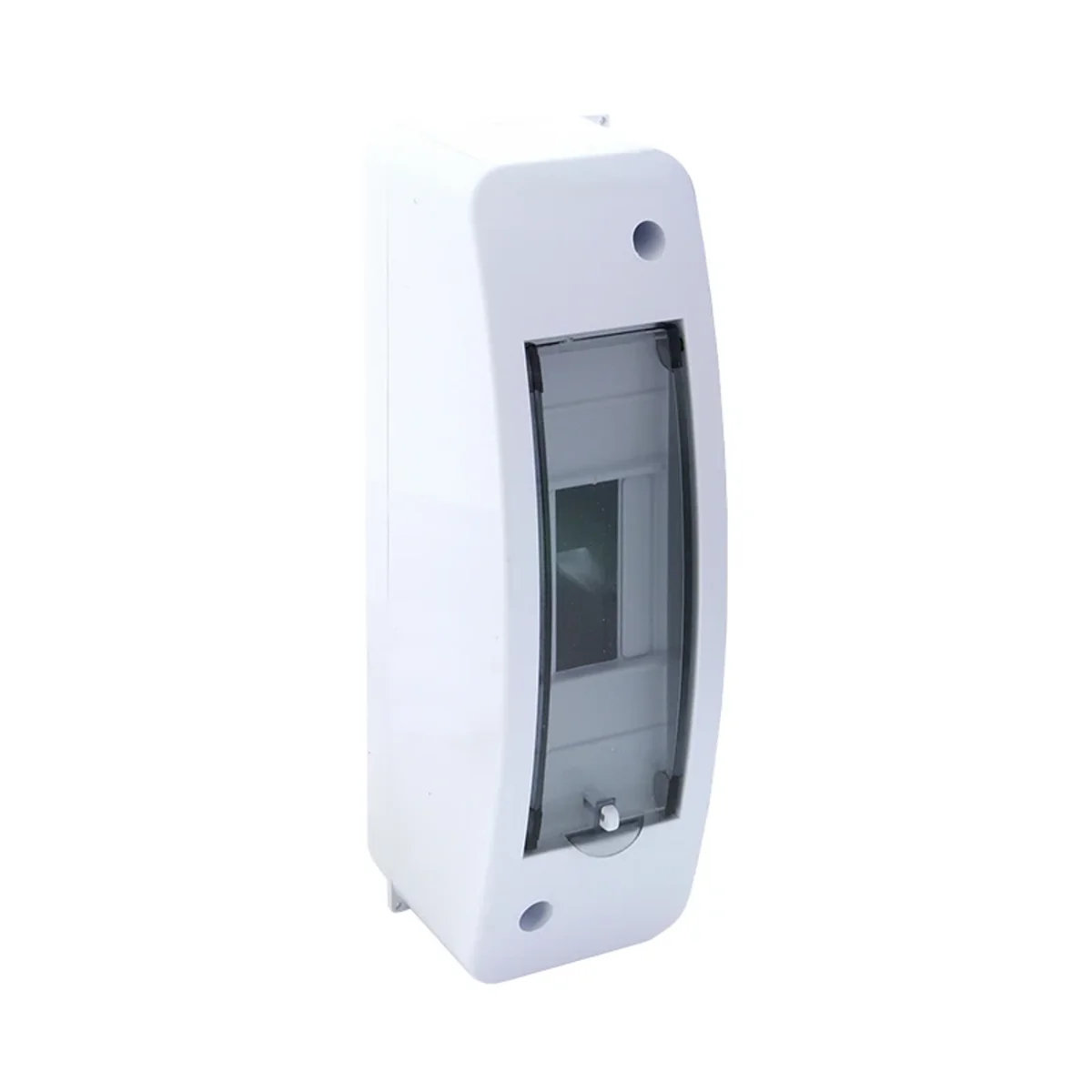

Surface-mounted switchgear - RNTO 2S 4.1

local index:
RIR001ELOP
Catalog No:
4.1
EAN code:
5903978376304
Depth [mm]: 84
Width [mm]: 62
Height [mm]: 198
Price:
2,21 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. Switchboards are provided with descriptive labels. The mounting element in the switchgear is the TH 35/7.5 bracket (Eurorail), which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons.

Technical data

  • Depth [mm]
    84
  • Height [mm]
    198
  • Width [mm]
    62
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    2
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    62 mm
  • Built-in depth
    0 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    198 mm
  • Depth
    88 mm
  • Inner depth
    0 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,164 0,036
Width (m) - 0,062
Length (m) - 0,202
Depth (m) - 0,090
