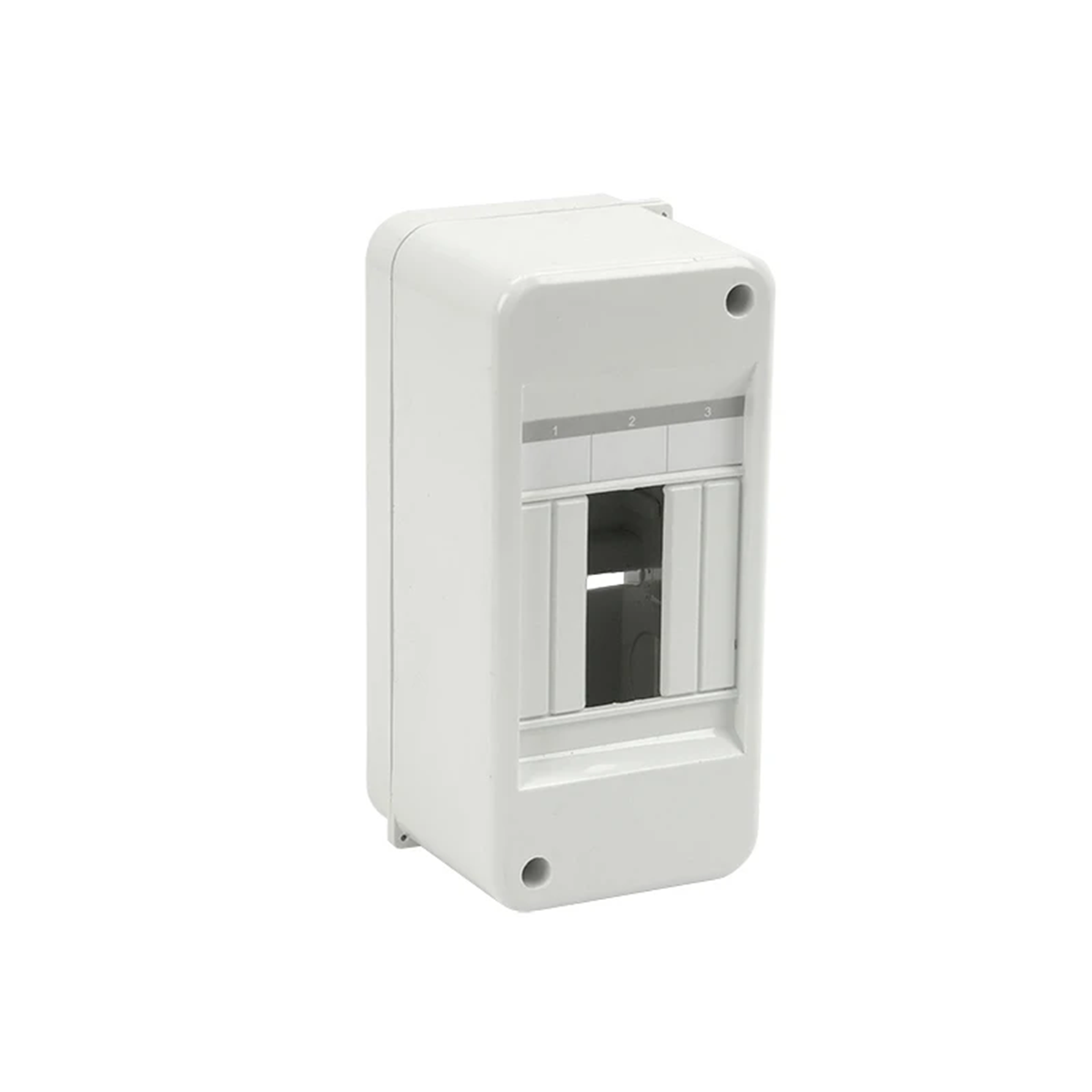

Surface-mounted switchgear - RNO 3 5.2

local index:
RIR012ELOP
Catalog No:
5.2
EAN code:
5903978376076
Depth [mm]: 67
Number of modules: 3
Width [mm]: 66
Price:
1,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 64 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing, they have embossments for easy insertion of cables or installation pipes. According to the applicable standards, switchgears should be placed on flame-retardant walls by suitably qualified persons.

Technical data

  • Depth [mm]
    67
  • Width [mm]
    66
  • PKWIU
    27.12.31.0
  • Number of modules
    3
  • Height [mm]
    140

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    3
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    66 mm
  • Built-in depth
    67 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP30
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    None
  • Transparent cover/door
    No
  • Height
    140 mm
  • Depth
    67 mm
  • Inner depth
    0 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,090 -
