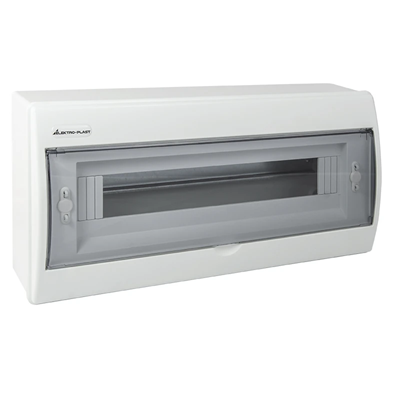

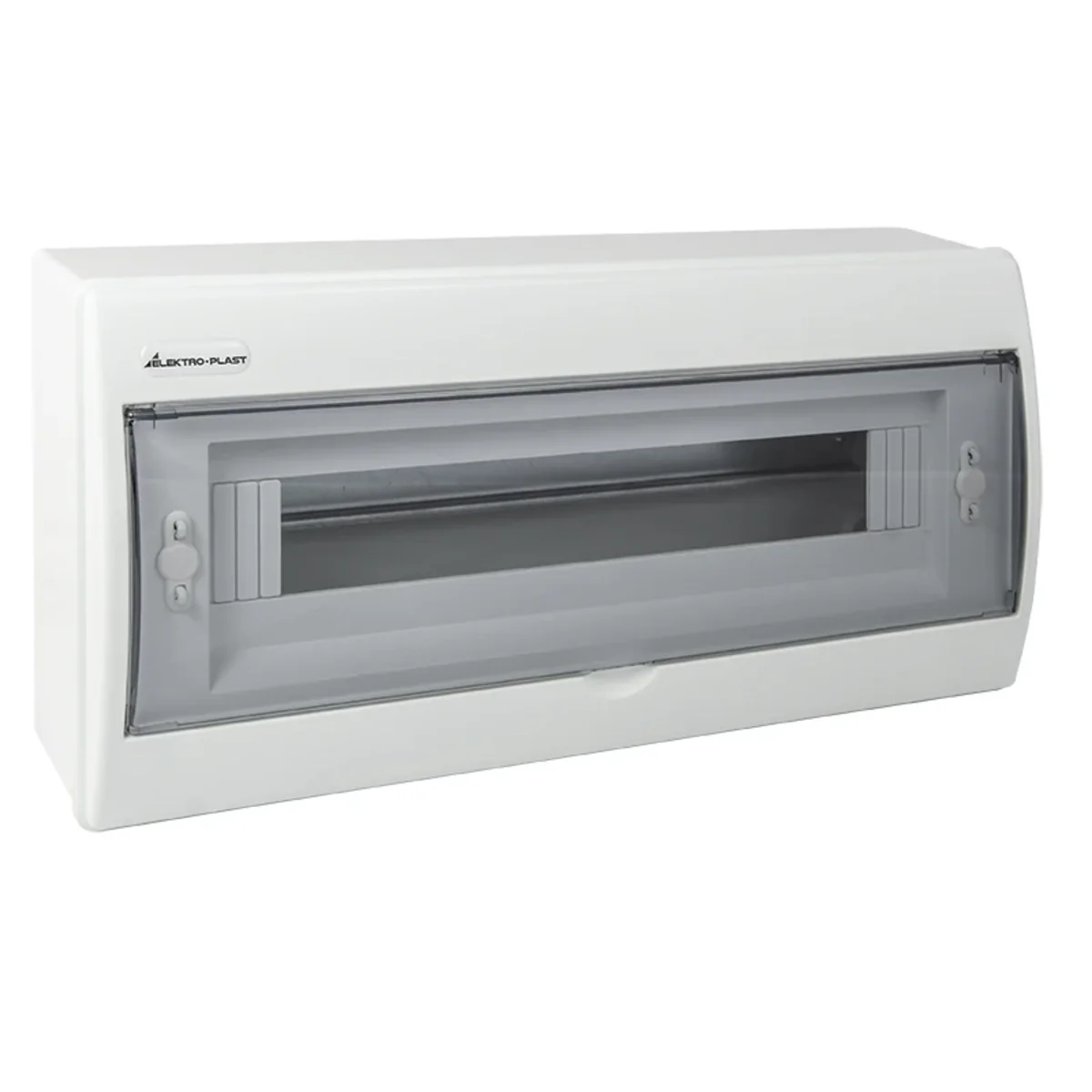

Surface-mounted switchgear RN-18 Fala (N+PE) 7.7

Index local:
RIR019ELOP
Numéro de catalogue:
7.7
Code EAN:
5905548280592

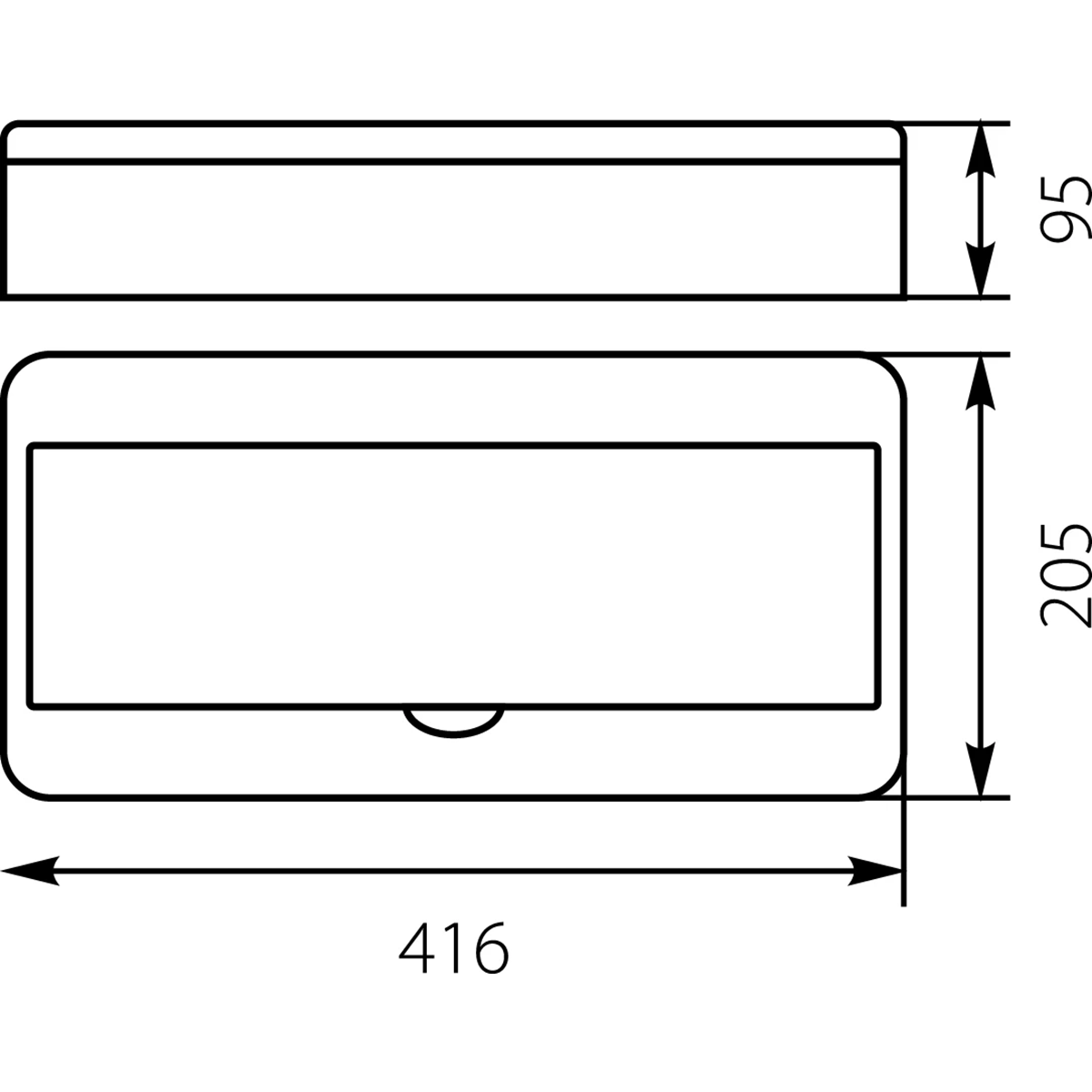

Depth [mm]: 95
Number of modules: 18
Width [mm]: 416
Prix:
17,98 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Accessible 46 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7, 5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons

Données techniques

  • Depth [mm]
    95
  • Width [mm]
    416
  • PKWIU
    27.12.31.0
  • Number of modules
    18
  • Height [mm]
    205

Autres données techniques

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    18
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    416 mm
  • Built-in depth
    0 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    205 mm
  • Depth
    95 mm
  • Inner depth
    0 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Détails du fabricant

  • Producteur
    Z.P.H. ELEKTRO-PLAST Sp. z o.o.
  • Adresse
    62-860 Opatówek Rogatka 14 Polska

Emballage en vrac

Une sorte de paquet Sztuka
Quantité 1 pcs. 1 pcs.
poids (kg) 1,100 -
