Surface-mounted switchgear RN-12 Fala (N+PE) 7.3

Indeks lokalny:
RIR015ELOP
Nr katalogowy:
7.3
Kod EAN:
5905548280578
Depth [mm]: 95
Number of modules: 12
Width [mm]: 311
Cena:
12,41 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
Dostępne 89 szt.
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7, 5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons

Dane techniczne

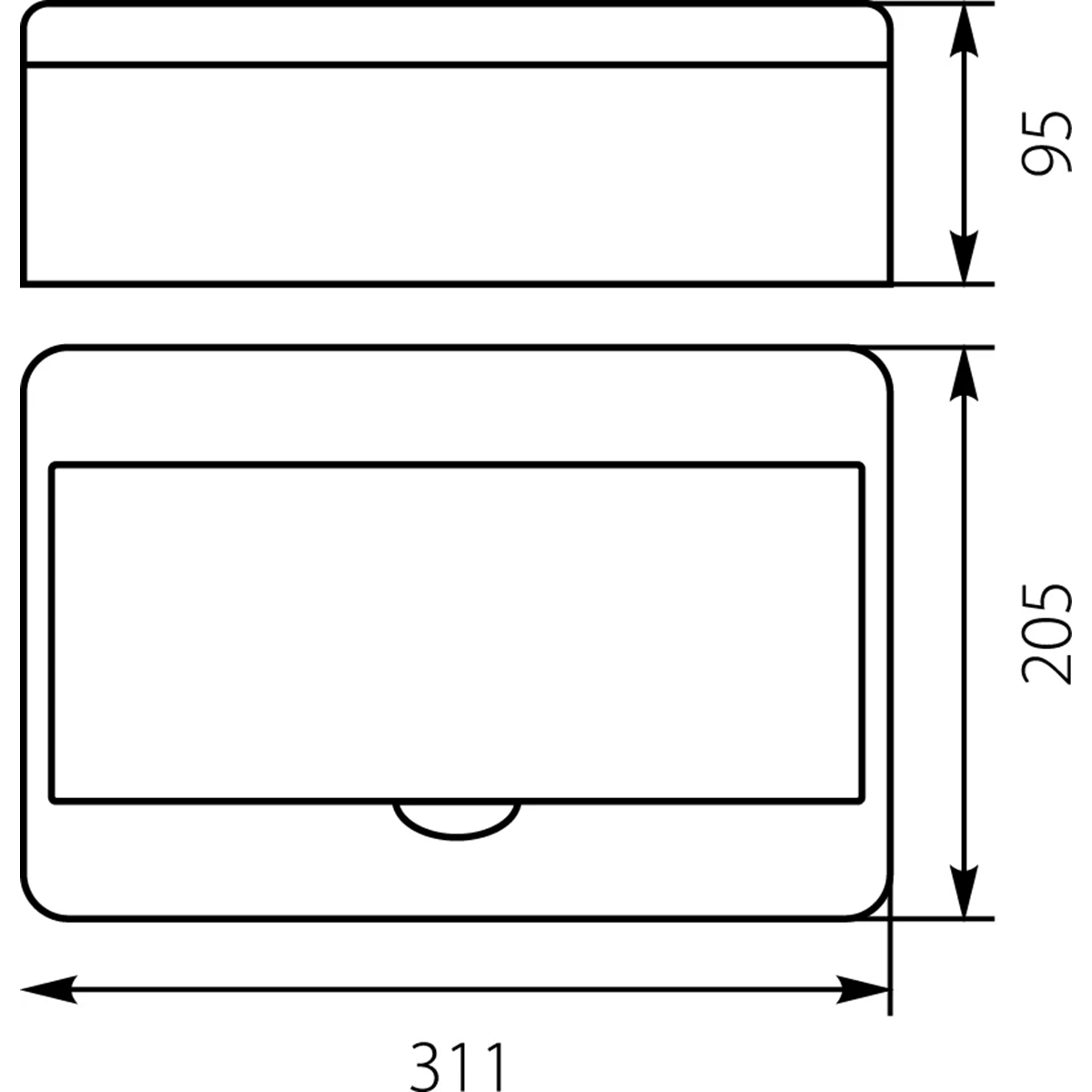

  • Depth [mm]
    95
  • Width [mm]
    311
  • PKWIU
    27.12.31.0
  • Number of modules
    12
  • Height [mm]
    205

Pozostałe dane techniczne

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    311 mm
  • Built-in depth
    0 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    205 mm
  • Depth
    95 mm
  • Inner depth
    0 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Dane producenta

  • Producent
    Z.P.H. ELEKTRO-PLAST Sp. z o.o.
  • Adres
    62-860 Opatówek Rogatka 14 Polska

Opakowania zbiorcze

Rodzaj opakowania Sztuka
Ilość 1 szt. 1 szt.
Waga (kg) 0,800 -
Szerokość (m) - 101,000
Długość (m) - 310,000
Głębokość (m) - 205,000
