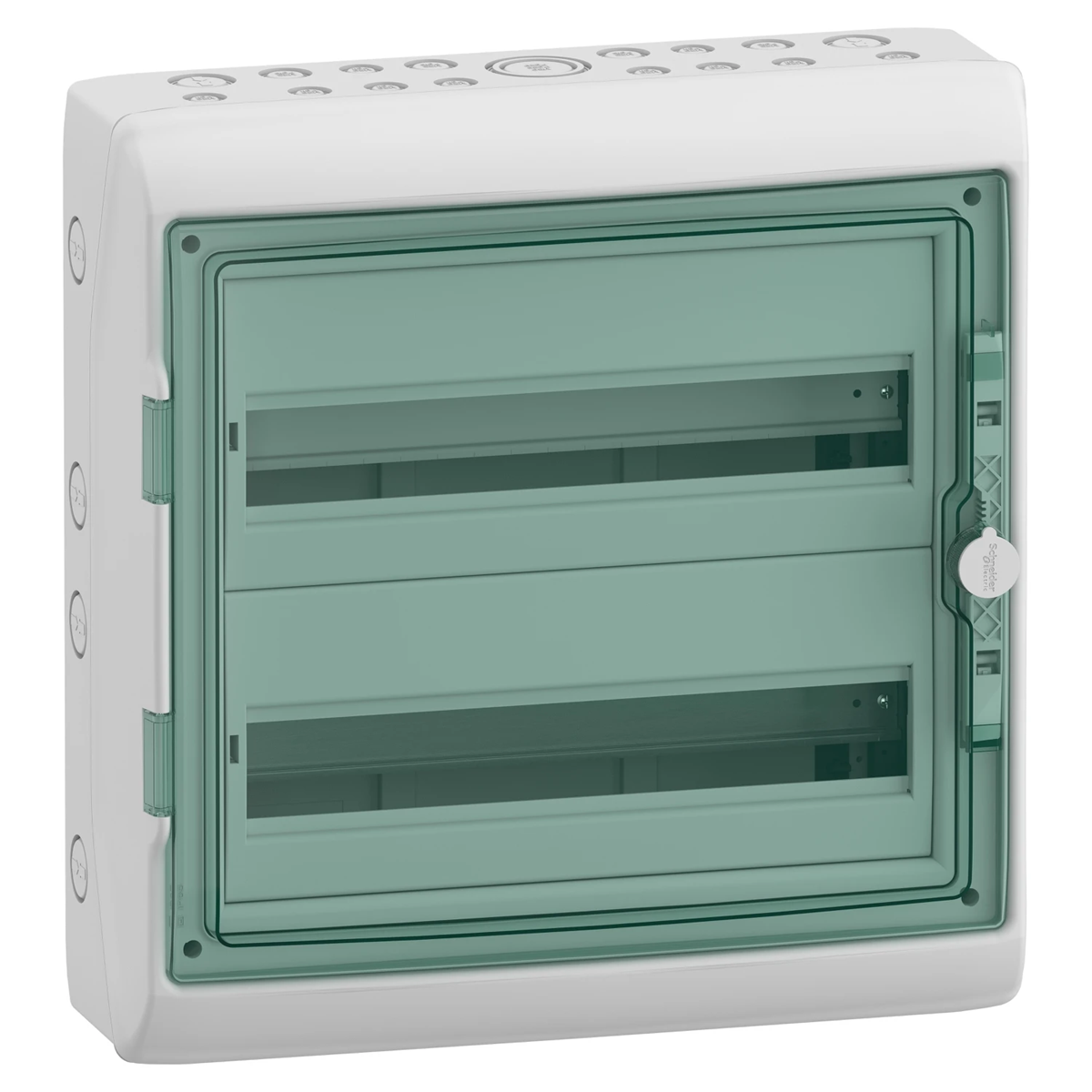

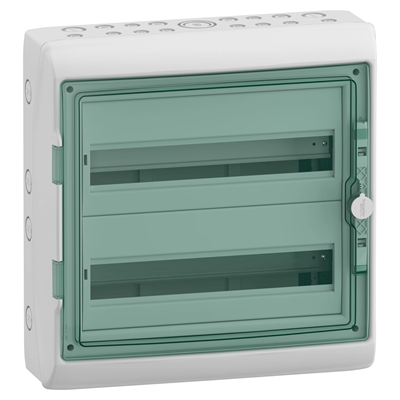

Surface-mounted housing Mureva (former Kaedra) IP65 MRV-2-18-NT-T transparent door 2 rows 18 modules/row 13434

Index local:
RIH037SCHN
Numéro de catalogue:
13434
Code EAN:
3303430134343
Prix:
100,05 €
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Accessible 6 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Données techniques

Autres données techniques

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    18
  • Cover model
    Closed
  • Housing material
    Plastic
  • Width
    448 mm
  • Inner depth
    88 mm
  • Neutral terminal block
    Yes
  • With mounting plate
    No
  • EMC-version
    No
  • RAL-number
    7035
  • With lock
    No
  • Signal passing door
    Yes
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    Yes
  • Height
    460 mm
  • Depth
    160 mm
  • Earthing terminal block
    Yes
  • DIN-rail
    Yes
  • Extension possible
    Yes
  • Colour
    Grey
  • Degree of protection (IP)
    IP65
  • Type of closure
    Other

Détails du fabricant

  • Producteur
    "SCHNEIDER ELECTRIC POLSKA" SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
  • Adresse
    02-673 UL. KONSTRUKTORSKA 12
  • Numéro identifiant TVA
    5220011965
