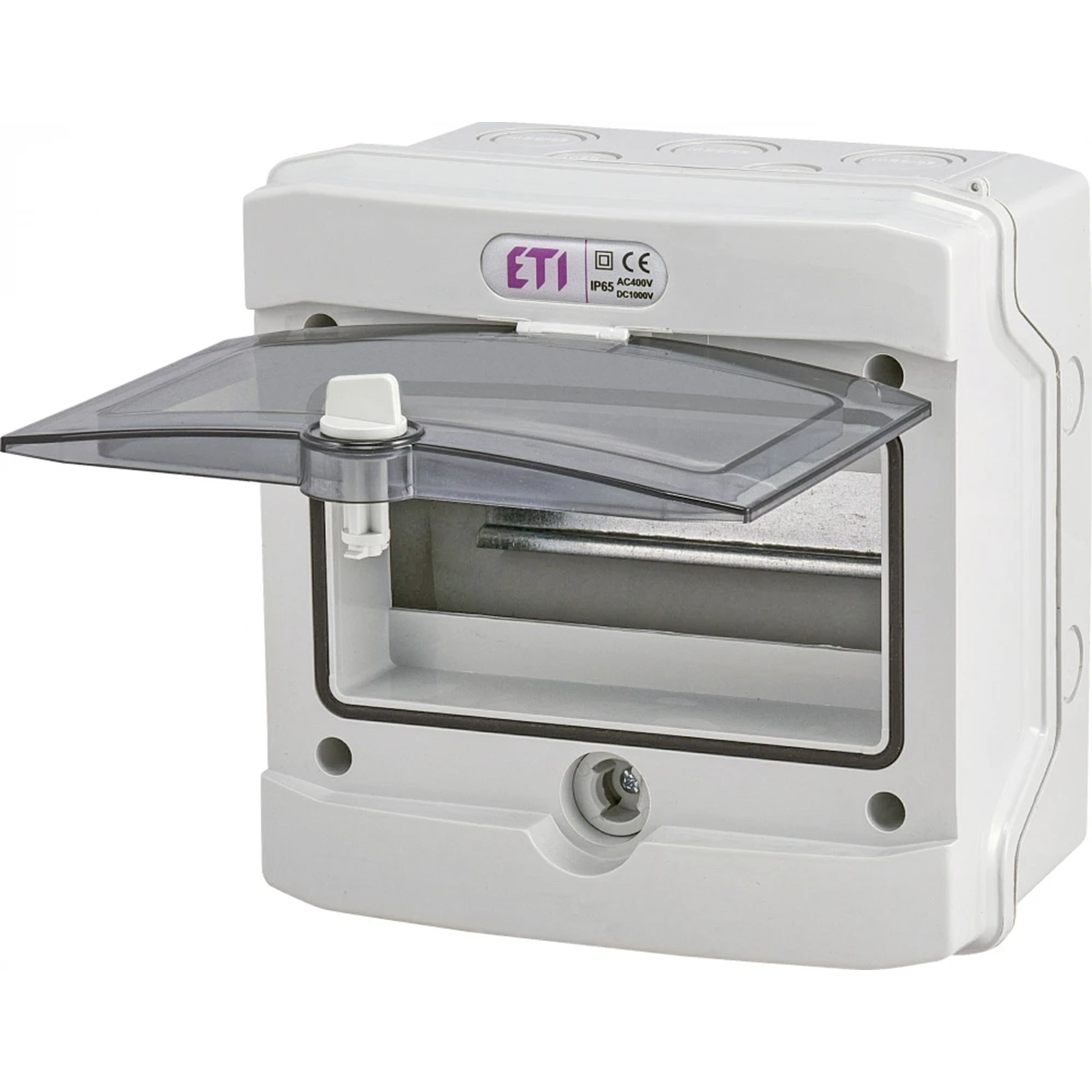

Surface-mounted housing 8 mod. IP65 transparent door ECH-8G 001101061

local index:
RIH002ETIP
Catalog No:
001101061
EAN code:
3838895551737
Manufacturer: ETI POLAM
Protection class: II
Color: Gray
Rated voltage [V]: 400
Price:
24,42 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 7 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Application - Hermetic surface-mounted switchgears are used in residential and industrial construction for the assembly of modular equipment to ensure the appropriate degree of protection of the equipment (IP 65) against moisture and other contaminants.
Advantages:
→ protection class IP65,
→ modern design, aesthetic appearance,
→ adjustable depth of mounting rail
TH35
→ completeness of execution (complete with clamps
N/PE)
→ UV resistance
→ high mechanical strength,
→ ribbing for chokes
→ can be equipped with a lock with a key
→ ease and speed of assembly

Technical data

  • Protection class
    II
  • Rated voltage [V]
    400
  • Level of security
    IP65
  • Weight [kg]
    0.680
  • Accurate color
    Gray (RAL 7035)
  • Color
    Gray
  • Mechanical resistance
    IK07
  • Working temperature [°C]
    from -25 to +60
  • PE/N terminals
    2014-08-08 00:00:00
  • PKWIU
    27.12.40.0

Other technical data

  • Number of rows
    1
  • Housing material
    Plastic
  • Width
    202 mm
  • DIN-rail
    Yes
  • Colour
    Grey
  • Degree of protection (IP)
    IP65
  • Width in number of modular spacings
    8
  • Height
    201 mm
  • Depth
    120 mm
  • EMC-version
    Yes
  • RAL-number
    7035
