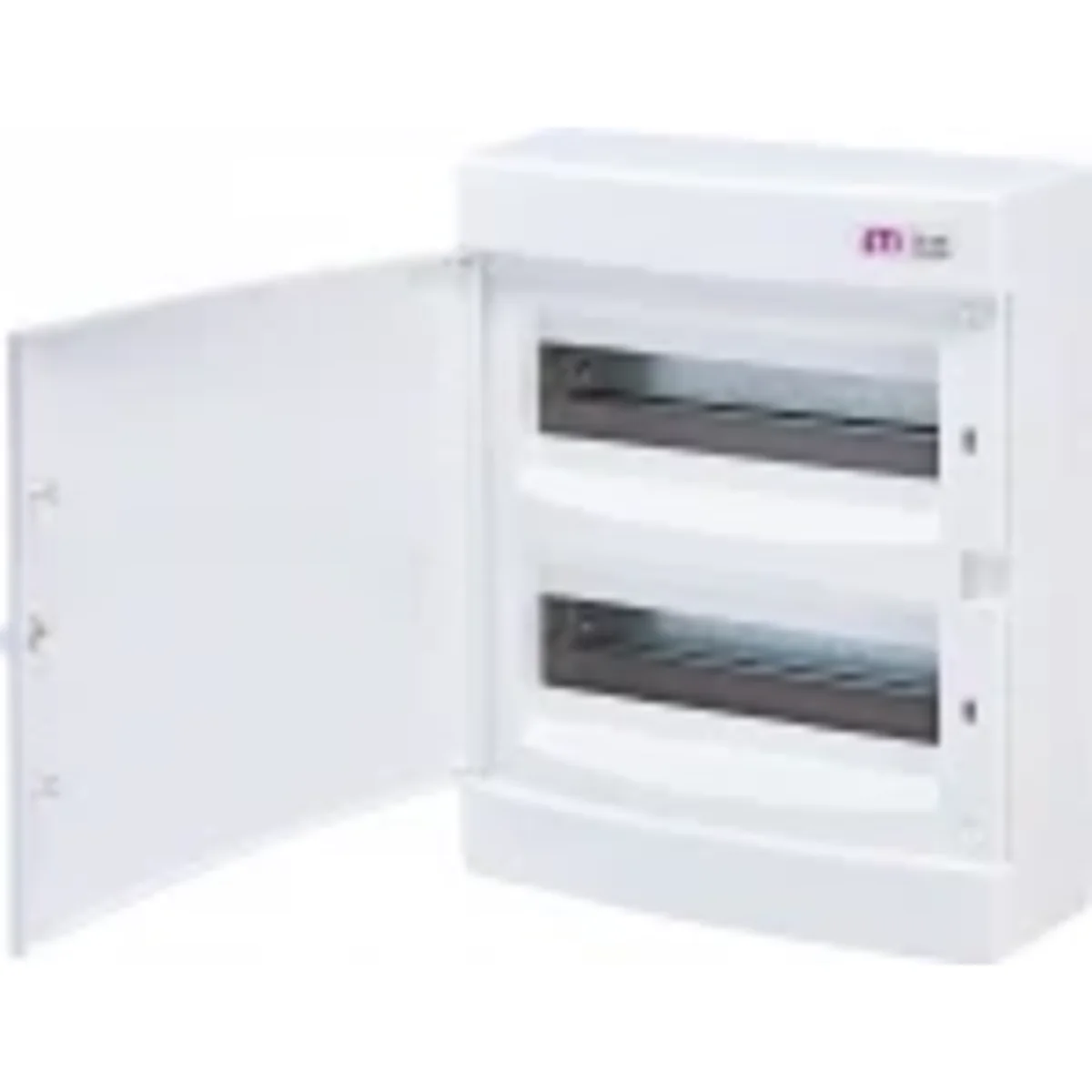

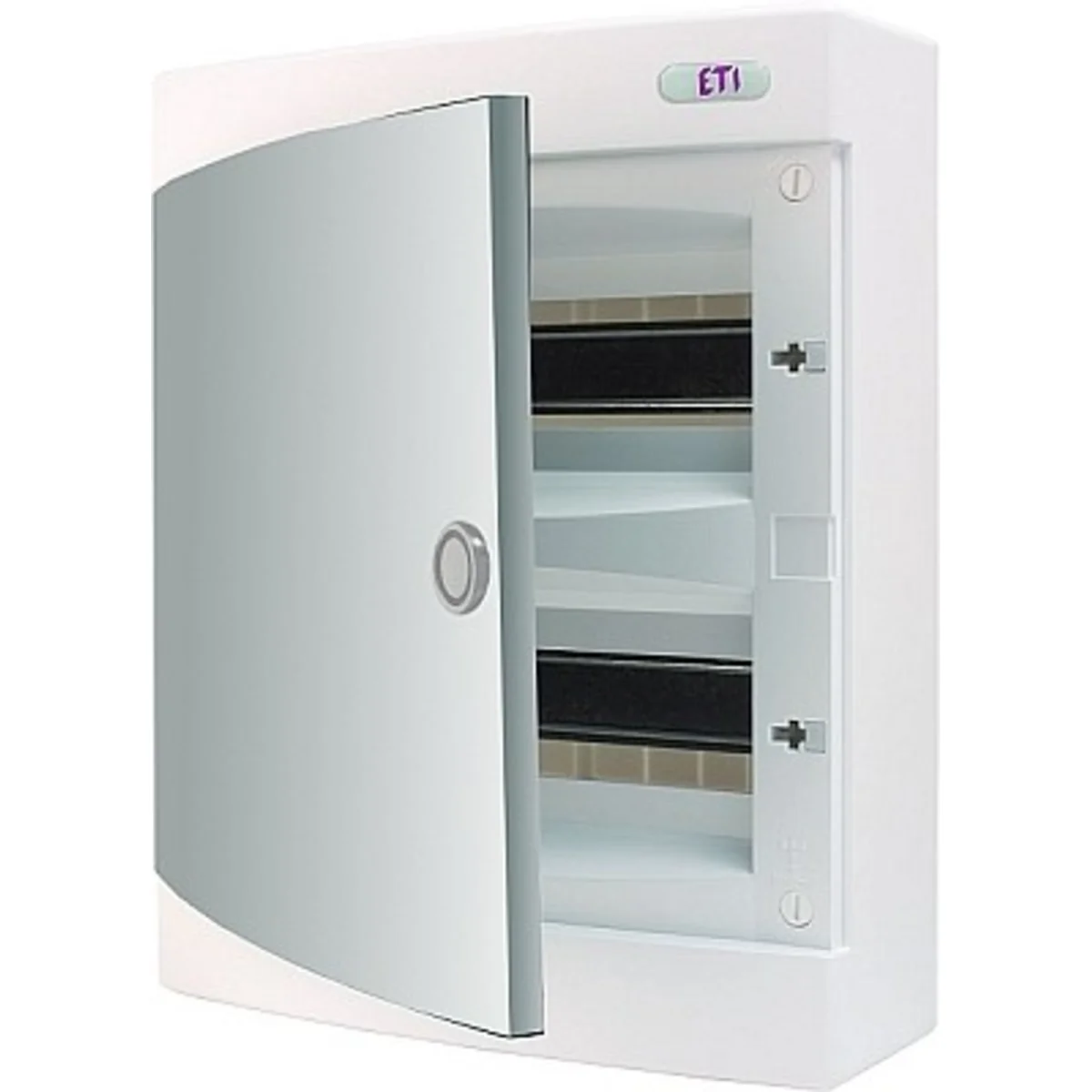

Surface-mounted housing 24 mod. white door ECT24PO-s 001101072
local index:
RIR108ETIP
Catalog No:
001101072
EAN code:
3838895571353
Price:
25,04 €
gross / pcs.
(including VAT 23%)
17,39 € gross/kg.
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Construction: The switchgear is made of highly stable ABS thermoplastic mass with very good dielectric and mechanical properties. Its main advantages are: attractive, aesthetic, modern appearance, ease and speed of assembly.
The main elements of the switchgear are:
- bottom casing equipped with a TH35 mounting rail, PE and N terminals
- the front wall is equipped with quick-assembly pins (to be connected to the bottom casing) and a door (white or transparent).
The main elements of the switchgear are:
- bottom casing equipped with a TH35 mounting rail, PE and N terminals
- the front wall is equipped with quick-assembly pins (to be connected to the bottom casing) and a door (white or transparent).
Technical data
-
Protection classII
-
Level of securityIP40
-
Weight [g]1440
-
AC rated voltage [V]400
-
Housing materialABS
-
Working temperature [°C]from -20 to +70
-
PE/N terminals15/2x7
-
PKWIU27.12.40.0
Other technical data
-
Number of rows2
-
Housing materialPlastic
-
Width287 mm
-
DIN-railYes
-
ColourWhite
-
Width in number of modular spacings12
-
Height361 mm
-
Depth112 mm
-
EMC-versionYes
-
Degree of protection (IP)IP40
Manufacturer details
-
ManufacturerETI-POLAM Sp. z o.o.
-
Address06-100 Pułtusk Jana Pawła II 18
-
E-mail
-
Tax identification number5681370113
-
GLN5909000467408
