Surface-mounted housing 12 mod. transparent door ECT12PT 001101001

local index:
RIR002ETIP
Catalog No:
001101001
EAN code:
3838895456568
Manufacturer: ETI POLAM
Protection class: II
Housing material: ABS
Level of security: IP40
Price:
18,47 €
gross / pcs.
(including VAT 23%)
19,44 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

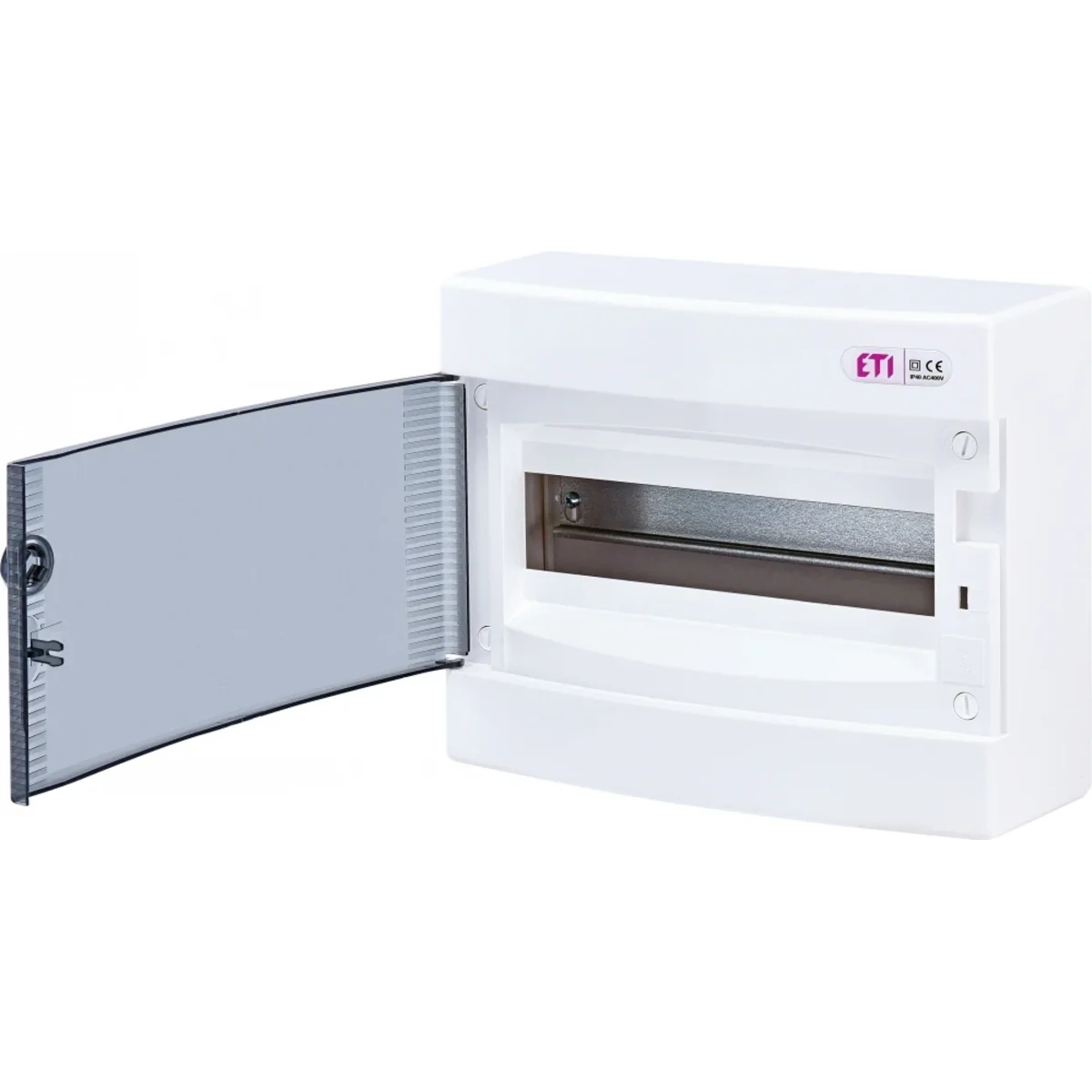

Construction: The switchgear is made of highly stable ABS thermoplastic mass with very good dielectric and mechanical properties. Its main advantages are: attractive, aesthetic, modern appearance, ease and speed of assembly.
The main elements of the switchgear are:
- bottom casing equipped with a TH35 mounting rail, PE and N terminals
- the front wall is equipped with quick-assembly pins (to be connected to the bottom casing) and a door (white or transparent).

Technical data

  • Protection class
    II
  • Level of security
    IP40
  • Weight [g]
    950
  • AC rated voltage [V]
    400
  • Housing material
    ABS
  • Working temperature [°C]
    from -20 to +70
  • PE/N terminals
    2014-10-10 00:00:00
  • PKWIU
    27.12.40.0

Other technical data

  • Number of rows
    1
  • Housing material
    Plastic
  • Width
    287 mm
  • DIN-rail
    Yes
  • Colour
    White
  • Width in number of modular spacings
    12
  • Height
    236 mm
  • Depth
    112 mm
  • EMC-version
    Yes
  • Degree of protection (IP)
    IP40
