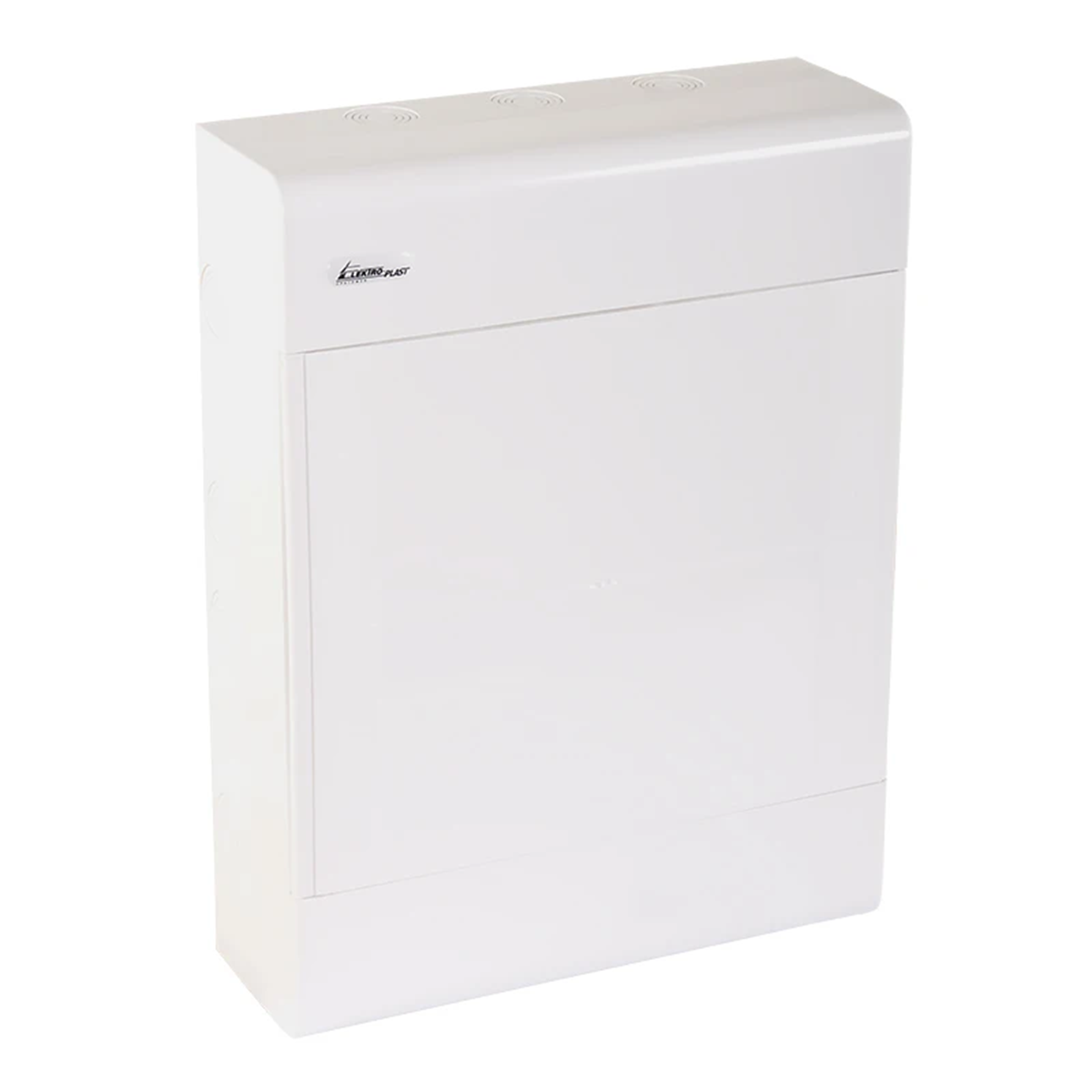

Surface-mounted distribution box SRn-24/B (N+PE) 1.16

local index:
RIR008ELOP
Catalog No:
1.16
EAN code:
5905548285443
Depth [mm]: 95
Color: White
Width [mm]: 298
Price:
20,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Switchboards are made of high quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing, they have embossing for easy insertion of wires or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7.5 (Eurorail) bracket, which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. In accordance with the applicable standards, switchboards must be placed on flame retardant walls by suitably qualified persons.
* special versions, combined
B –door in frame color, white

Technical data

  • Depth [mm]
    95
  • Width [mm]
    298
  • Accurate color
    White
  • Color
    White
  • Height [mm]
    397
  • PKWIU
    27.12.31.0

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    12
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    298 mm
  • Built-in depth
    0 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    White
  • Degree of protection (IP)
    IP40
  • Type of closure
    Push button
  • Number of rows
    2
  • Type of covering
    Door
  • Transparent cover/door
    No
  • Height
    397 mm
  • Depth
    95 mm
  • Inner depth
    90 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 1,600 -
