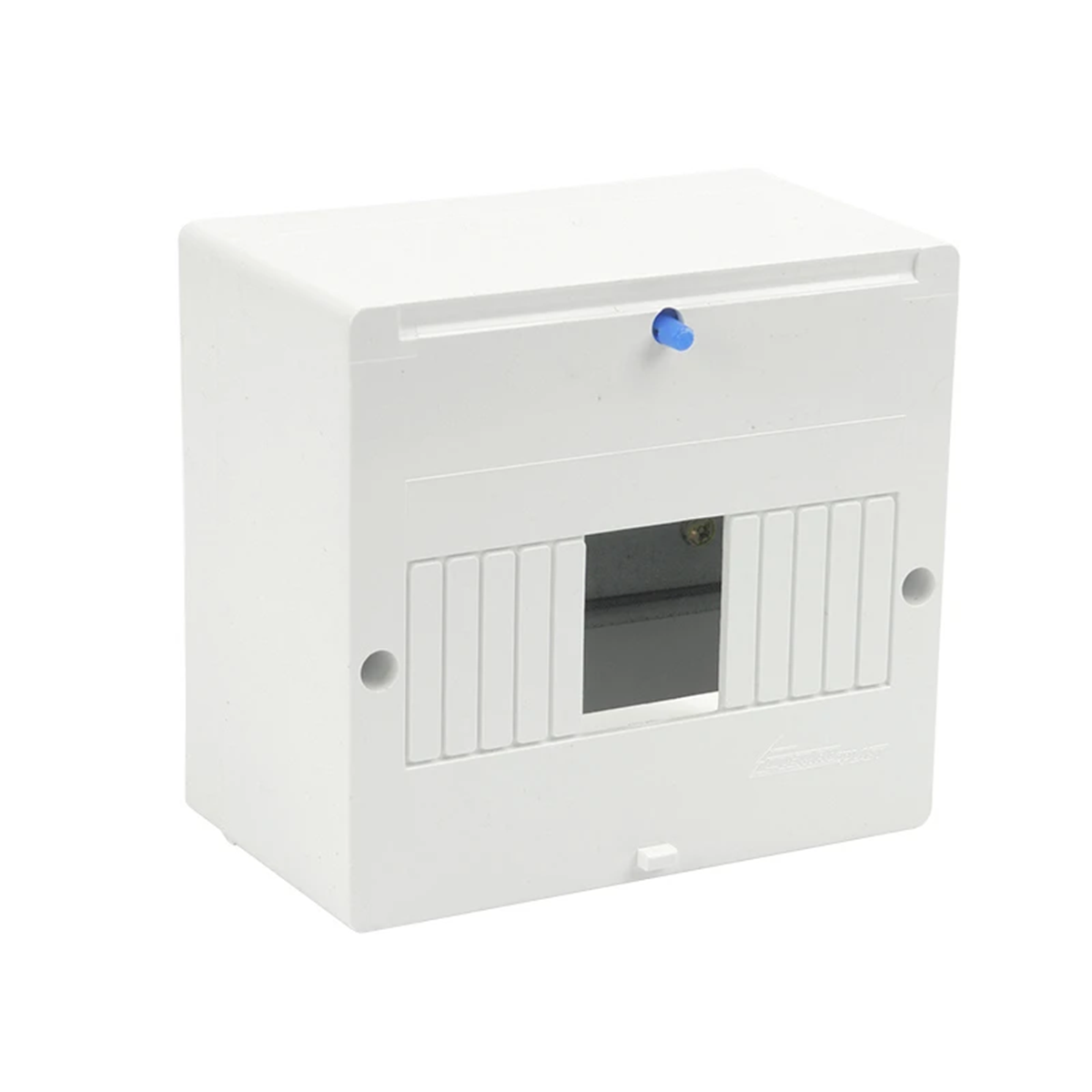

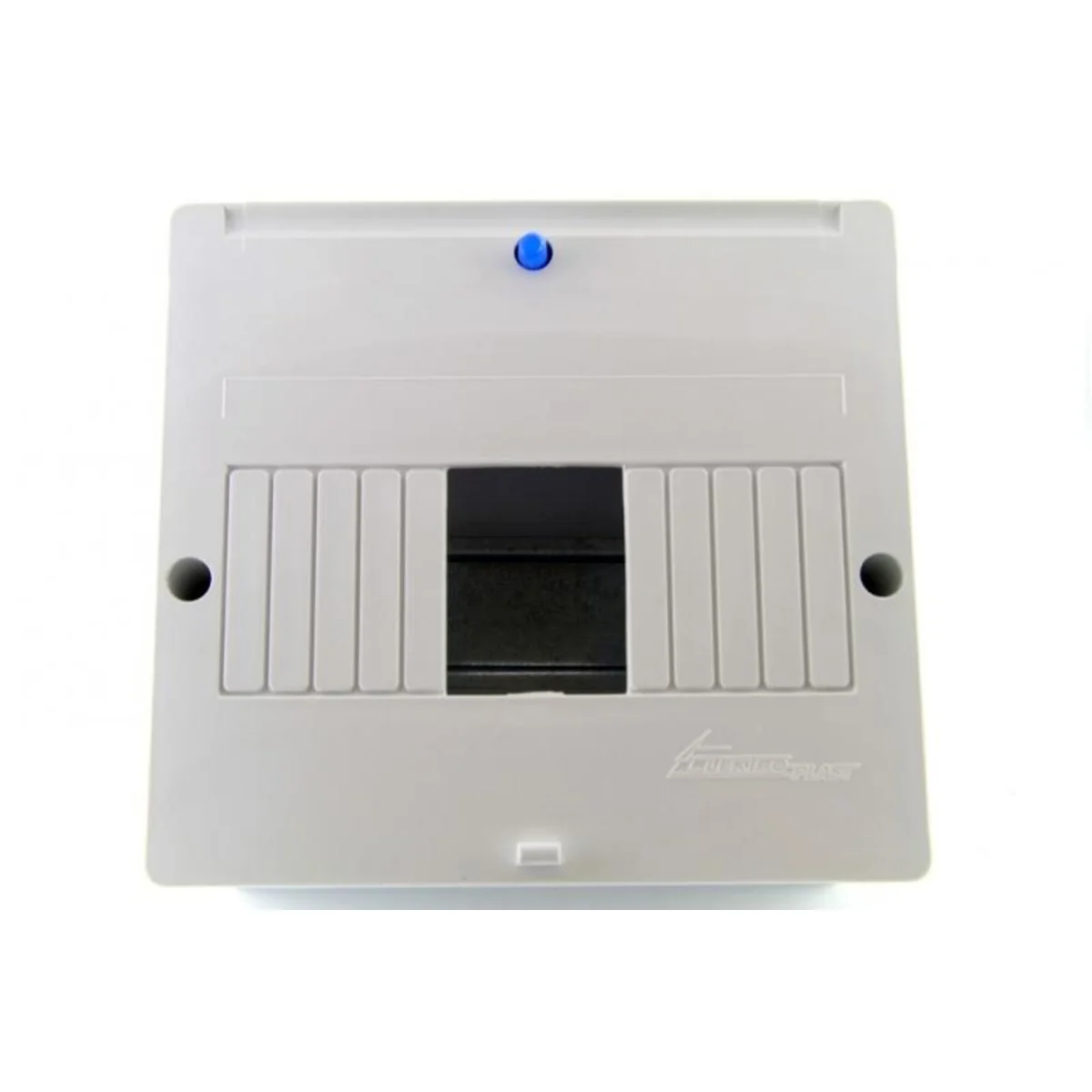

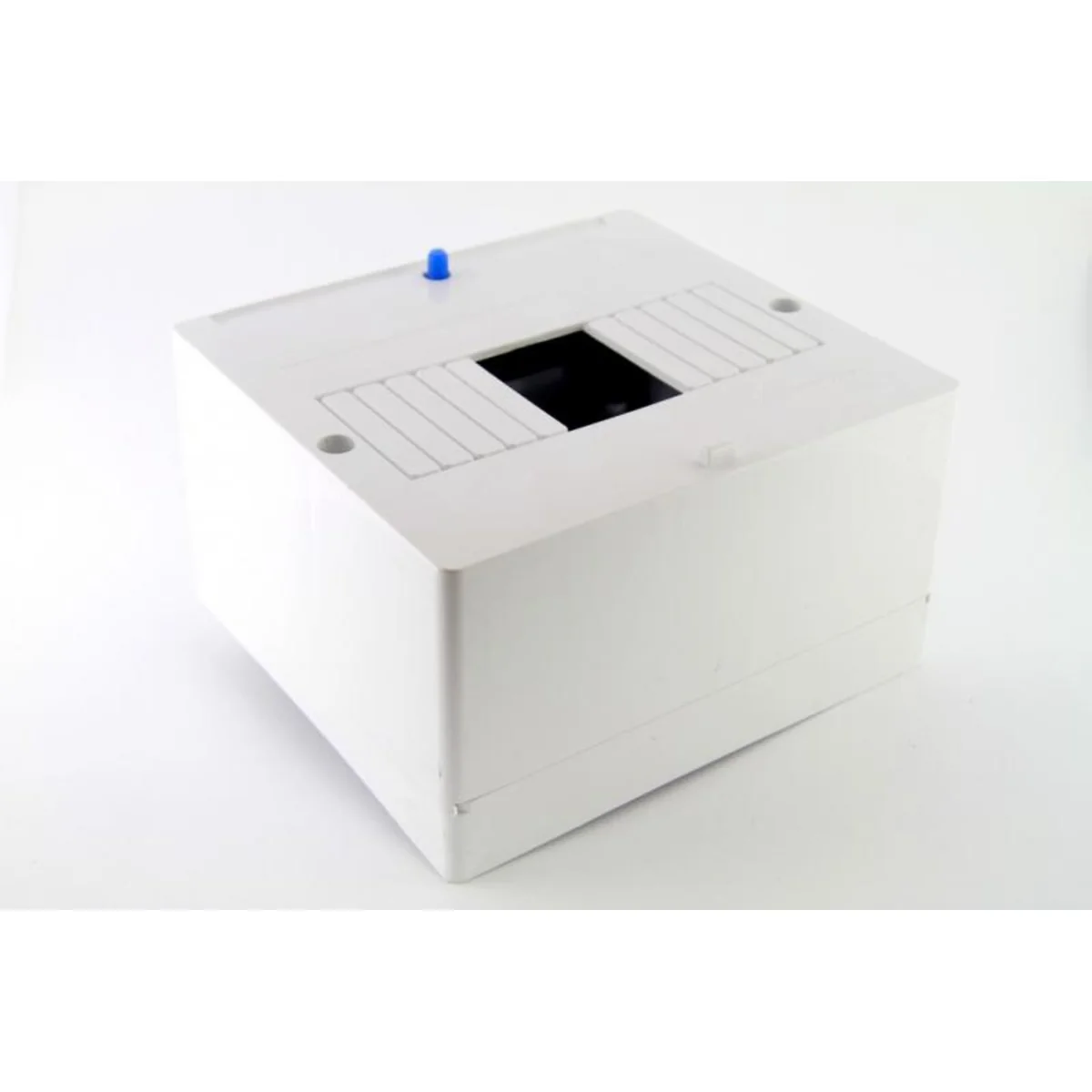

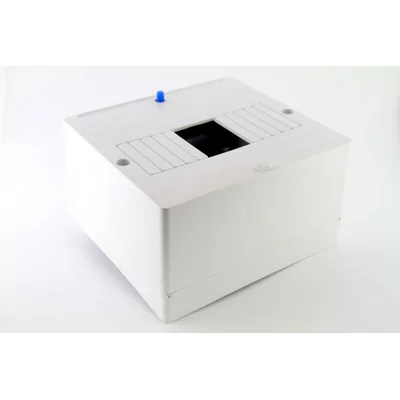

Surface-mounted distribution board RM 7S (N+PE) 6.1

local index:
RIN008ELOP
Catalog No:
6.1
EAN code:
5903978376083
Depth [mm]: 83
Number of modules: 7
Width [mm]: 153
Price:
4,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 31 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

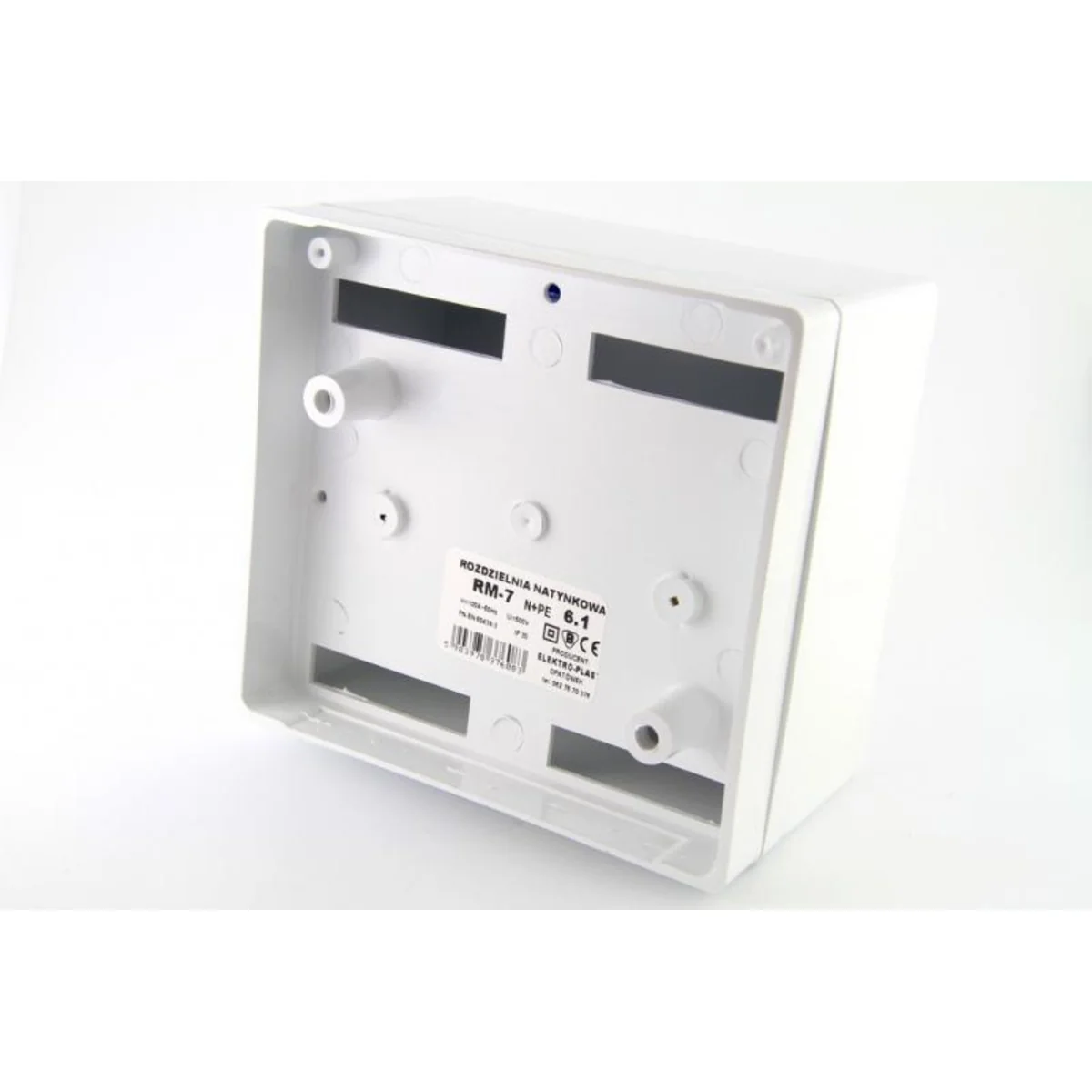

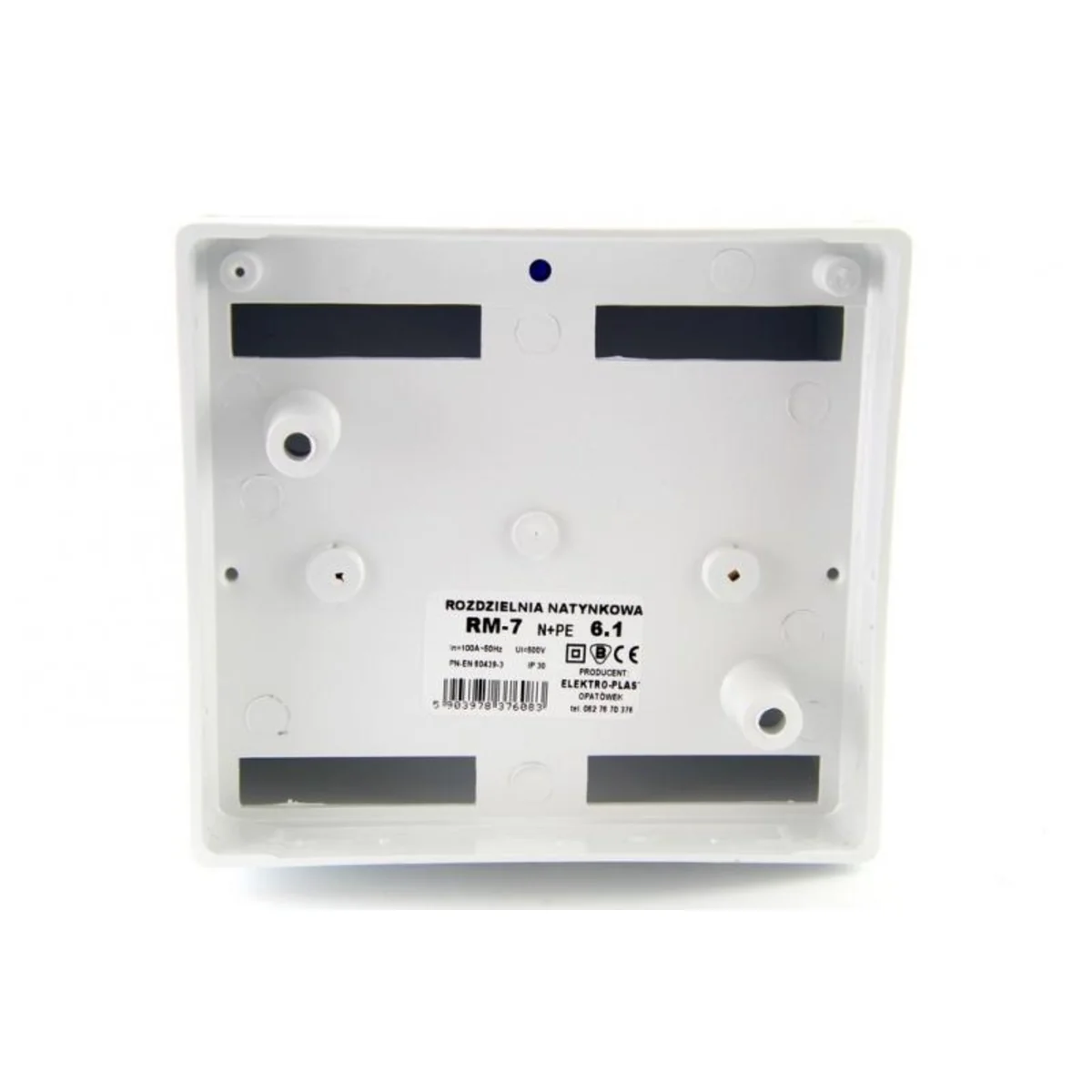

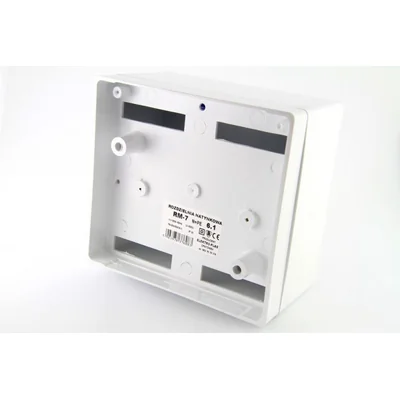

Switchboards are made of high-quality plastic. They are adapted for indoor use. The switchgears have a closed box casing and are suitable for sealing. In the side parts of the housing there are embossments for easy insertion of cables or installation pipes. Switchboards are provided with descriptive labels. They also have N+PE terminal strips. The mounting element in the switchgear is the TH 35/7.5 bracket (Eurorail), which allows the installation of overcurrent protection devices, residual current devices and other electrical devices. According to the applicable standards, switchgears should be placed on fire-retardant walls by appropriately qualified persons.

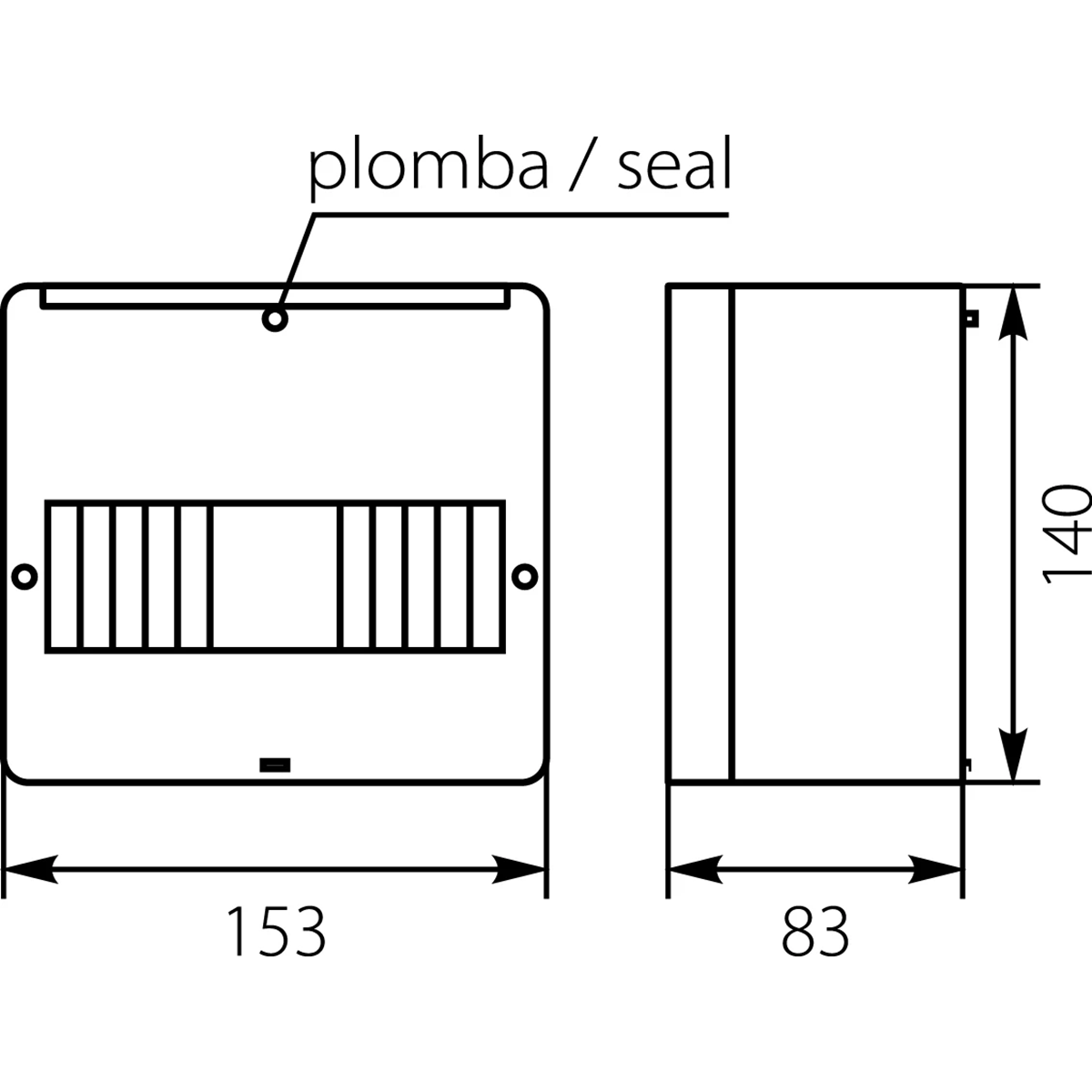

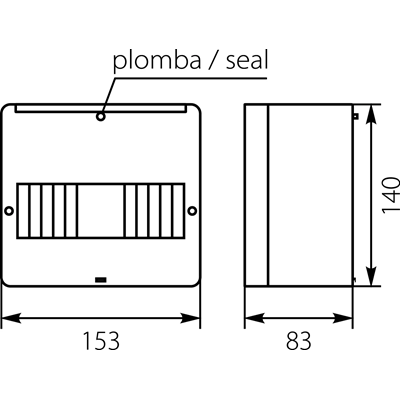

Technical data

  • Depth [mm]
    83
  • Width [mm]
    153
  • PKWIU
    27.12.31.0
  • Number of modules
    7
  • Height [mm]
    140

Other technical data

  • Mounting method
    Surface mounted
  • Width in number of modular spacings
    7
  • Cover model
    With notch
  • Housing material
    Plastic
  • Width
    153 mm
  • Built-in depth
    0 mm
  • DIN-rail
    Yes
  • Extension possible
    No
  • Colour
    Grey
  • Degree of protection (IP)
    IP30
  • Type of closure
    Push button
  • Number of rows
    1
  • Type of covering
    Cover
  • Transparent cover/door
    No
  • Height
    140 mm
  • Depth
    83 mm
  • Inner depth
    0 mm
  • With mounting plate
    No
  • EMC-version
    Yes
  • RAL-number
    9003
  • With lock
    No

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,300 -
