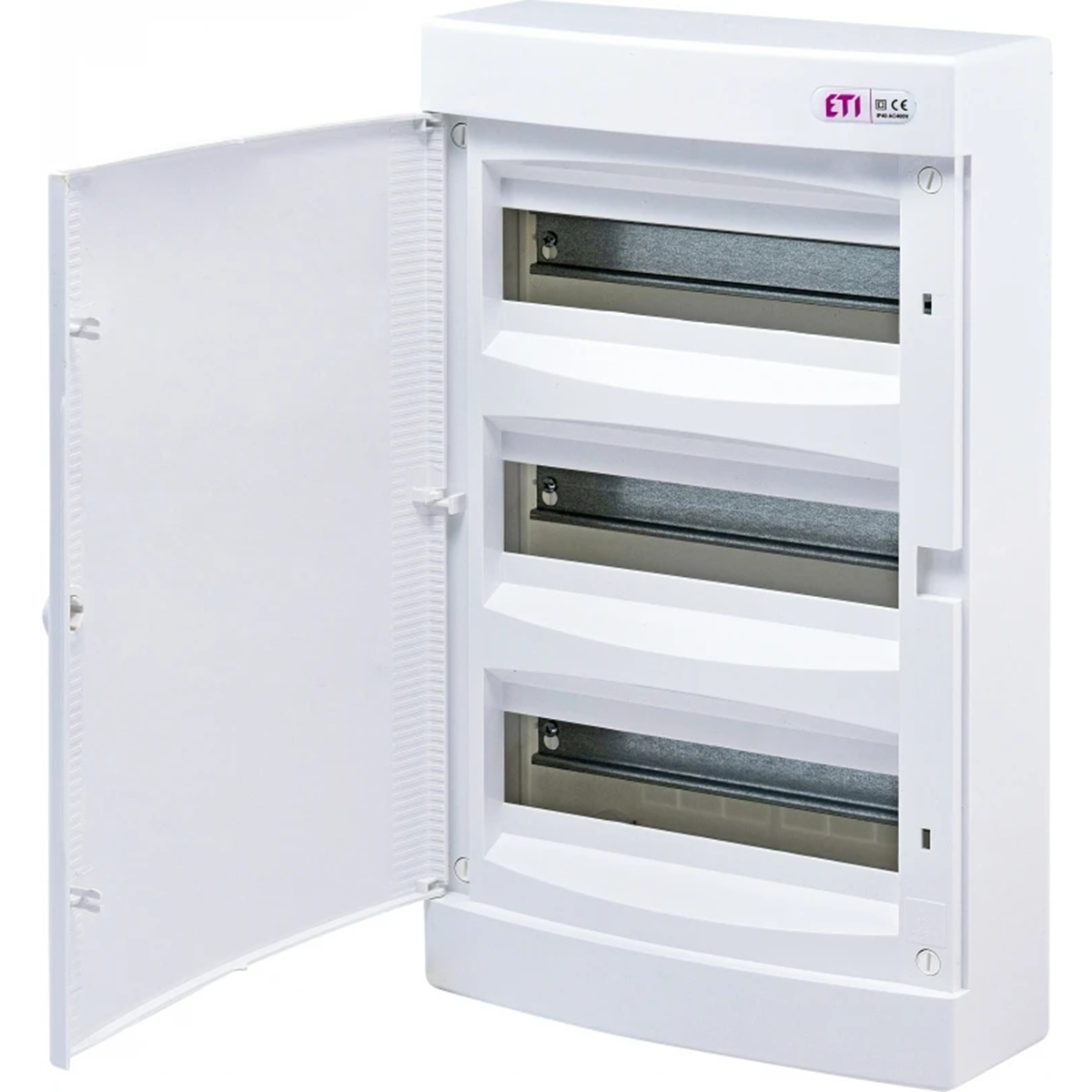

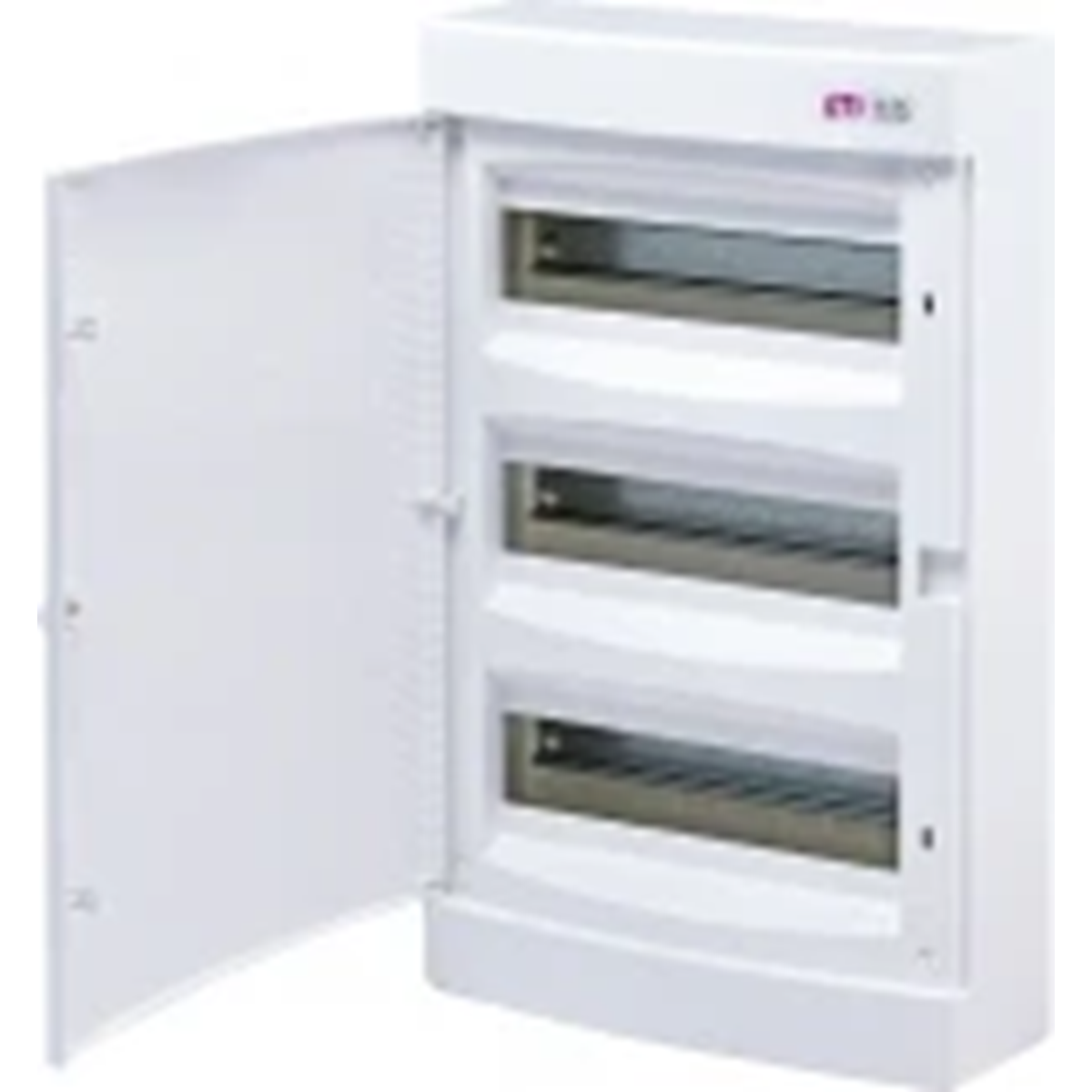

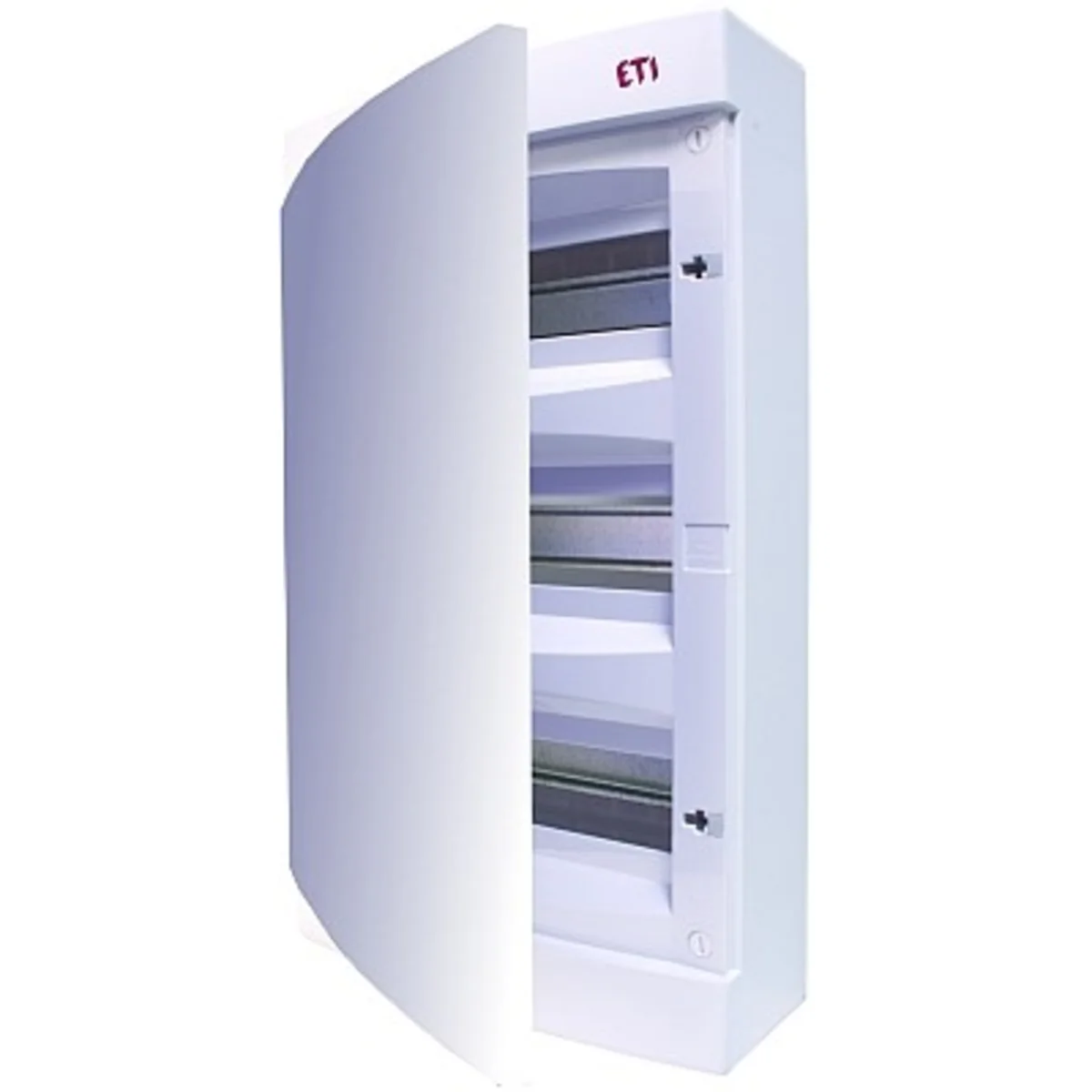

Surface-mounted distribution board 3x12 ECT36PO-S IP40 modules 001101073

local index:
RIR107ETIP
Catalog No:
001101073
EAN code:
3838895571377
Manufacturer: ETI POLAM
Depth [mm]: 112
Number of modules: 36
Number of rows: 3
Price:
33,97 €
gross / pcs.
(including VAT 23%)
17,24 € gross/kg.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Technical data:

  • type: ECT36PO-s
  • color: white
  • door: white
  • PE/N terminals: 28/4x6
  • dimensions HxWxD(mm): 482x287x112
  • degree of protection: IP40
  • second insulation class

Application:

  • surface-mounted and flush-mounted switchboards are used in residential and industrial construction for the assembly of modular equipment to ensure the appropriate level of protection of the equipment ( IP 40 )

Technical data

  • Depth [mm]
    112
  • Number of rows
    3
  • Color
    White
  • Installation
    Surface-mounted
  • Width [mm]
    287
  • Weight [g]
    1970
  • PE/N terminals
    28/4x6
  • Number of modules
    36
  • Protection class
    II
  • Housing material
    ABS
  • Level of security
    IP40
  • Working temperature [°C]
    from -20 to +70
  • Height [mm]
    482
  • PKWIU
    27.12.40.0

Other technical data

  • Number of rows
    3
  • Housing material
    Plastic
  • Width
    287 mm
  • DIN-rail
    Yes
  • Colour
    White
  • Width in number of modular spacings
    12
  • Height
    485 mm
  • Depth
    112 mm
  • EMC-version
    Yes
  • Degree of protection (IP)
    IP40
