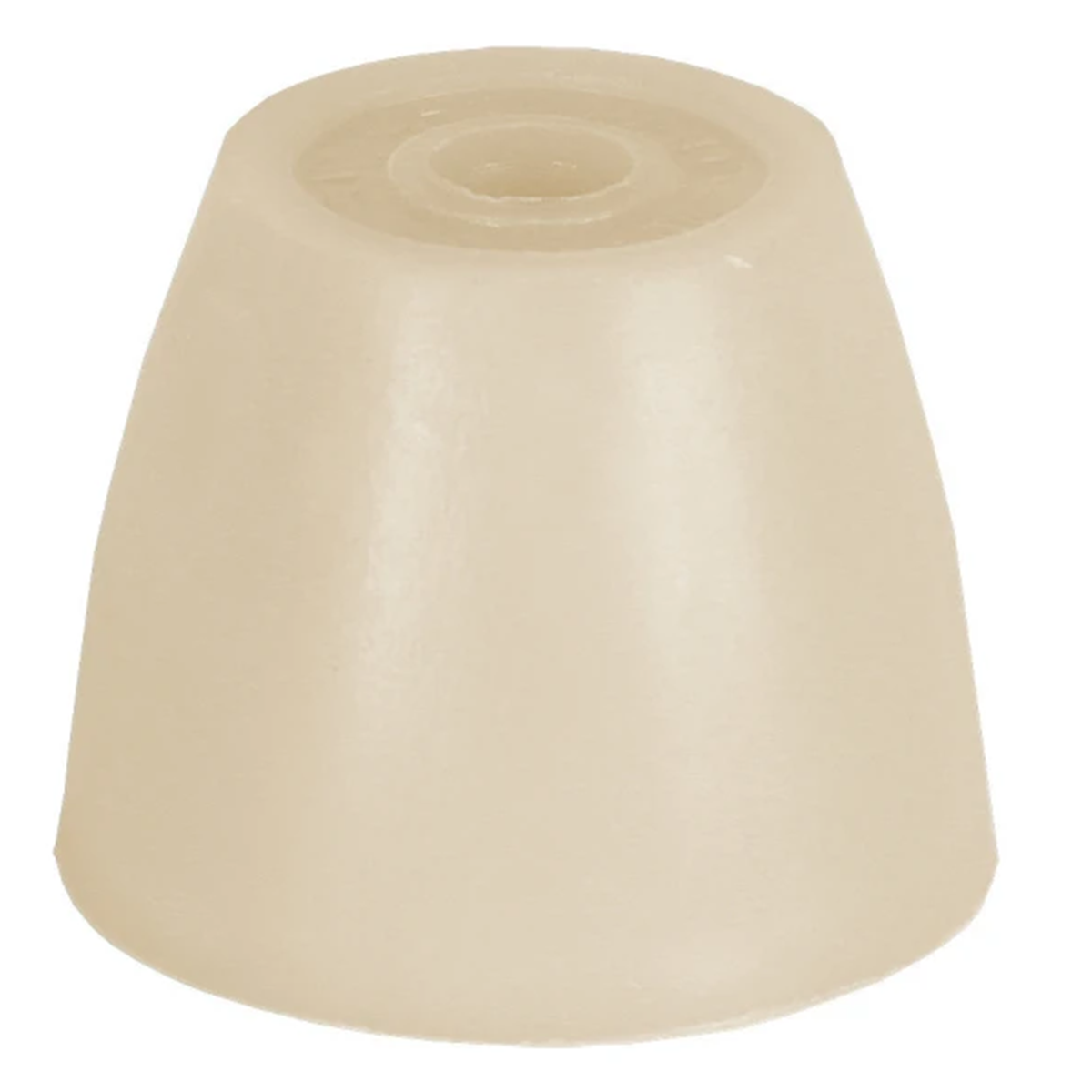

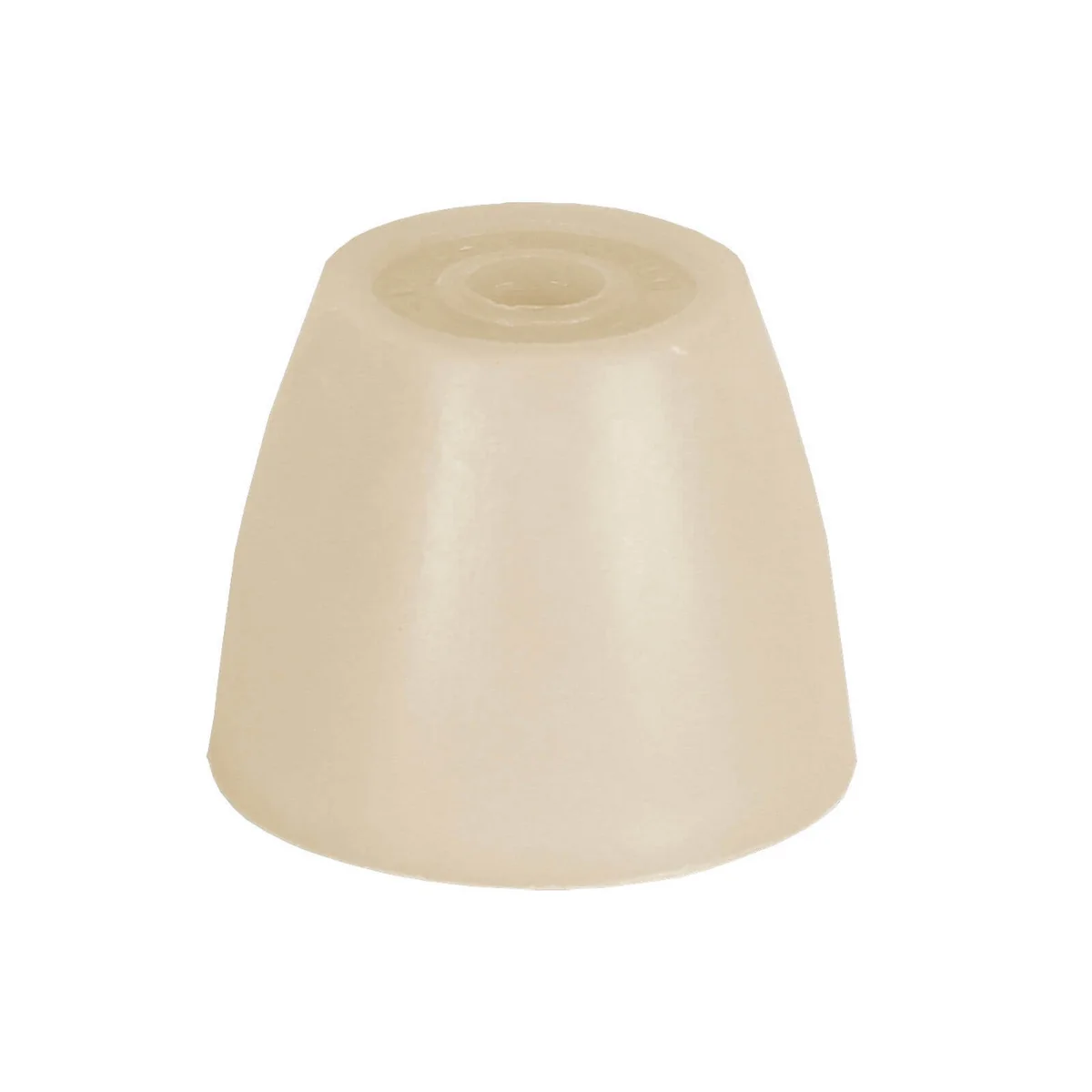

Support insulator 1kV SW-4-1 white 84327006

Simet post insulator is a product used to insulate busbars in installations and switchgear for a rated voltage of 1000 V (1 kV) and frequencies up to 100 Hz.

The insulator is white. The parameters provided by the manufacturer are as follows: the product is 40 millimeters high, its lower diameter is 50 millimeters, and the upper one is 32 millimeters. The assembly of the screw is marked with the symbol M10. The weight of the insulator is 45 grams.

The product's trade designation is SW-4-1. One collective package contains ten pieces of the article.

The support insulator belongs to the group of energy insulators, i.e. devices used in the power industry to support and insulate various types of conductive elements. Support insulators are a special group of products that are not mechanically loaded in any way. In their case, the electrodynamic forces that are released during short circuits are the most important. For this type of insulators to be effective, they must have a special construction - narrow at the top and wider at the bottom. Currently, support insulators made of silicone and resin material can be found on sale.

The Simet support insulator belongs to the group of indoor insulators. They should not be confused with overhead insulators - multi-unit apparatus, which are currently used only at the highest voltages.
