Sub-assembly for installing DIN SystemS H800 L600 modular devices FL985A

local index:
RRR322HAGE
Catalog No:
FL985A
EAN code:
3250612510023
Manufacturer: HAGER
Width [mm]: 600
Height [mm]: 800
Price:
130,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

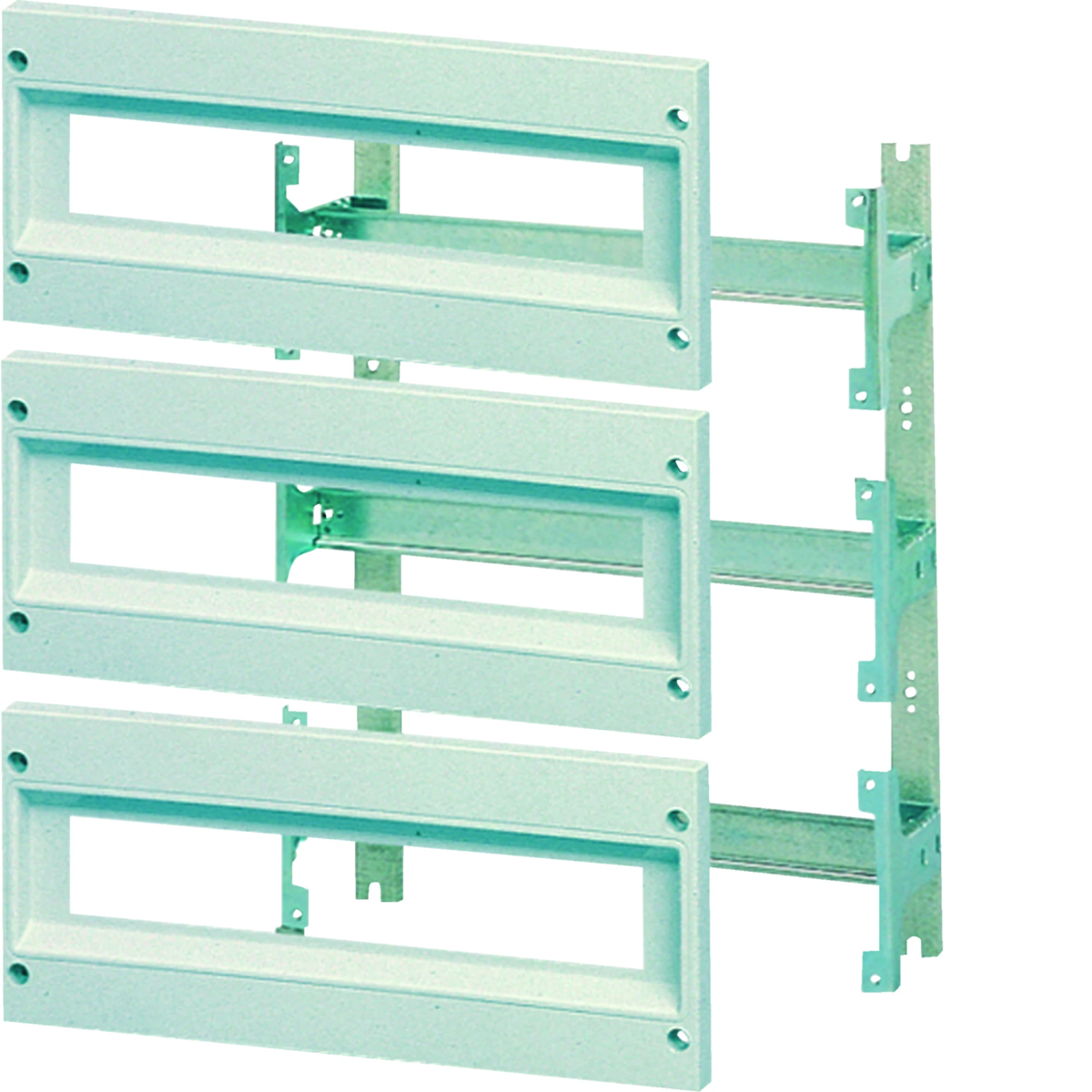

Complete set consisting of:

  •  two mounting rails
  •  TS35 rails (DIN)
  •   ;insulating masking plates
  •  4 mounting brackets

Mounting in Box-structure enclosures

For enclosures with dimensions: x width
800 x 600 mm - 140 mod. (5 rows of 28 mod.)

Technical data

  • Width [mm]
    600
  • PKWIU
    27.12.40.0
  • Height [mm]
    800

Other technical data

  • Height
    800 mm
  • Number of DIN-rails
    5
  • Extension possible
    No
  • Width
    600 mm
  • Number of modular spacings per DIN-rail
    140
  • With busbar
    No

Bulk packaging

A kind of package Karton Paleta
Quantity 1 pcs. 1 pcs. 18 pcs.
Weight (kg) 5,054 5,055 116,000
Width (m) 0,150 0,565 0,800
Length (m) 0,780 0,135 1,275
Depth (m) 0,560 0,810 1,200
