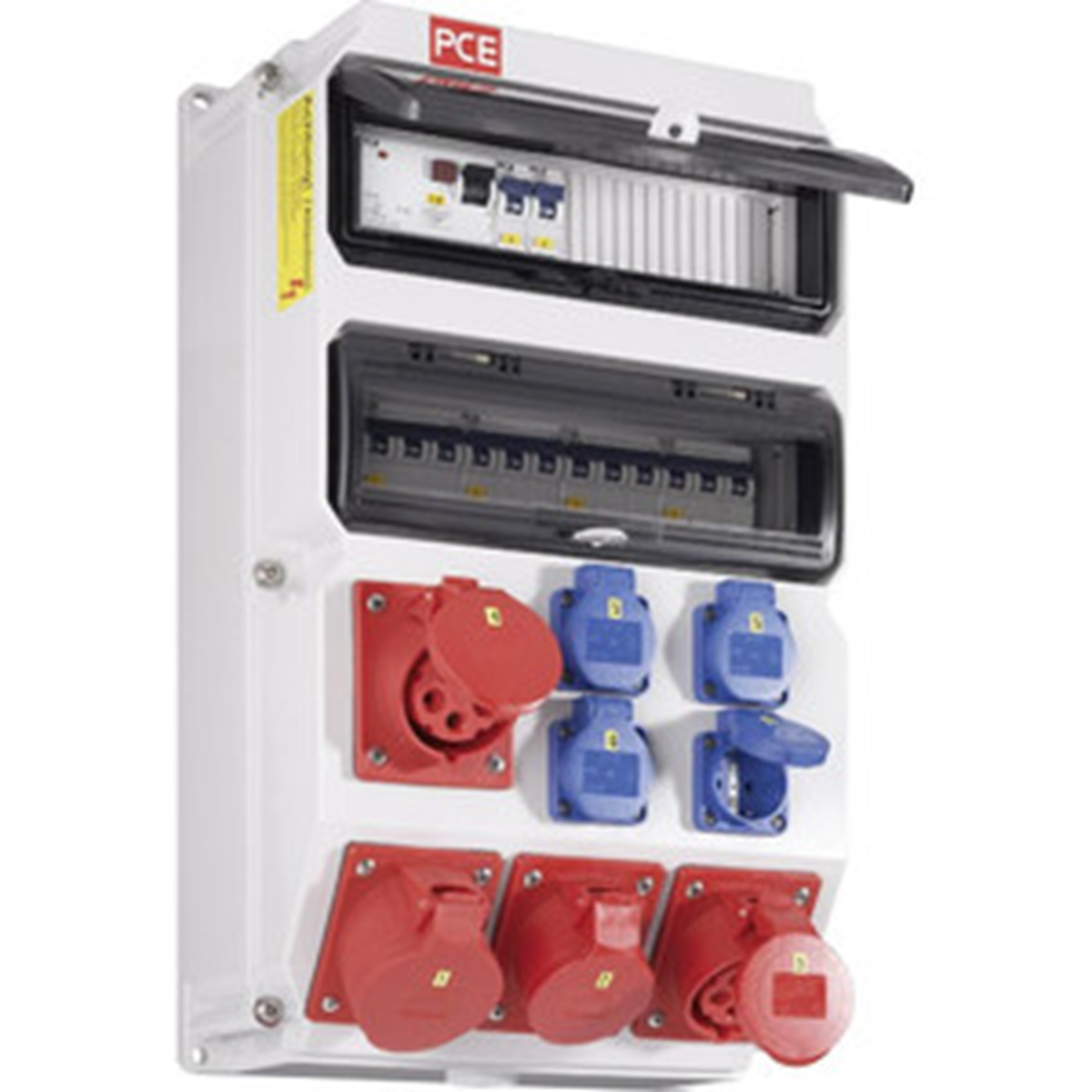

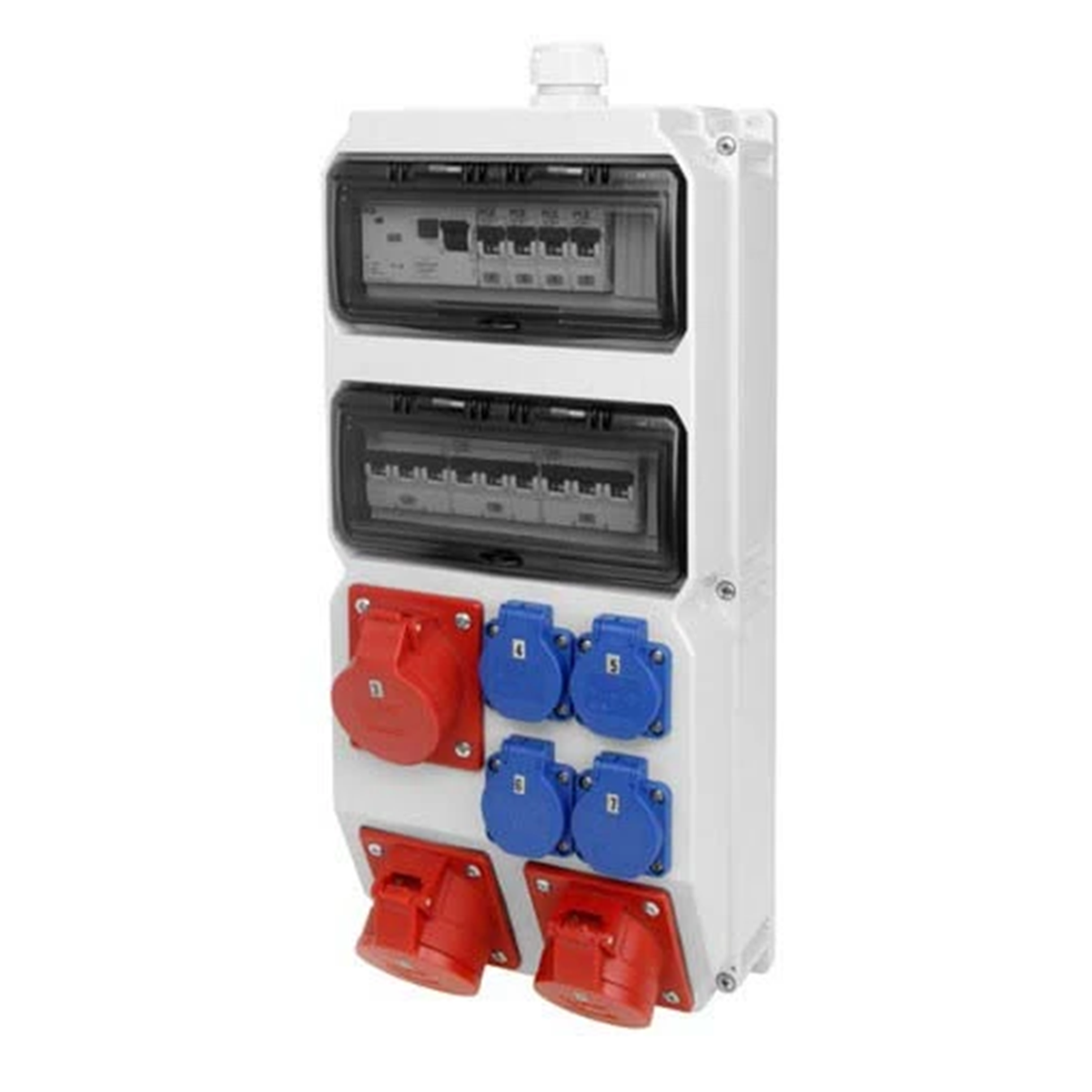

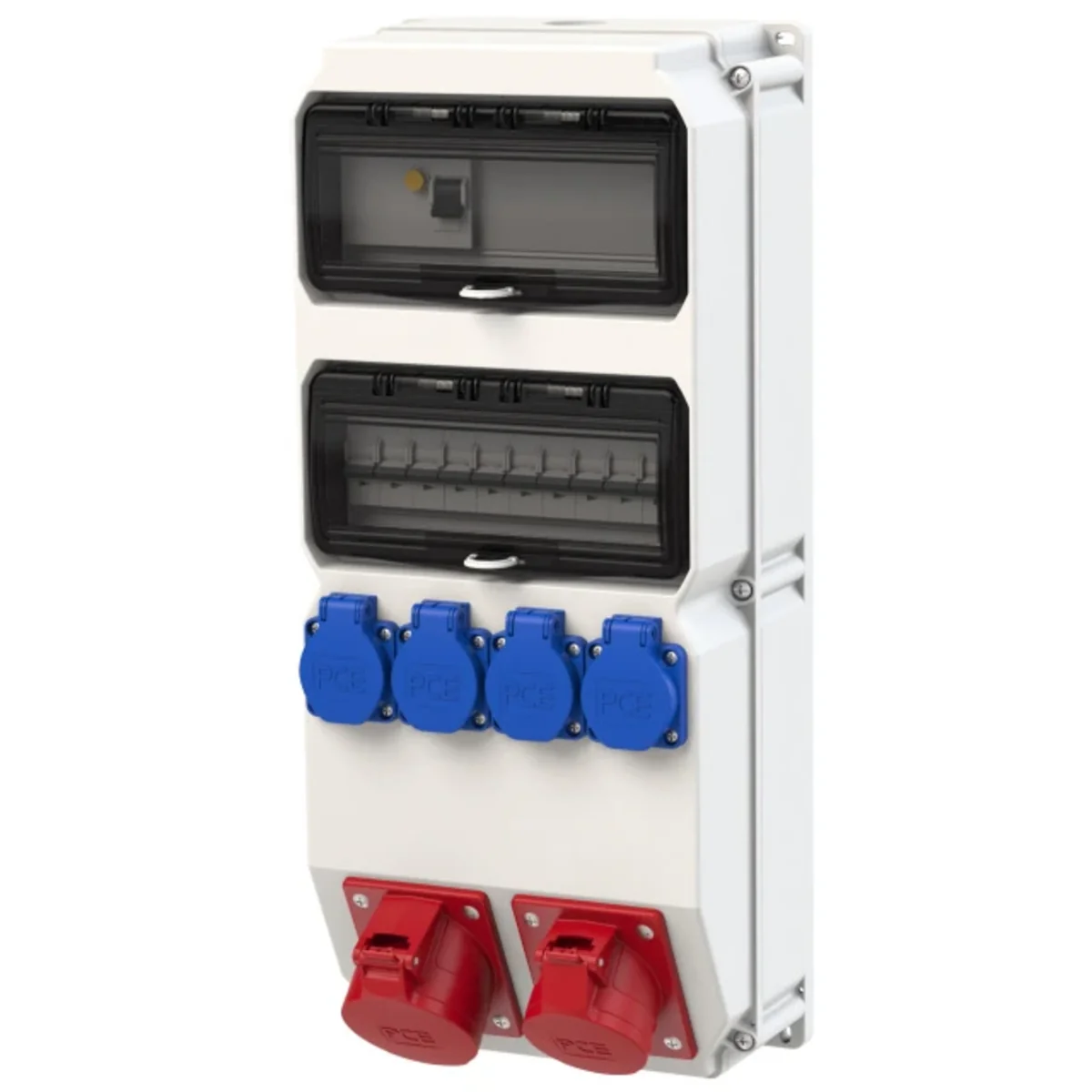

Stationary switchgear made of plastic "SZUBIN" 2 X 10M 9025521

Index local:
RSR020PCEQ
Numéro de catalogue:
9025521
Code EAN:
5902082049074
Producteur: PCE
Material: Plastic
Family: SZUBIN
Level of security: IP44
Prix:
1 292,94 zł
gross / pcs.
(y compris la TVA 23%)
En rupture de stock
Sur commande
Ajouter à la demande de devis
Imprimer

Description du produit

Stationary switchgear made of plastic "SZUBIN" 2 X 10M

Données techniques

  • Material
    Plastic
  • Level of security
    IP44
  • Exit
    1x16A 5p 400V, 1x32A 5p 400V, 4GSx4C16
  • PKWIU
    27.12.31-70.01
  • Family
    SZUBIN
  • Entry
    M32
  • Safeguard
    Circuit breaker

Autres données techniques

  • CEE socket outlet 16 A
    1x16A5p400V
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    4
  • Earth leakage switch
    Earth leakage switch with IFN 30 mA (standard)
  • Housing material
    Plastic
  • Handling
    Wall mounting
  • Colour
    Grey
  • Width
    222 mm
  • CEE socket outlet 32 A
    1x32A5p400V
  • Protection
    Overcurrent switch
  • Number of miniature circuit breakers (MCB)
    6
  • Power supply/connection possibility
    1 cable (branch line)
  • Degree of protection (IP)
    IP54
  • Height
    520 mm
  • Depth
    140 mm

Détails du fabricant

  • Producteur
    PCE Polska Sp. z o.o.
  • Adresse
    58-200 Dzierżoniów Podwalna 8A Polska
  • E-mail
