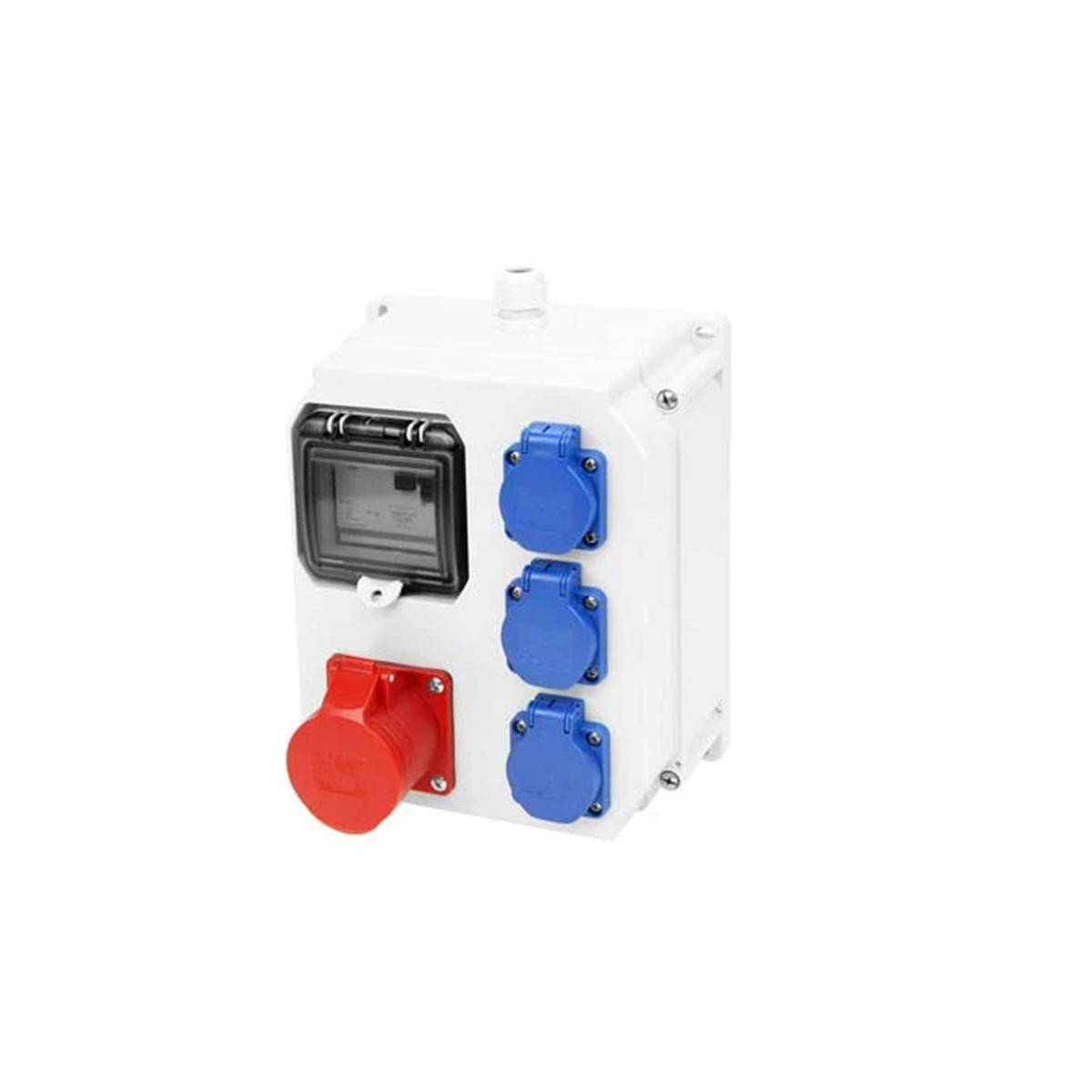

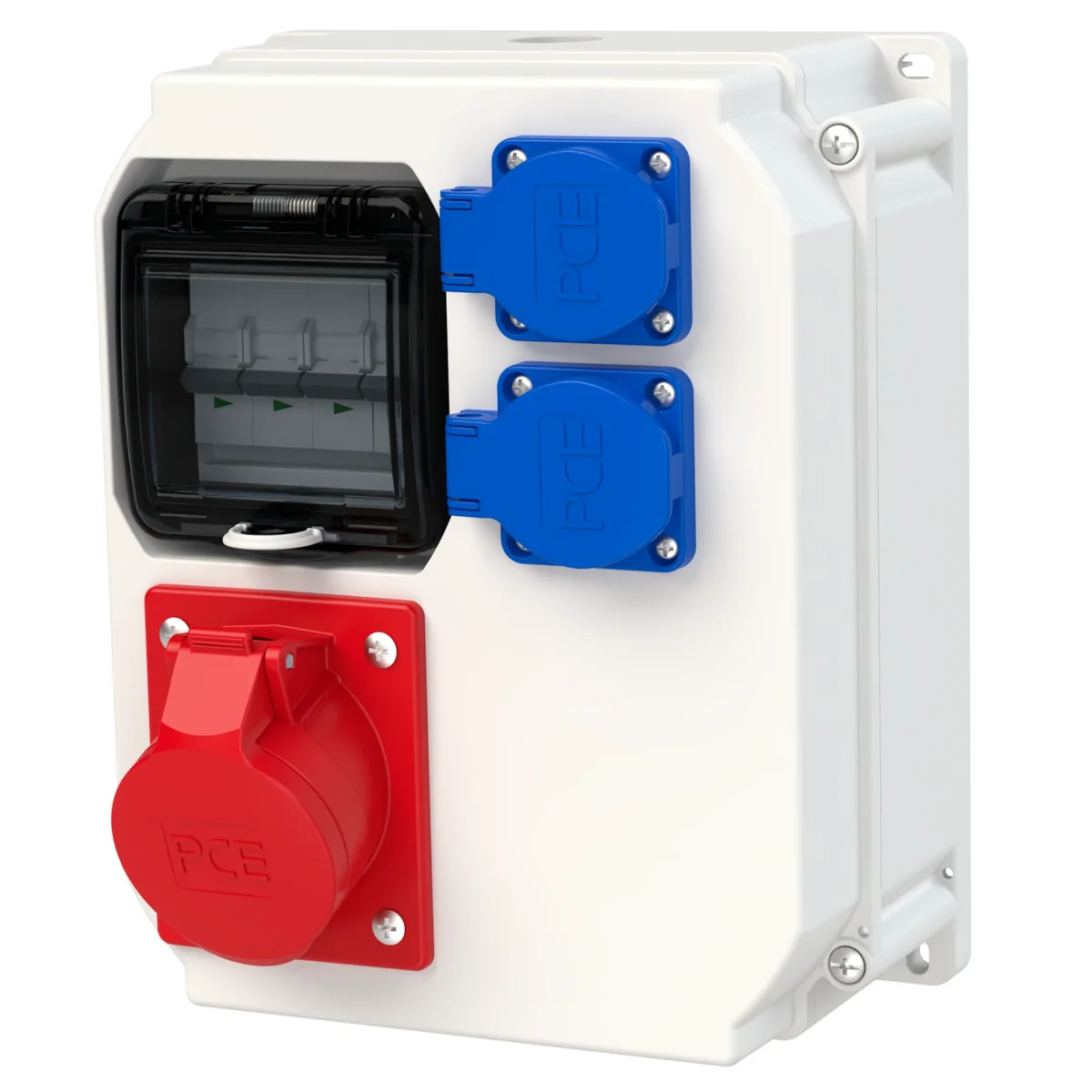

Stationary plastic switchgear type "MIKOŁAJKI" IP55 housing tightness Pg21 input - 16/5xB16 output 2xGSxB16 9013125W

Índice local:
RIN450PCEQ
Número de catálogo:
9013125W
Código EAN:
5907711114451
Fabricante: PCE
Entry: M25
Exit: 1 x CEE socket 63A 5P 400V 1 x CEE socket 32A 5P 400V 1 x CEE socket 16A 5P 400V 2 x GS 16A 250V
Protection/control: 1 x B16 3P 1 x B16 1P
Precio:
414,50 zł
gross / uds.
(IVA incluido 23%)
hasta 2 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Stationary switchgear made of  “ MIKOŁAJKI” housing tightness IP55 Input Pg21 - output 16/5xB16 2xGSxB16

Datos técnicos

  • Entry
    M25
  • Protection/control
    1 x B16 3P 1 x B16 1P
  • Exit
    1 x CEE socket 63A 5P 400V 1 x CEE socket 32A 5P 400V 1 x CEE socket 16A 5P 400V 2 x GS 16A 250V
  • PKWIU
    27.12.31-70.01

Otros datos técnicos

  • CEE socket outlet 16 A
    1x16A5p400V
  • CEE socket outlet 63 A
    None
  • Number of socket outlets French standard type E
    2
  • Number of socket outlets Swiss standard type 13
    0
  • Number of socket outlets Swiss standard type 23
    0
  • Protection
    Overcurrent switch
  • Number of miniature circuit breakers (MCB)
    2
  • Power supply/connection possibility
    Other
  • Handling
    Wall mounting
  • Military model
    No
  • Height
    255 mm
  • Depth
    114 mm
  • CEE socket outlet 32 A
    None
  • CEE socket outlet 125 A
    None
  • Number of socket outlets Danish standard (earthing pin)
    0
  • Number of socket outlets Swiss standard type 15
    0
  • Number of socket outlets Swiss standard type 25
    0
  • Earth leakage switch
    None
  • Housing material
    Plastic
  • Diameter cable entry
    M25
  • Degree of protection (IP)
    IP54
  • Colour
    Grey
  • Width
    204 mm

Detalles del fabricante

  • Fabricante
    PCE Polska Sp. z o.o.
  • Dirección
    58-200 Dzierżoniów Podwalna 8A Polska
  • Email
