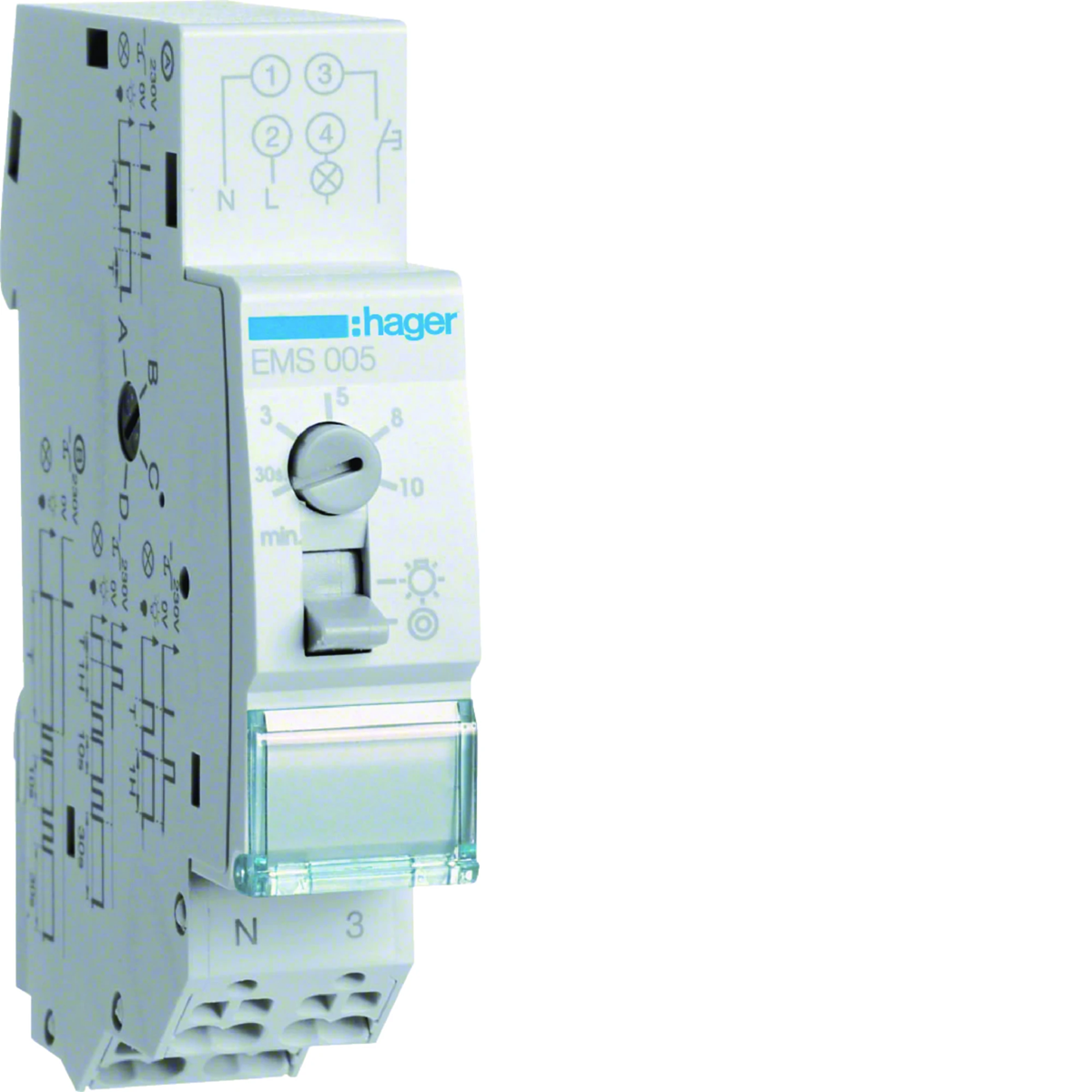

Staircase switch with off signaling 30s-10min/1h 230V 1NO 16A EMS005

local index:
RRR5B8HAGE
Catalog No:
EMS005
EAN code:
3250612339921
Manufacturer: HAGER
Rated frequency [Hz]: 60
Length [mm]: 64
Depth [mm]: 64
Price:
129,36 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Staircase switch with off signaling 30s-10min/1h 230V 1NO 16A

Technical data

  • Rated frequency [Hz]
    60
  • Depth [mm]
    64
  • Input power [VA]
    1
  • AC control voltage [V]
    230
  • Rated current [A]
    16
  • Level of security
    IP20
  • Width [mm]
    17.5
  • Connection type
    Quick Connect
  • Rated switching voltage [V]
    195/230/253
  • Maximum bulb power [W]
    2300
  • Delay time, adjustable
    30 sec - 10 min
  • Conductor cross-section (wire) [mm²]
    1.5 - 2.5
  • Length [mm]
    64
  • Number of contacts
    1
  • Installation
    On the TH-35 rail
  • Supply voltage [V]
    230
  • Contact type
    1 no
  • power loss [W]
    2
  • Fastener type
    Variable contact
  • Operating temperature range [°C]
    from -10 to 55
  • Number of modules
    1
  • storage temperature [°C]
    from -20 to 60
  • Wire cross-section (cord) [mm²]
    1.5 - 2.5
  • PKWIU
    26.52.24.0

Other technical data

  • Function
    Electronic
  • Width in number of modular spacings
    1
  • Number of contacts as normally open contact
    1
  • Number of contacts as change-over contact
    0
  • Type of control voltage 1
    AC
  • Control voltage 2
    230 ... 230 V
  • Frequency control voltage 2
    50 ... 60 Hz
  • Max. switching current (cos phi = 0.6)
    16 A
  • Push button glow-lamp current
    100 mA
  • Pre-warning of switching-off
    Flickering
  • Repetitive
    Repetitive
  • Voltage type (supply voltage)
    AC
  • Max. load fluorescent lamp
    3600 VA
  • Max. load fluorescent lamp (parallel compensated)
    1000 VA
  • Mounting method
    DIN rail
  • Built-in depth
    64 mm
  • Number of contacts as normally closed contact
    0
  • Control voltage 1
    230 ... 230 V
  • Frequency control voltage 1
    50 ... 60 Hz
  • Type of control voltage 2
    AC
  • Rated switch current
    16 A
  • Release-delay
    0.5 ... 10 min
  • Wiring system
    3 and 4 wire configuration
  • Current surge function selectable
    No
  • Supply voltage
    230 ... 230 V
  • Max. incandescent lamp load
    2300 W
  • Max. load fluorescent lamp (Duo circuit)
    1000 VA

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 108 pcs. 2592 pcs.
Weight (kg) 0,069 0,082 9,200 243,800
Width (m) 0,095 0,080 0,313 0,800
Length (m) 0,080 0,023 0,217 1,018
Depth (m) 0,022 0,096 0,360 1,200
