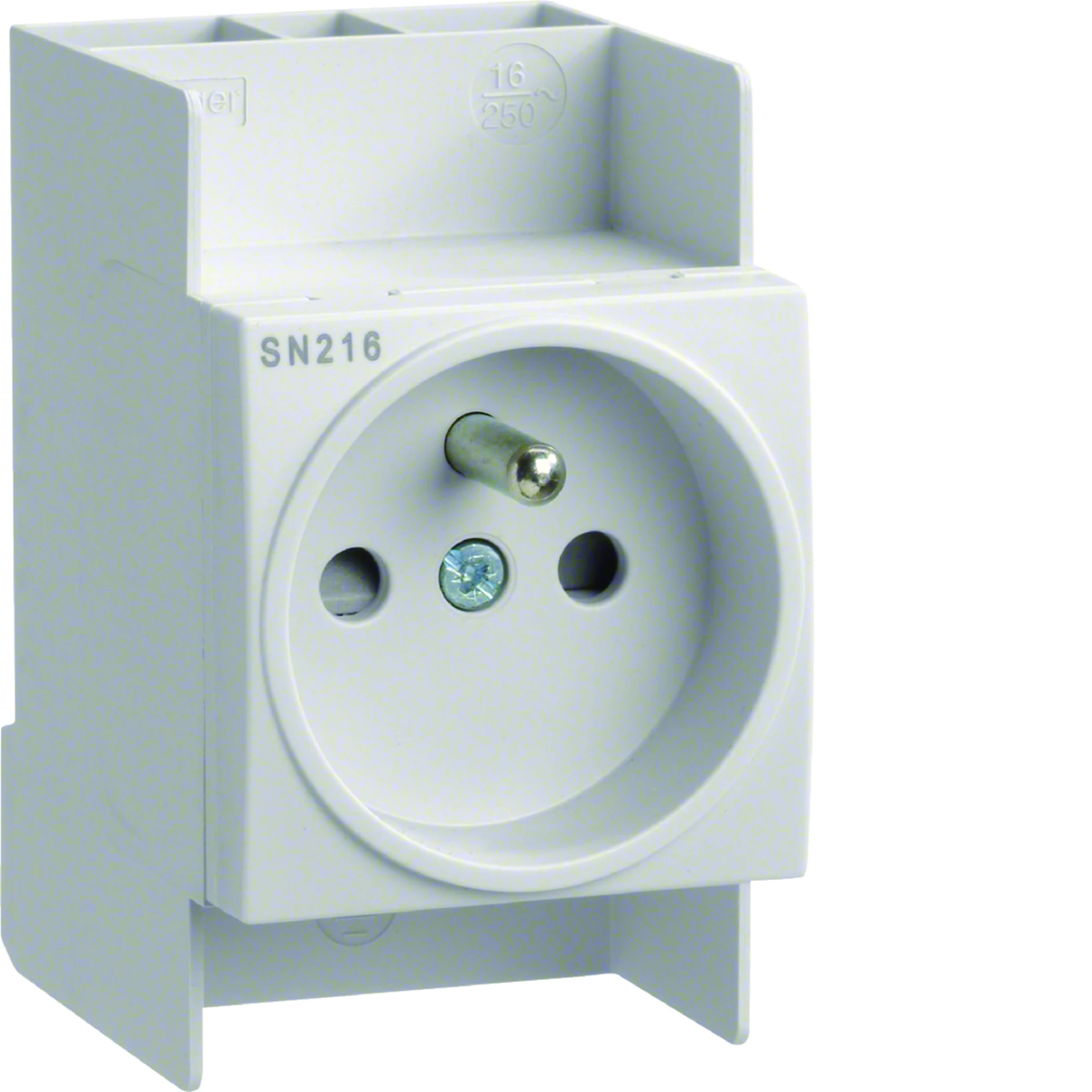

Socket with ground pin SN216
local index:
RRR5A8HAGE
Catalog No:
SN216
EAN code:
3250615642165
Price:
12,63 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Socket with ground pin.
Technical data
-
Depth [mm]66
-
Rated current [A]16
-
Height [mm]75
-
PKWIU27.33.13.0
-
Number of modules2.5
-
Width [mm]44
-
Number of modules2.5
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Number of active contacts (round)1
-
With signal lampNo
-
Connection typeScrewed terminal
-
With function lightingNo
-
Type of fasteningMounting with screw
-
Material qualityOther
-
Surface protectionLacquered
-
With on/off switchNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Device width44 mm
-
Device depth66 mm
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
Number of socket outlets switchable0
-
Eject-mechanismNo
-
Special power supplyNo special power supply
-
MaterialOther
-
Halogen freeYes
-
Anti-bacterial treatmentNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device height75 mm
-
Min. depth of built-in installation box40 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 4 pcs. | 48 pcs. | 1152 pcs. |
| Weight (kg) | 0,072 | 0,352 | 4,664 | 109,096 |
| Width (m) | 0,044 | 0,095 | 0,315 | 0,800 |
| Length (m) | 0,075 | 0,080 | 0,235 | 1,090 |
| Depth (m) | 0,066 | 0,225 | 0,360 | 1,200 |
