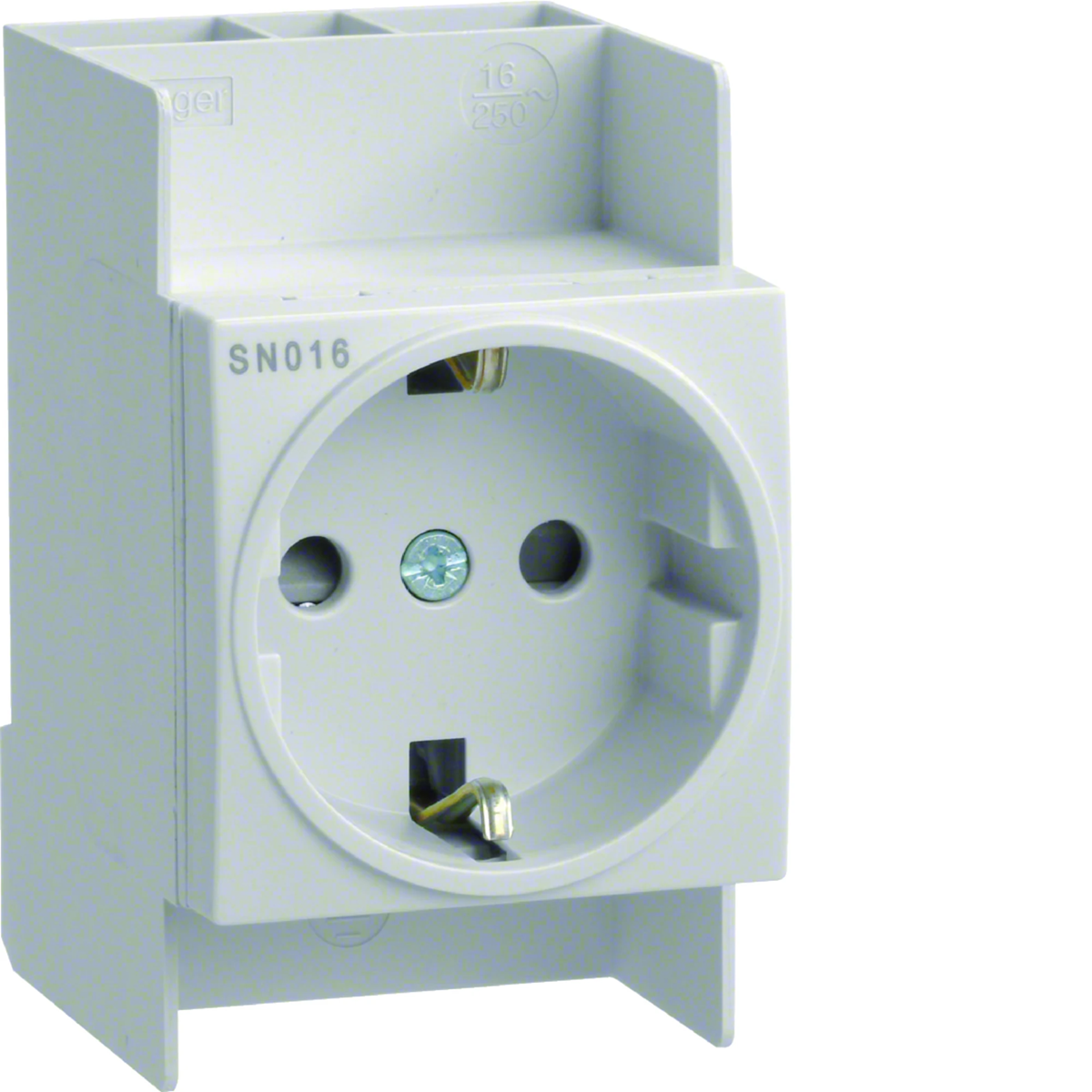

Socket for Schuko rail SN016

local index:
RRR5A6HAGE
Catalog No:
SN016
EAN code:
3250615640161
Manufacturer: HAGER
Depth [mm]: 66
Number of modules: 2.5
Rated current [A]: 16
Price:
15,61 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Schuko socket.


Technical data

  • Depth [mm]
    66
  • Rated current [A]
    16
  • Height [mm]
    75
  • PKWIU
    27.33.13.0
  • Number of modules
    2.5
  • Width [mm]
    44
  • Number of modules
    2.5

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    2
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Label space/information surface
    No
  • RAL-number (similar)
    7044
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Type of fastening
    Other
  • Material quality
    Other
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    75 mm
  • Min. depth of built-in installation box
    40 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of modules (module system)
    2
  • Connection type
    Screwed terminal
  • Colour
    Grey
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    No special power supply
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Device width
    44 mm
  • Device depth
    66 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 4 pcs. 48 pcs. 1152 pcs.
Weight (kg) 0,071 0,335 4,405 128,720
Width (m) 0,044 0,105 0,315 0,800
Length (m) 0,075 0,080 0,230 1,050
Depth (m) 0,066 0,225 0,365 1,200
