Skintop ST-M 63X1.5 RAL 7001 SGY cable gland 53111070
local index:
RRR127LAPP
Catalog No:
53111070
EAN code:
4044773177503
Price:
19,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description

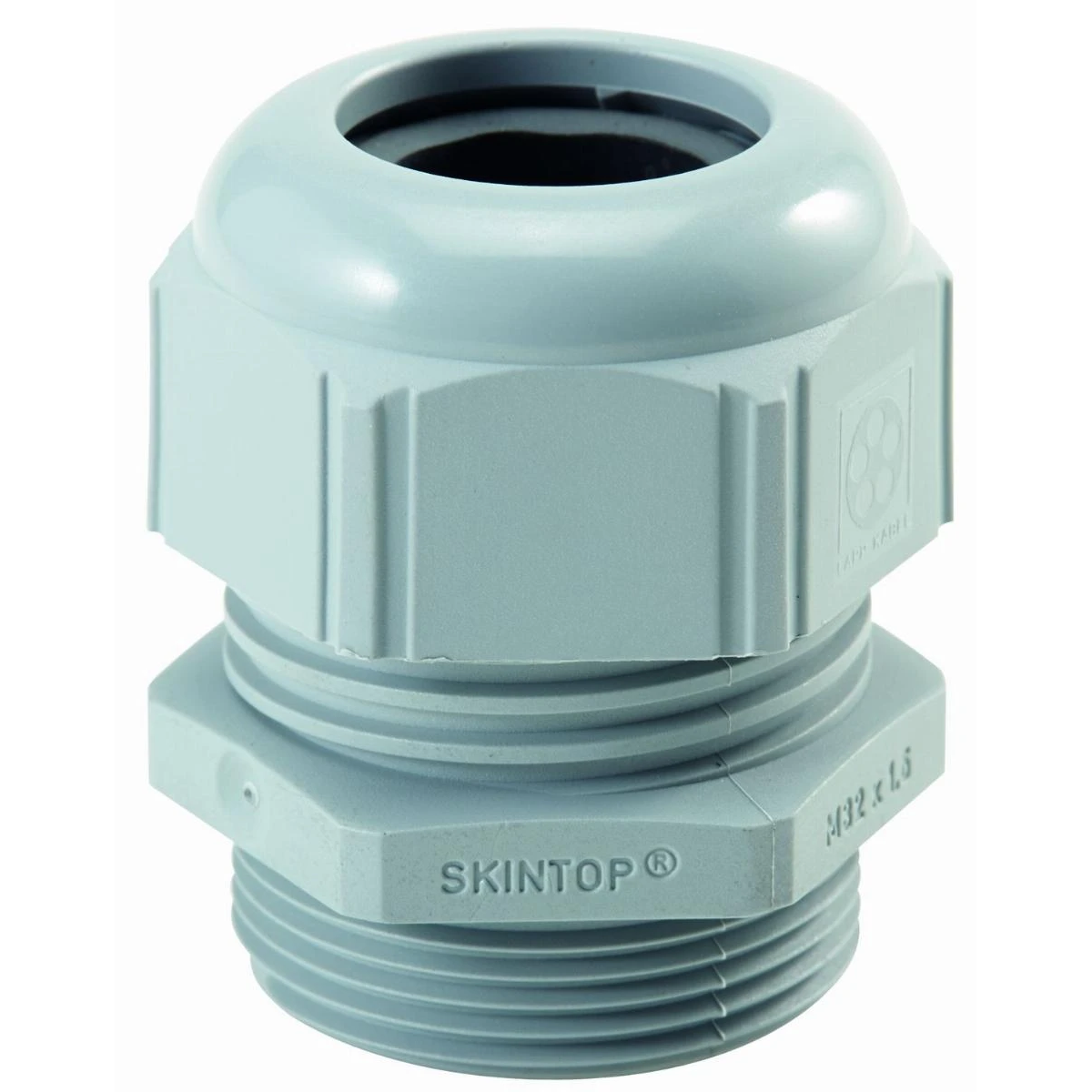

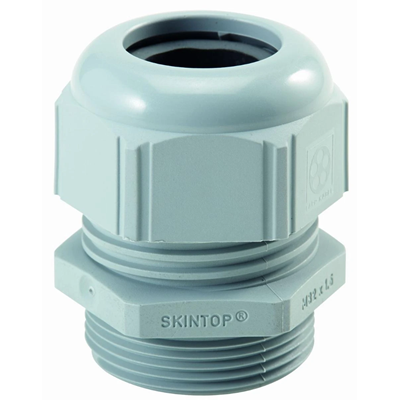

Skintop ST-M 63X1.5 RAL 7001 SGY cable gland
Technical data
-
Gland length [mm]71
-
ColorGray
-
Range of throttled diameters [mm]34-45
-
Thread length [mm]12
-
SW wrench size [mm]66
-
Accurate colorGray
Other technical data
-
Thread typeMetric
-
Pitch thread1.5 mm
-
Wrench width66 mm
-
MaterialPlastic
-
Surface protectionUntreated
-
Glass-fibre reinforcedNo
-
Shock resistantNo
-
RAL-number7001
-
With locknutNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 100 °C
-
For armoured cableNo
-
ScreenedNo
-
Nominal thread size metric/PG63
-
Thread length12 mm
-
Suitable for cable diameter34 ... 45 mm
-
Material qualityPolyamide (PA)
-
Halogen freeNo
-
Degree of protection (IP)IP69K
-
ColourCiemnoszary
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionNo
-
EMC-versionNo
