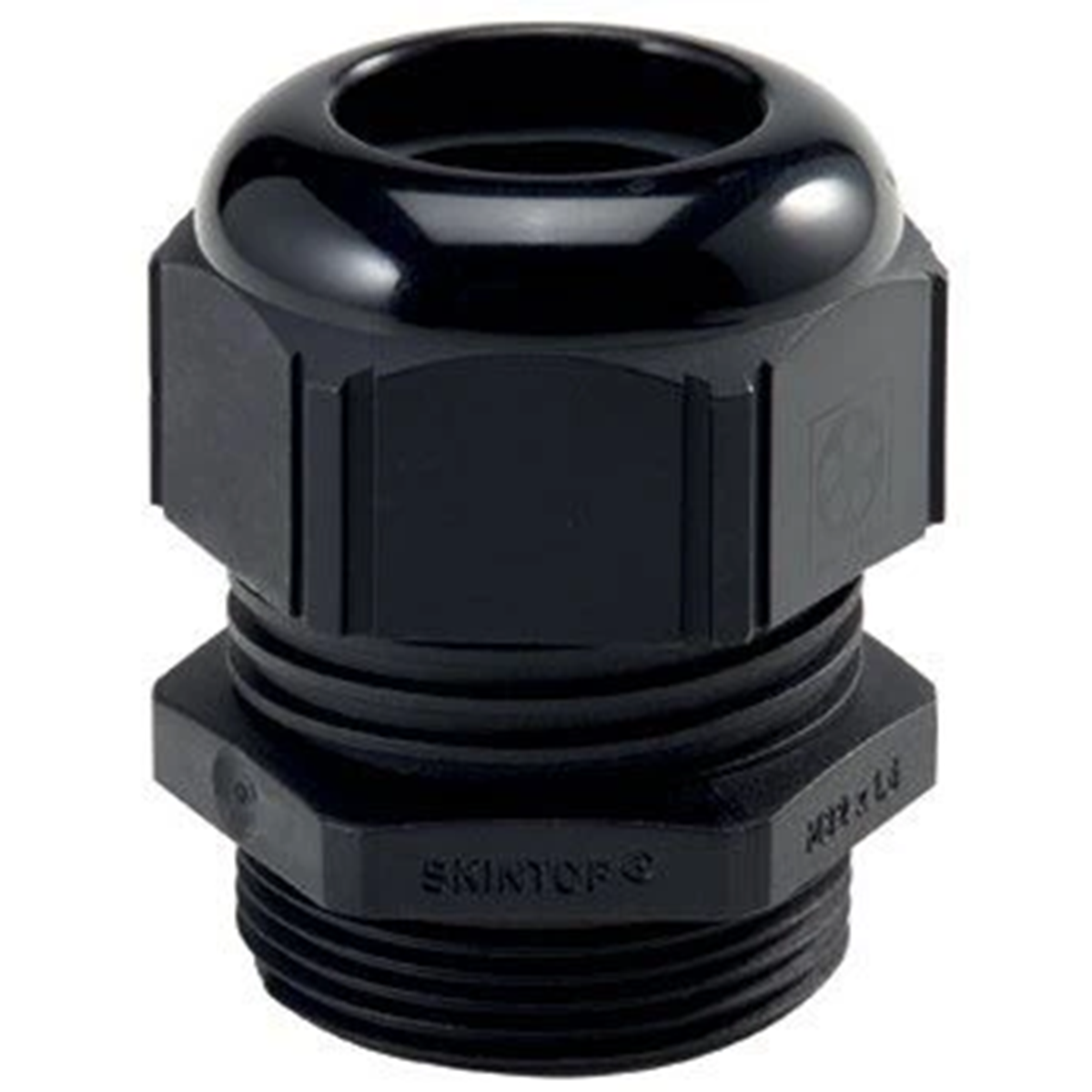

Skintop ST-M 16X1.5 gland RAL 9005 BK 53111210
local index:
RRR310LAPP
Catalog No:
53111210
EAN code:
4044773177053
Price:
0,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description
Skintop ST-M 16X1.5 gland RAL 9005 BK
Technical data
-
Gland length [mm]34
-
ColorBlack
-
Range of throttled diameters [mm]4.5-10
-
Thread length [mm]8
-
SW wrench size [mm]19
-
Accurate colorBlack
Other technical data
-
Thread typeMetric
-
Pitch thread1.5 mm
-
Wrench width19 mm
-
MaterialPlastic
-
Surface protectionUntreated
-
Glass-fibre reinforcedNo
-
Shock resistantNo
-
RAL-number9005
-
With locknutNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 100 °C
-
For armoured cableNo
-
ScreenedNo
-
Nominal thread size metric/PG16
-
Thread length8 mm
-
Suitable for cable diameter4.5 ... 10 mm
-
Material qualityPolyamide (PA)
-
Halogen freeNo
-
Degree of protection (IP)IP69K
-
ColourBlack
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionNo
-
EMC-versionNo
Manufacturer details
-
ManufacturerLapp Kabel Sp. z o.o.
-
Address55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Tax identification number8971621588
