Skintop MS-SC PG 11 gland 53112220
local index:
RRR133LAPP
Catalog No:
53112220
EAN code:
4044773172133
Price:
424,41 €
gross / pkg.
(including VAT 23%)
8,49 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print
Ask about the product
Product description

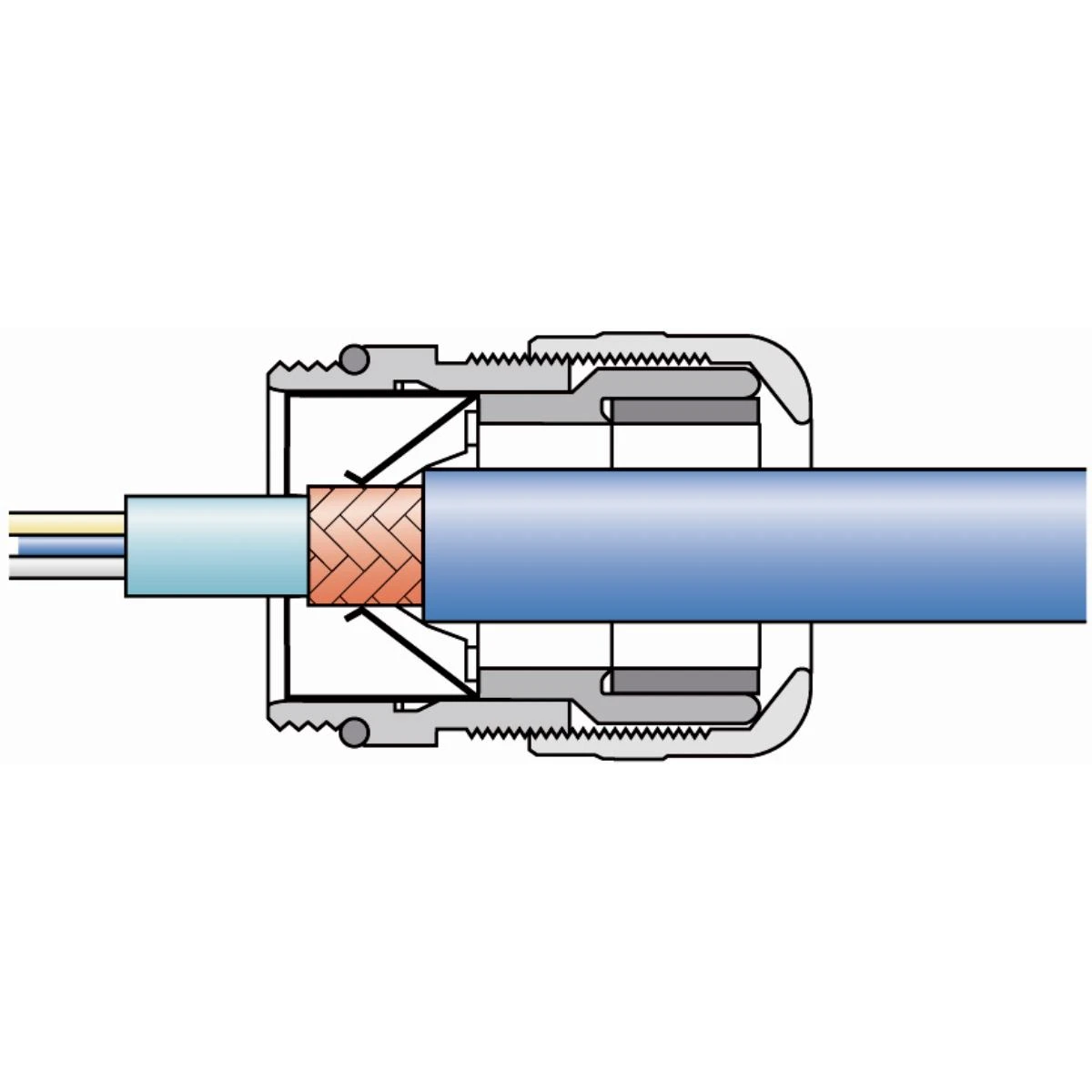

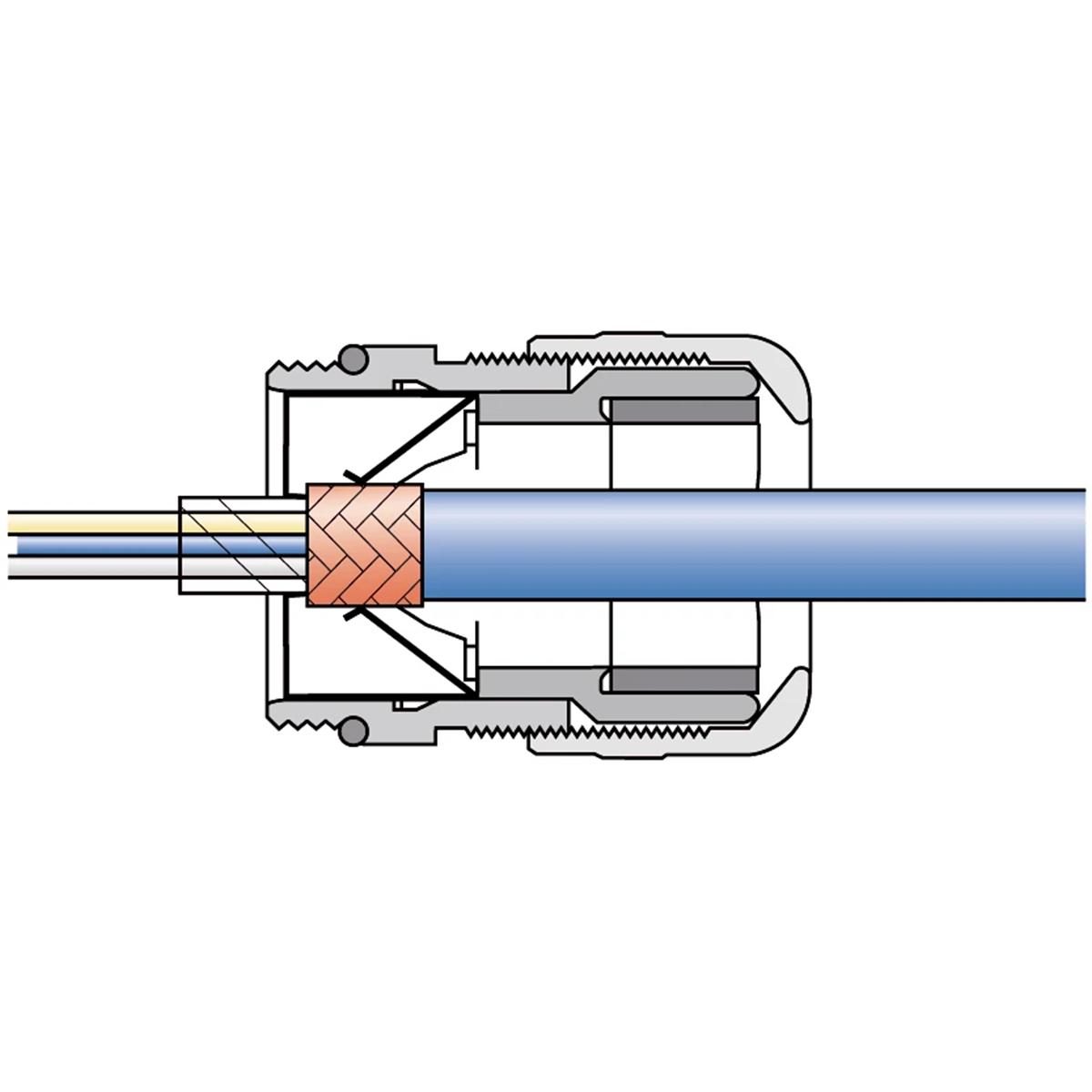

Skintop MS-SC PG 11 gland
Technical data
-
Thread length [mm]6
-
Pieces in the package50
Other technical data
-
Thread typePG
-
Thread length6 mm
-
Suitable for cable diameter4 ... 10 mm
-
Material qualityBrass
-
Halogen freeNo
-
Degree of protection (IP)IP68
-
ColourOther
-
With locknutNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 100 °C
-
For armoured cableNo
-
ScreenedYes
-
Nominal thread size metric/PG11
-
Wrench width20 mm
-
MaterialMetal
-
Surface protectionNickel-plated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionNo
-
EMC-versionYes
