Skintop MS PG 9 stuffing box 52015710

local index:
RRR045LAPP
Catalog No:
52015710
EAN code:
4044773420432
Manufacturer: LAPP KABEL
Gland length [mm]: 29
Thread length [mm]: 6
SW wrench size [mm]: 17
Price:
1,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Product on individual request
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

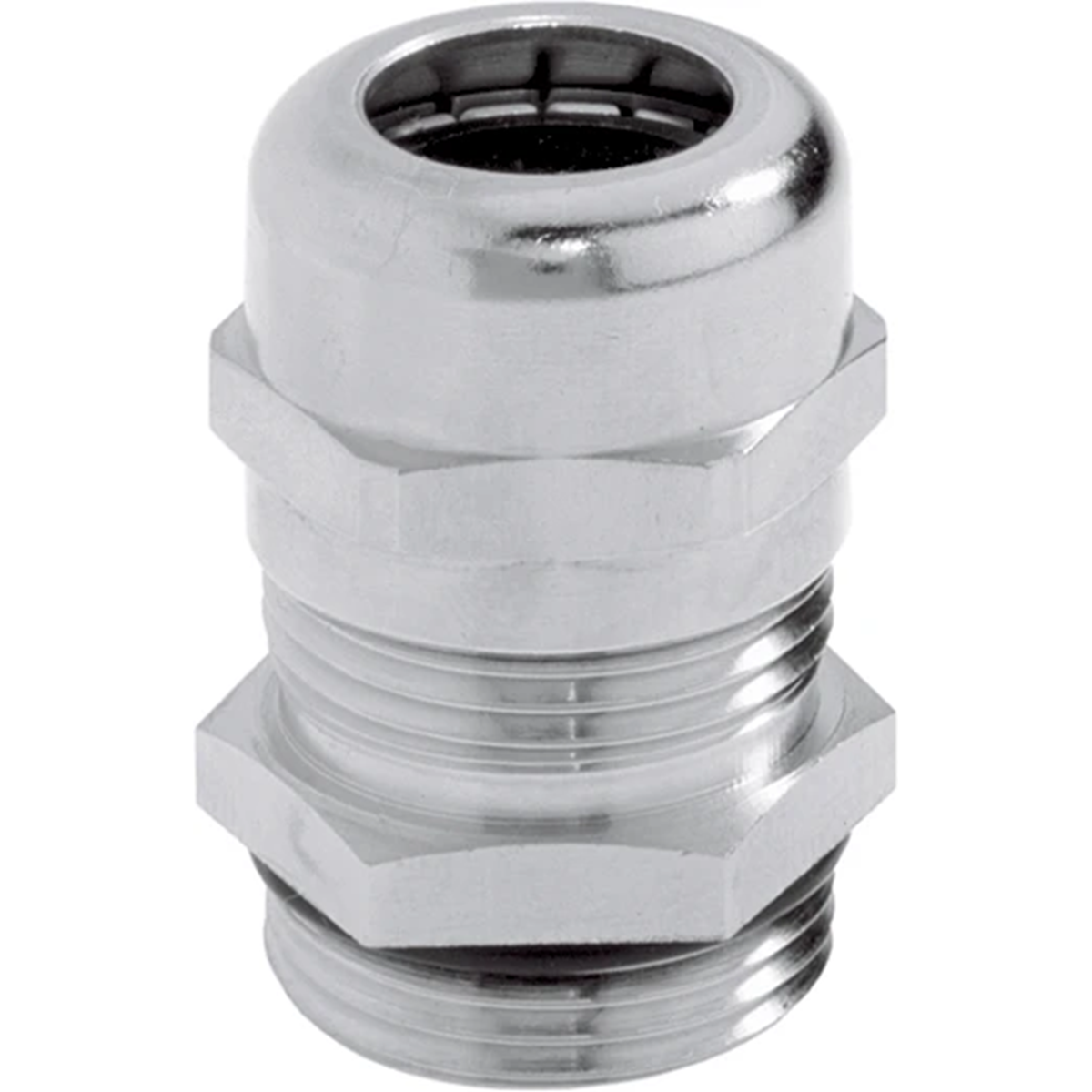

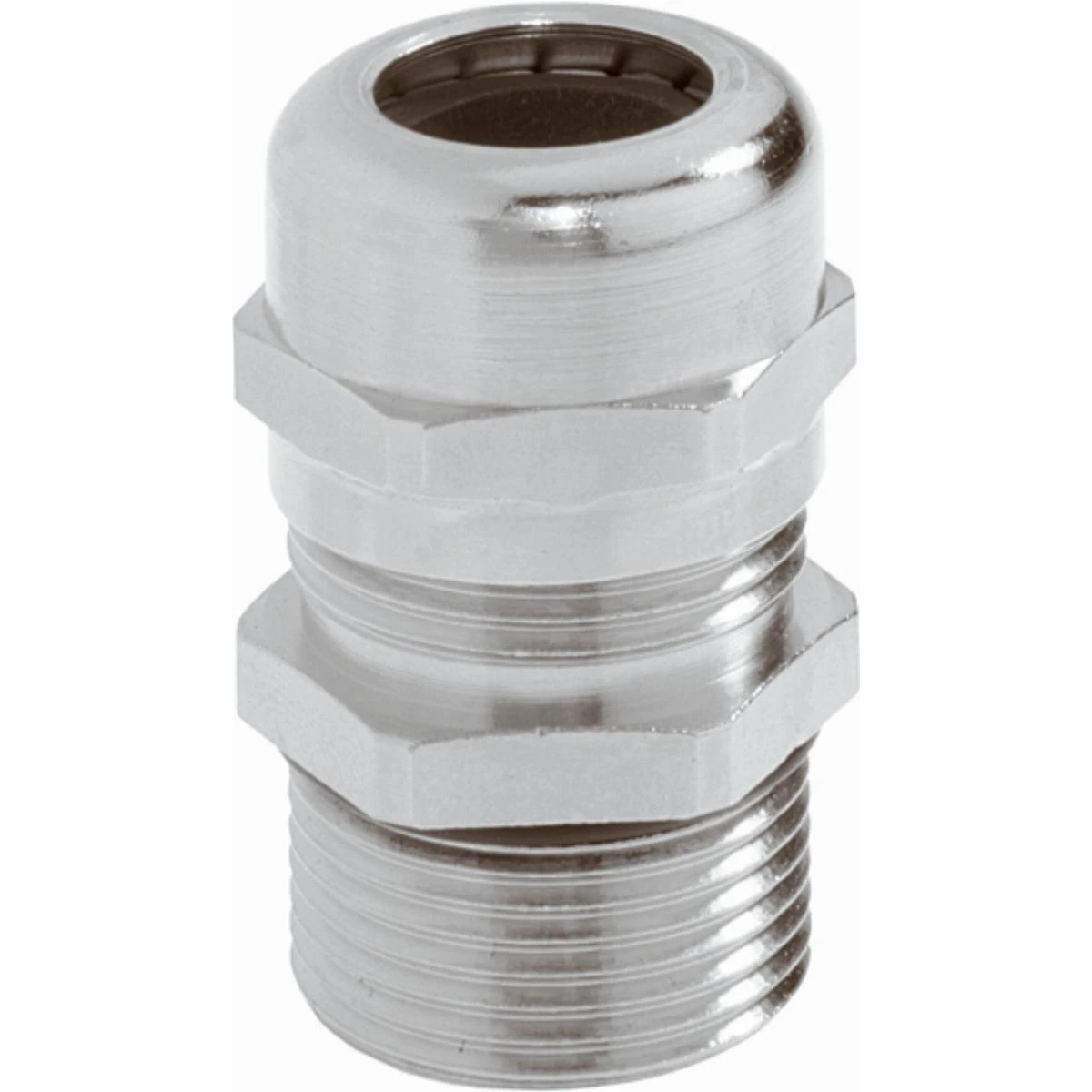

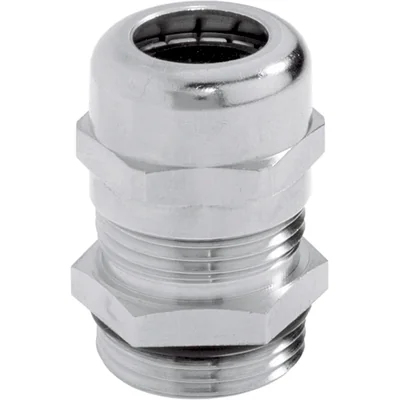

Skintop MS PG 9 stuffing box

Technical data

  • Gland length [mm]
    29
  • SW wrench size [mm]
    17
  • Thread length [mm]
    6
  • Range of throttled diameters [mm]
    2014-04-08 00:00:00

Other technical data

  • Thread type
    PG
  • Thread length
    6 mm
  • Suitable for cable diameter
    4 ... 8 mm
  • Material quality
    Brass
  • Halogen free
    no
  • Degree of protection (IP)
    IP68
  • Colour
    Other
  • With locknut
    no
  • Model
    Straight
  • Flat cable coupling
    no
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 100 °C
  • For armoured cable
    no
  • Screened
    no
  • Nominal thread size metric/PG
    9
  • Wrench width
    17 mm
  • Material
    Metal
  • Surface protection
    Nickel-plated
  • Glass-fibre reinforced
    no
  • Shock resistant
    yes
  • Bend radius protection/trumpet flare
    no
  • Snapping in opening
    no
  • Multi seal area
    no
  • With strain relief
    yes
  • Separable screw gland
    no
  • Explosion-tested version
    no
  • EMC-version
    no
