Skintop MS-M BRUSH 63x1.5 PLUS gland 53112681
local index:
RRR041LAPP
Catalog No:
53112681
EAN code:
4044773767353
Price:
162,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description

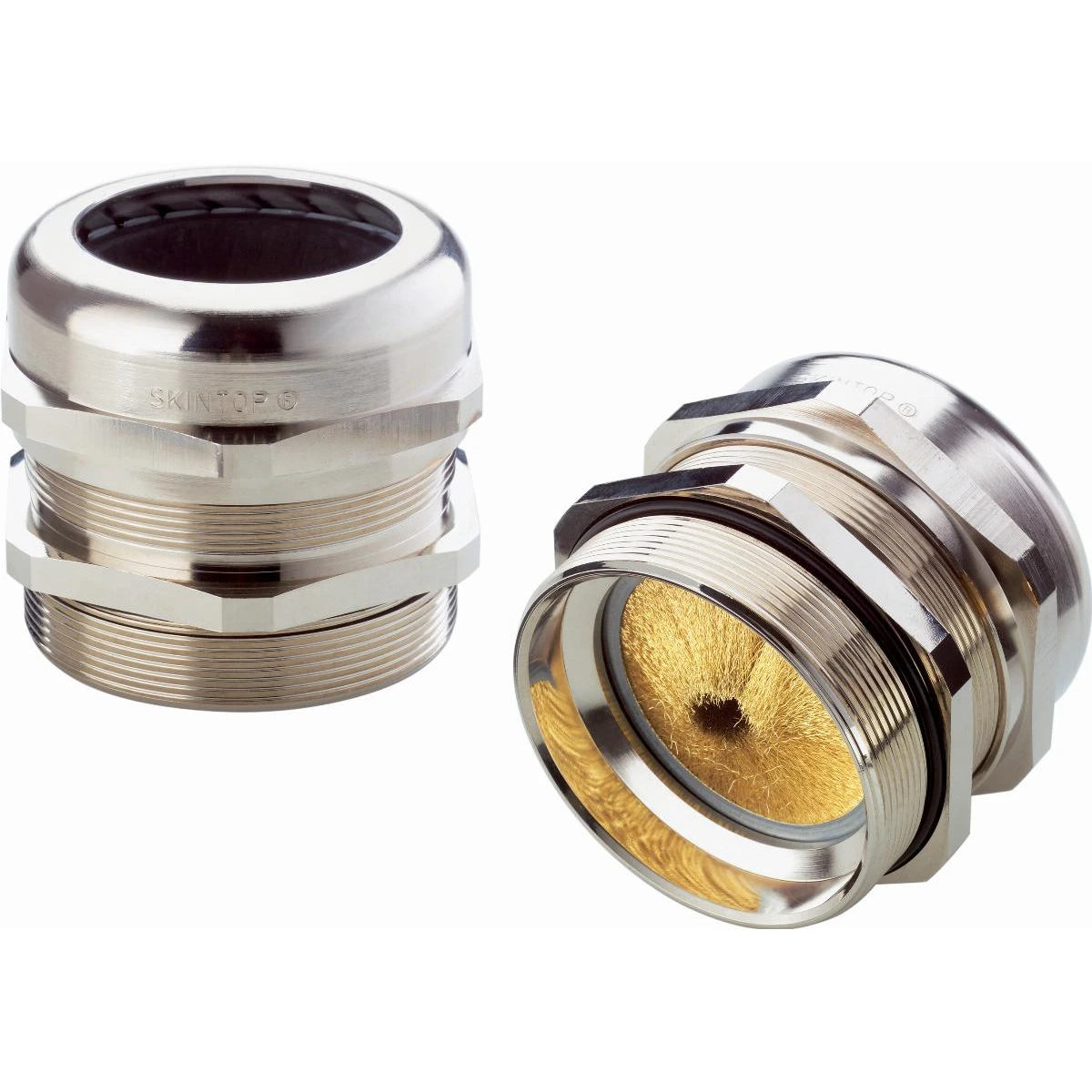

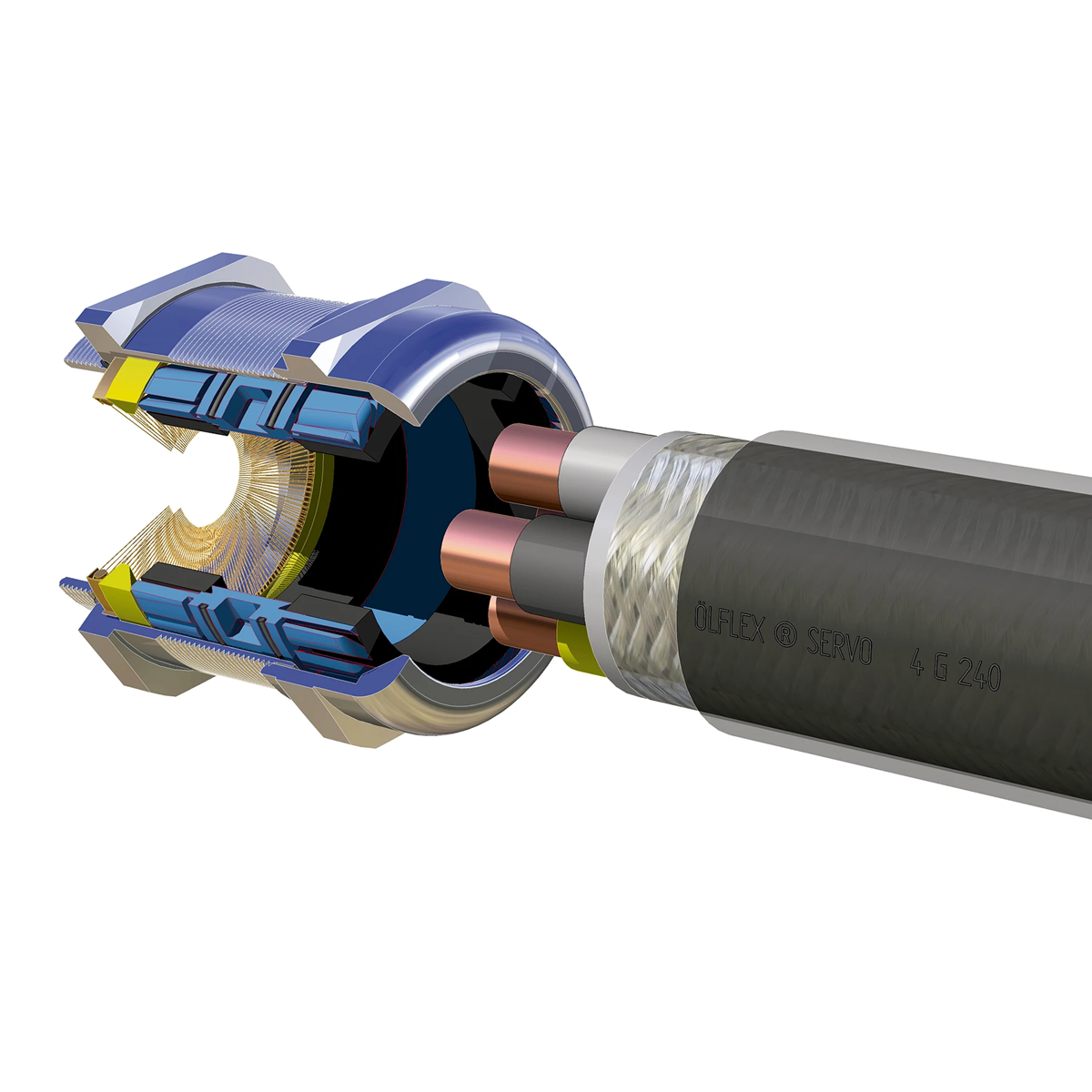

Skintop MS-M BRUSH 63x1.5 PLUS gland
Technical data
-
Thread length [mm]15
-
Minimum screen diameter [mm]25
-
Range of throttled diameters [mm]44-55
-
ColorBlack
-
SW wrench size [mm]75
-
Accurate colorBlack
Other technical data
-
Thread typeMetric
-
Pitch thread1.5 mm
-
Wrench width75 mm
-
MaterialMetal
-
Surface protectionNickel-plated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionNo
-
EMC-versionNo
-
Nominal thread size metric/PG63
-
Thread length15 mm
-
Suitable for cable diameter44 ... 55 mm
-
Material qualityBrass
-
Halogen freeNo
-
Degree of protection (IP)IP68
-
ColourOther
-
With locknutNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 100 °C
-
For armoured cableNo
-
ScreenedYes
