Skintop MS-M 75X1.5 gland 53112510
local index:
RRR132LAPP
Catalog No:
53112510
EAN code:
4044774405056
Price:
295,57 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description

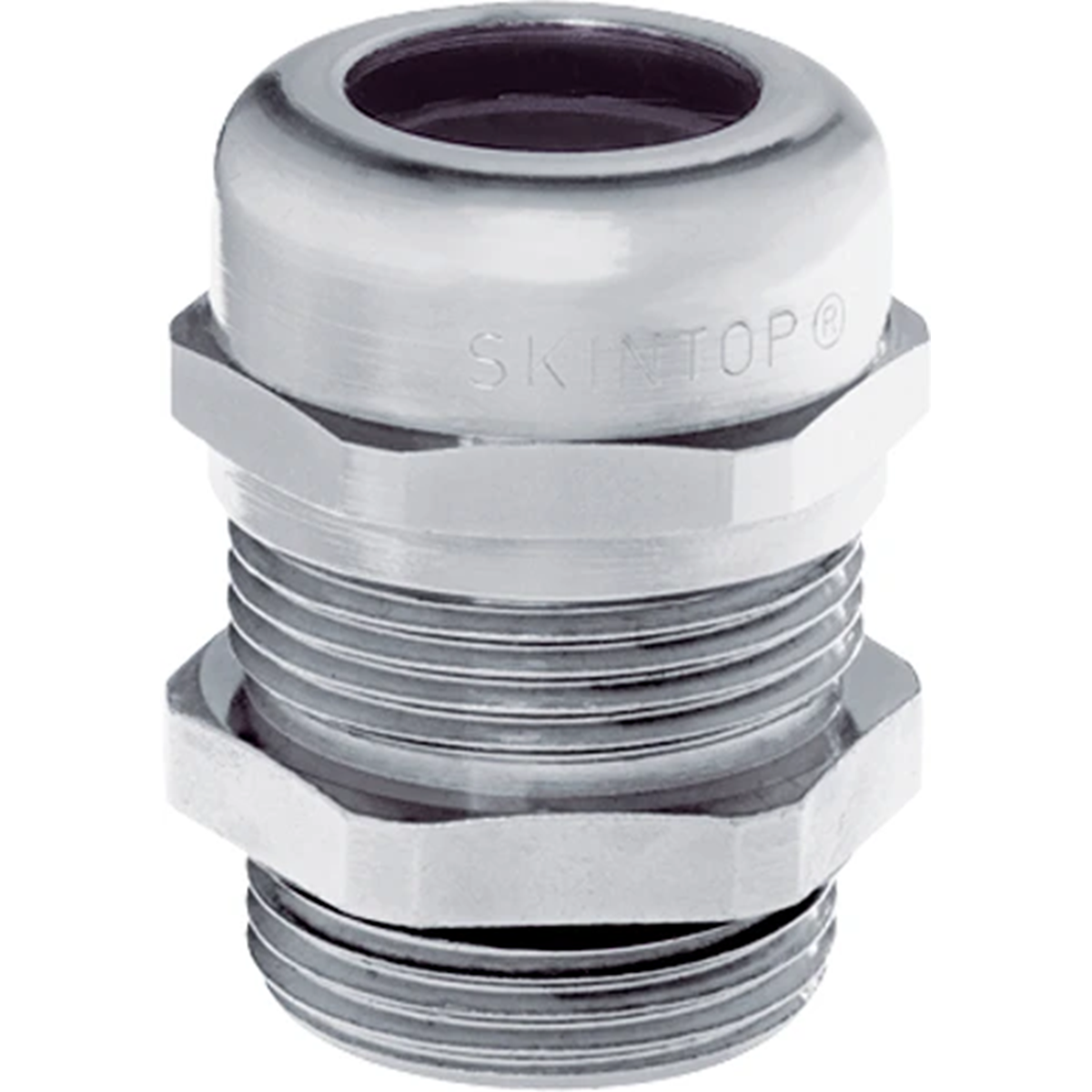

Skintop MS-M 75X1.5 gland
Technical data
-
Gland length [mm]105
-
SW wrench size [mm]95
-
Thread length [mm]15
-
Range of throttled diameters [mm]58-68
Other technical data
-
Thread typeMetric
-
Pitch thread1.5 mm
-
Wrench width95 mm
-
MaterialMetal
-
Surface protectionNickel-plated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionNo
-
EMC-versionNo
-
Nominal thread size metric/PG75
-
Thread length15 mm
-
Suitable for cable diameter58 ... 68 mm
-
Material qualityBrass
-
Halogen freeNo
-
Degree of protection (IP)IP68
-
ColourOther
-
With locknutNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 100 °C
-
For armoured cableNo
-
ScreenedNo
Manufacturer details
-
ManufacturerLapp Kabel Sp. z o.o.
-
Address55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Tax identification number8971621588
