LAPP KABEL

Skintop MS-M 25X1.5 ATEX gland 53112730

local index:
RRR177LAPP
Catalog No:
53112730
EAN code:
4044773170122
Price:
7,38 €
gross / pcs.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

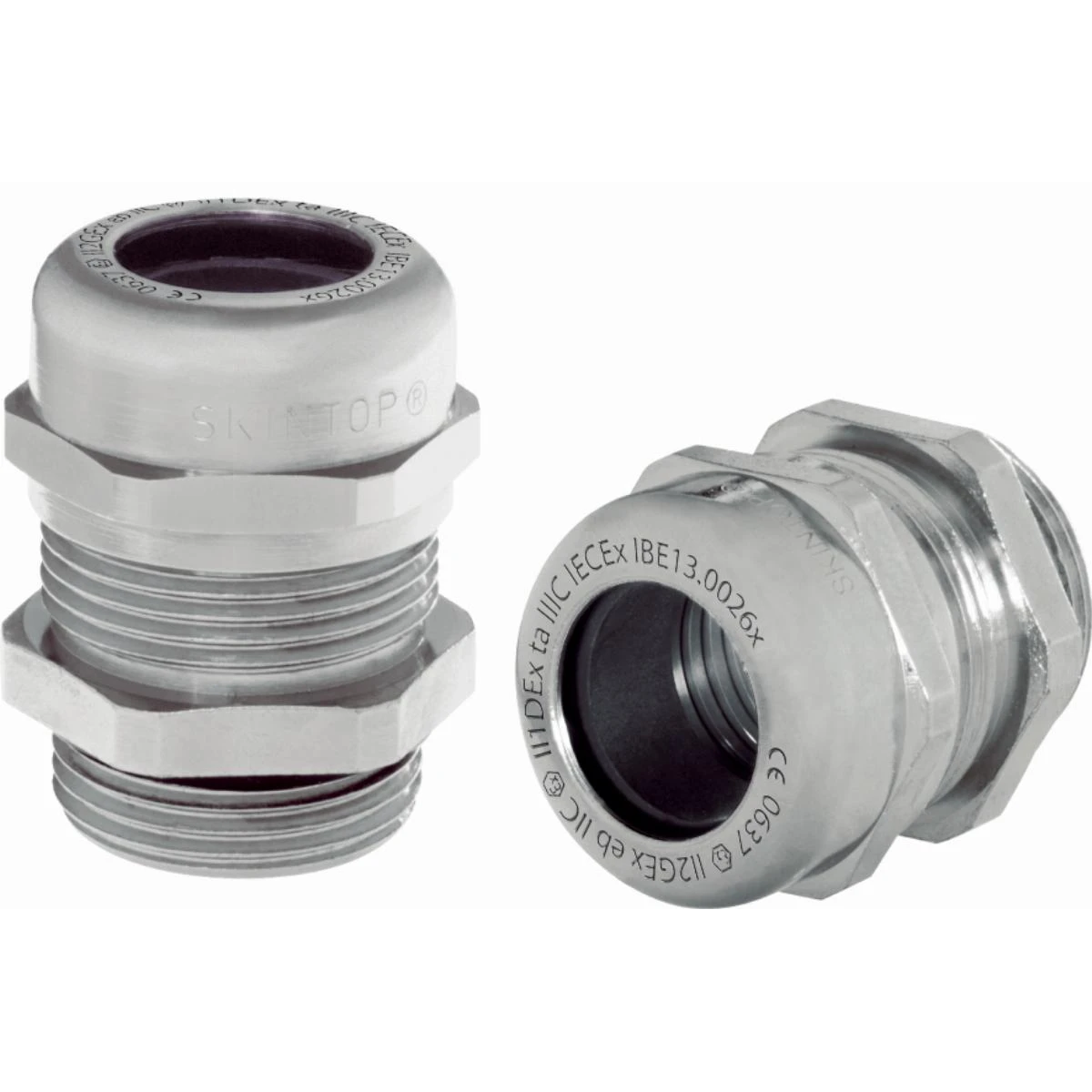

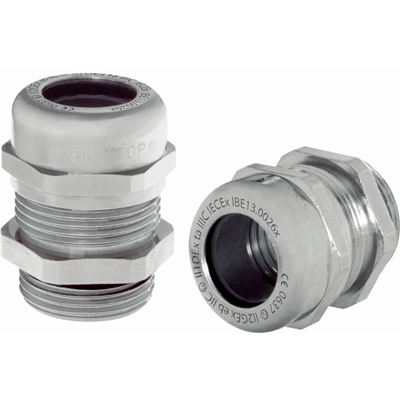

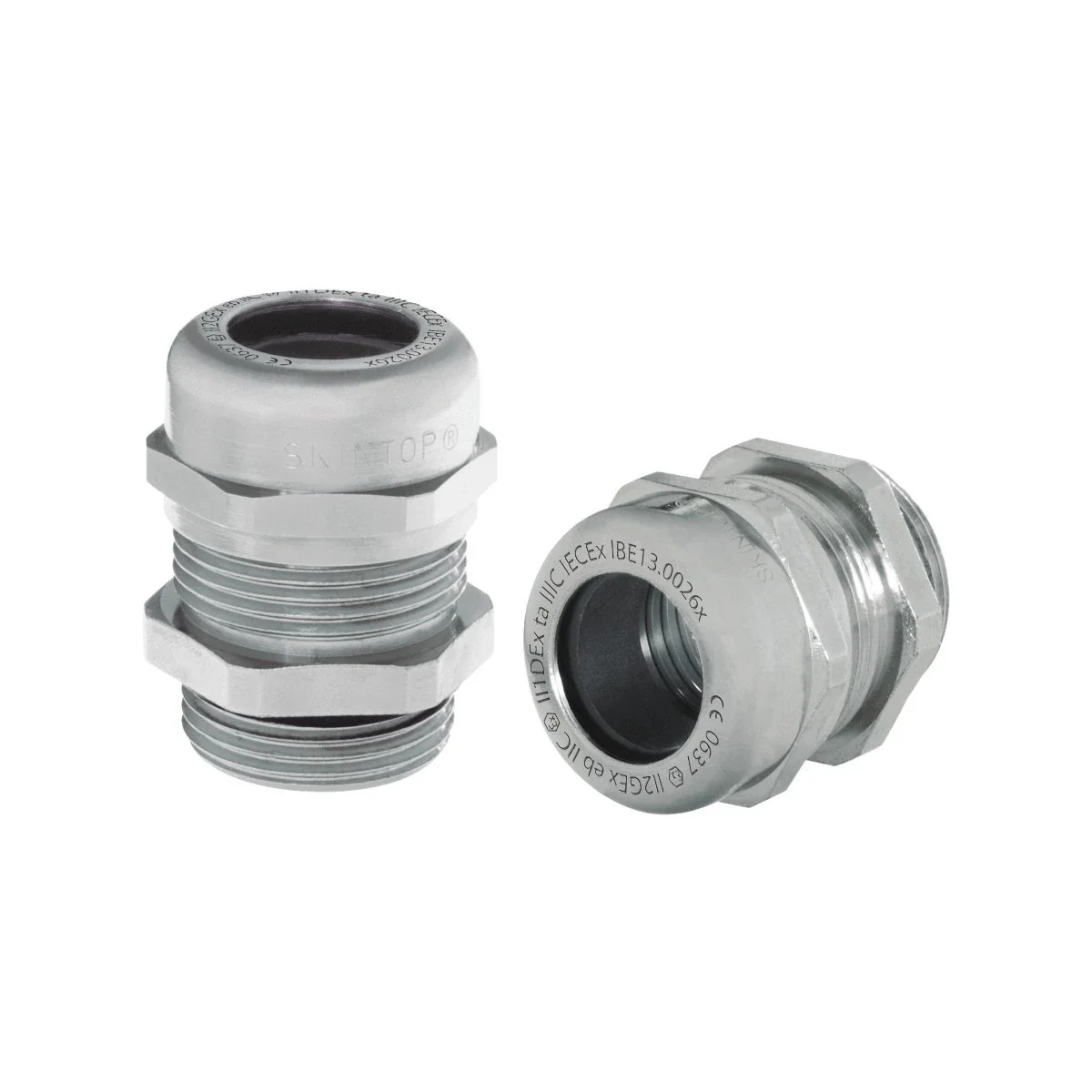

Skintop MS-M 25X1.5 ATEX gland

Technical data

  • Gland length [mm]
    38.5
  • SW wrench size [mm]
    29
  • Thread length [mm]
    8
  • Range of throttled diameters [mm]
    2014-09-17 00:00:00

Other technical data

  • Thread type
    Metric
  • Pitch thread
    1.5 mm
  • Wrench width
    29 mm
  • Material
    Metal
  • Surface protection
    Nickel-plated
  • Glass-fibre reinforced
    no
  • Shock resistant
    yes
  • Bend radius protection/trumpet flare
    no
  • Snapping in opening
    no
  • Multi seal area
    no
  • With strain relief
    yes
  • Separable screw gland
    no
  • Explosion-tested version
    yes
  • For Ex-Zone dust
    20, 21, 22
  • EMC-version
    no
  • Nominal thread size metric/PG
    25
  • Thread length
    8 mm
  • Suitable for cable diameter
    9 ... 17 mm
  • Material quality
    Brass
  • Halogen free
    no
  • Degree of protection (IP)
    IP68
  • Colour
    Other
  • With locknut
    no
  • Model
    Straight
  • Flat cable coupling
    no
  • Type of sealing
    Sealing ring
  • Operating temperature
    -40 ... 100 °C
  • For Ex-zone gas
    1, 2
  • For armoured cable
    no
  • Screened
    no
