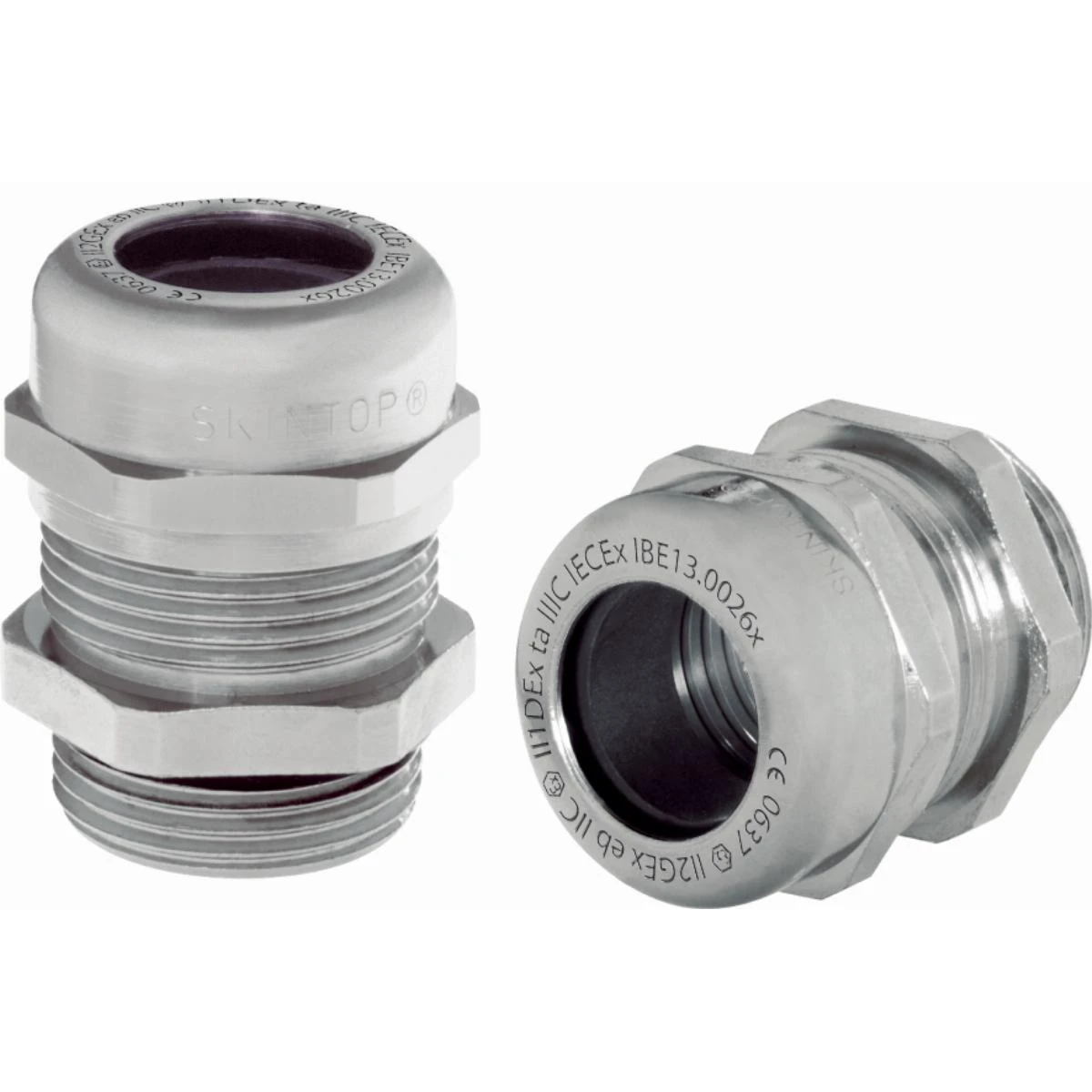

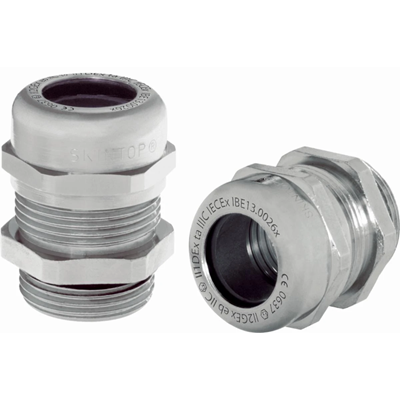

Skintop MS-M 20X1.5 ATEX gland 53112720
local index:
RRR093LAPP
Catalog No:
53112720
EAN code:
4044773170191
Price:
11,09 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description
Skintop MS-M 20X1.5 ATEX gland
Technical data
-
Gland length [mm]37
-
SW wrench size [mm]24
-
Thread length [mm]8
-
Range of throttled diameters [mm]7-13
Other technical data
-
Thread typeMetric
-
Pitch thread1.5 mm
-
Wrench width24 mm
-
MaterialMetal
-
Surface protectionNickel-plated
-
Glass-fibre reinforcedNo
-
Shock resistantYes
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionYes
-
For Ex-Zone dust20, 21, 22
-
EMC-versionNo
-
Nominal thread size metric/PG20
-
Thread length8 mm
-
Suitable for cable diameter7 ... 13 mm
-
Material qualityBrass
-
Halogen freeNo
-
Degree of protection (IP)IP68
-
ColourOther
-
With locknutNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-40 ... 100 °C
-
For Ex-zone gas1, 2
-
For armoured cableNo
-
ScreenedNo
Manufacturer details
-
ManufacturerLapp Kabel Sp. z o.o.
-
Address55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Tax identification number8971621588
