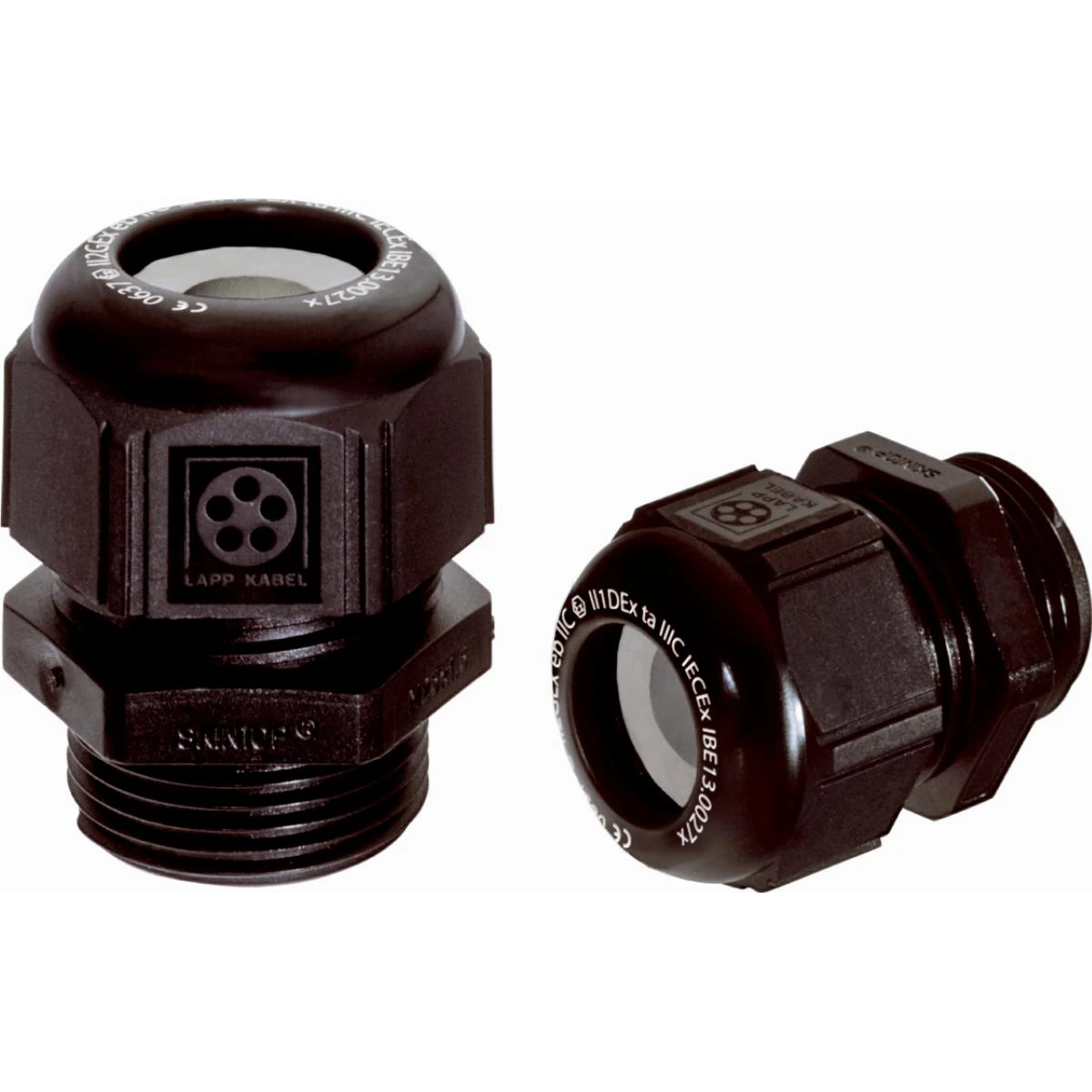

Skintop KR-M 20X1.5 ATEX plus BK gland 54115225
local index:
RRR112LAPP
Catalog No:
54115225
EAN code:
4044773335675
Price:
3,81 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print
Ask about the product
Product description
Skintop KR-M 20X1.5 ATEX plus BK gland
Technical data
-
Gland length [mm]34-37
-
ColorBlack
-
HandleM20x1.5
-
Accurate colorBlack
-
Thread length [mm]9
-
SW wrench size [mm]25
-
Range of throttled diameters [mm]2014-05-10 00:00:00
Other technical data
-
Thread typeMetric
-
Pitch thread1.5 mm
-
Wrench width25 mm
-
MaterialPlastic
-
Surface protectionUntreated
-
Glass-fibre reinforcedYes
-
Shock resistantYes
-
RAL-number9005
-
With locknutNo
-
ModelStraight
-
Flat cable couplingNo
-
Type of sealingSealing ring
-
Operating temperature-20 ... 80 °C
-
For Ex-zone gas1, 2
-
For armoured cableNo
-
ScreenedNo
-
Nominal thread size metric/PG20
-
Thread length9 mm
-
Suitable for cable diameter5 ... 10 mm
-
Material qualityPolyamide (PA)
-
Halogen freeNo
-
Degree of protection (IP)IP68
-
ColourBlack
-
Bend radius protection/trumpet flareNo
-
Snapping in openingNo
-
Multi seal areaNo
-
With strain reliefYes
-
Separable screw glandNo
-
Explosion-tested versionYes
-
For Ex-Zone dust20, 21, 22
-
EMC-versionNo
Manufacturer details
-
ManufacturerLapp Kabel Sp. z o.o.
-
Address55-040 Kobierzyce ul. Profesjonalna 1 Biskupice Podgórne 1
-
Tax identification number8971621588
