LAPP KABEL

Skintop BS PG 11 RAL 7001 SGY gland 53015620

local index:
RRR195LAPP
Catalog No:
53015620
EAN code:
4044773160314
Price:
0,89 €
gross / pcs.
including VAT 23%
Availability:
Product on individual request
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

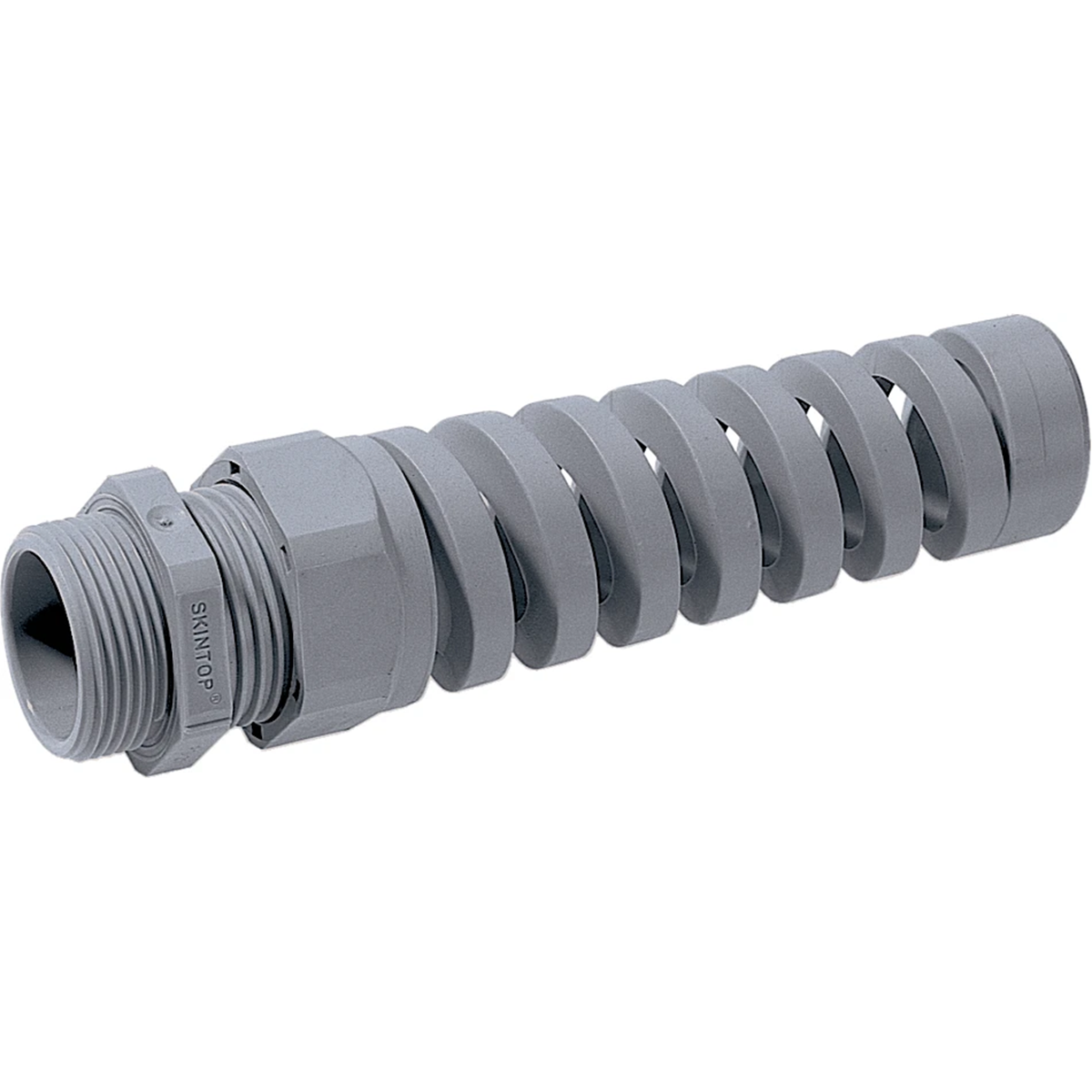

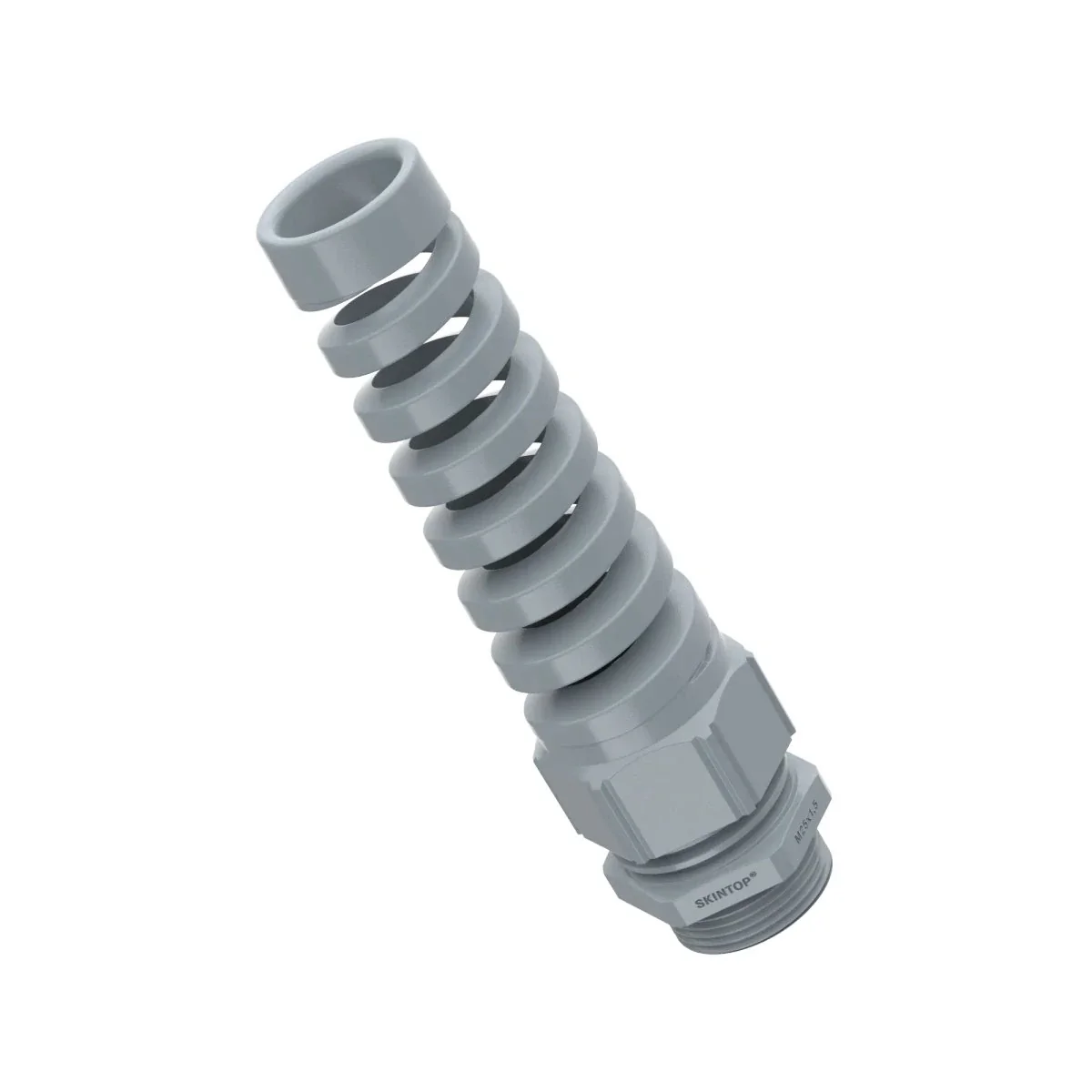

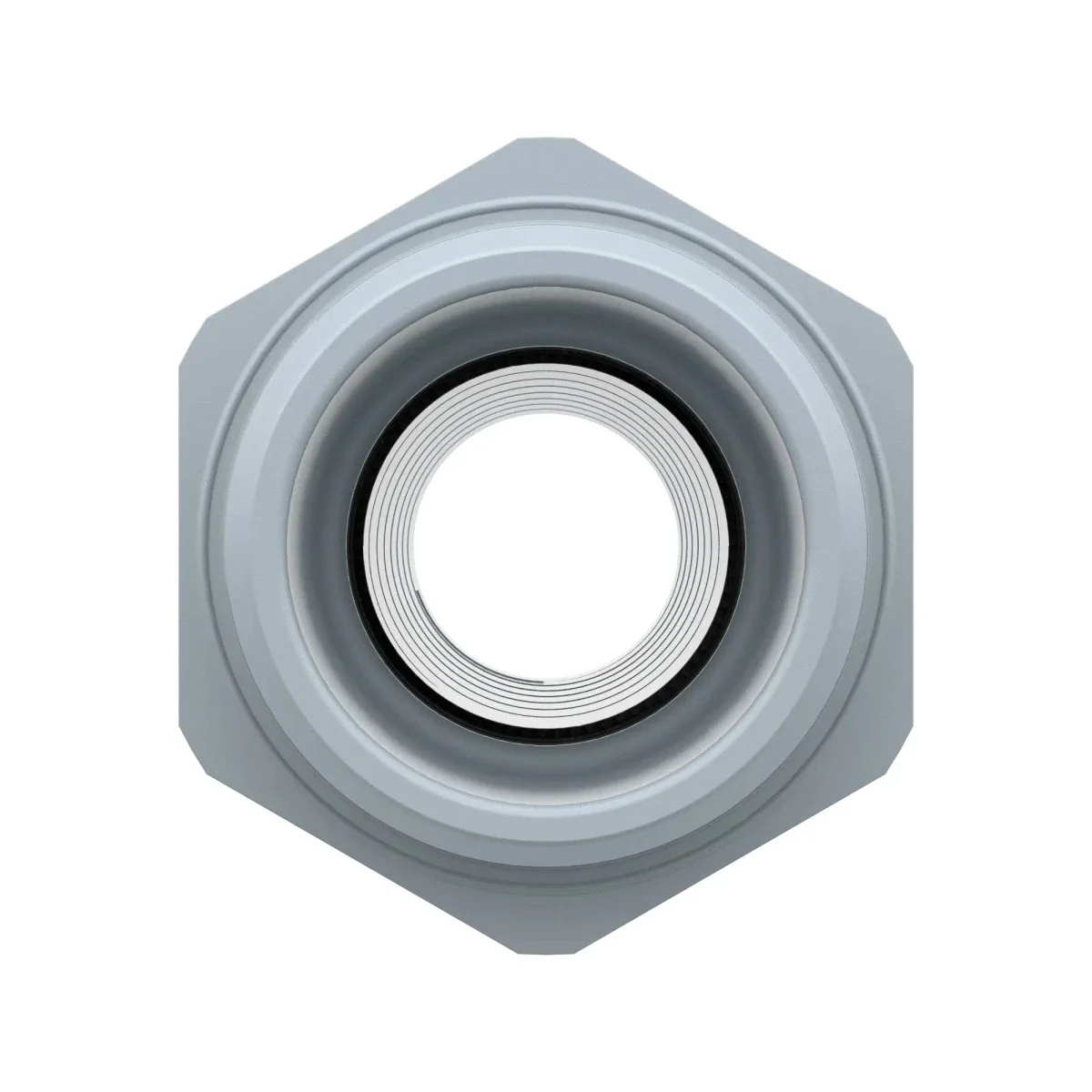

Skintop BS PG 11 RAL 7001 SGY gland

Technical data

  • Gland length [mm]
    86
  • Color
    Gray
  • Range of throttled diameters [mm]
    2014-04-10 00:00:00
  • Thread length [mm]
    8
  • SW wrench size [mm]
    22
  • Accurate color
    Gray

Other technical data

  • Thread type
    PG
  • Thread length
    8 mm
  • Suitable for cable diameter
    4 ... 10 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    no
  • Degree of protection (IP)
    IP68
  • Colour
    Ciemnoszary
  • Bend radius protection/trumpet flare
    yes
  • Snapping in opening
    no
  • Multi seal area
    no
  • With strain relief
    yes
  • Separable screw gland
    no
  • Explosion-tested version
    no
  • EMC-version
    no
  • Nominal thread size metric/PG
    11
  • Wrench width
    22 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    no
  • Shock resistant
    no
  • RAL-number
    7001
  • With locknut
    no
  • Model
    Straight
  • Flat cable coupling
    no
  • Type of sealing
    Sealing ring
  • Operating temperature
    -20 ... 80 °C
  • For armoured cable
    no
  • Screened
    no
