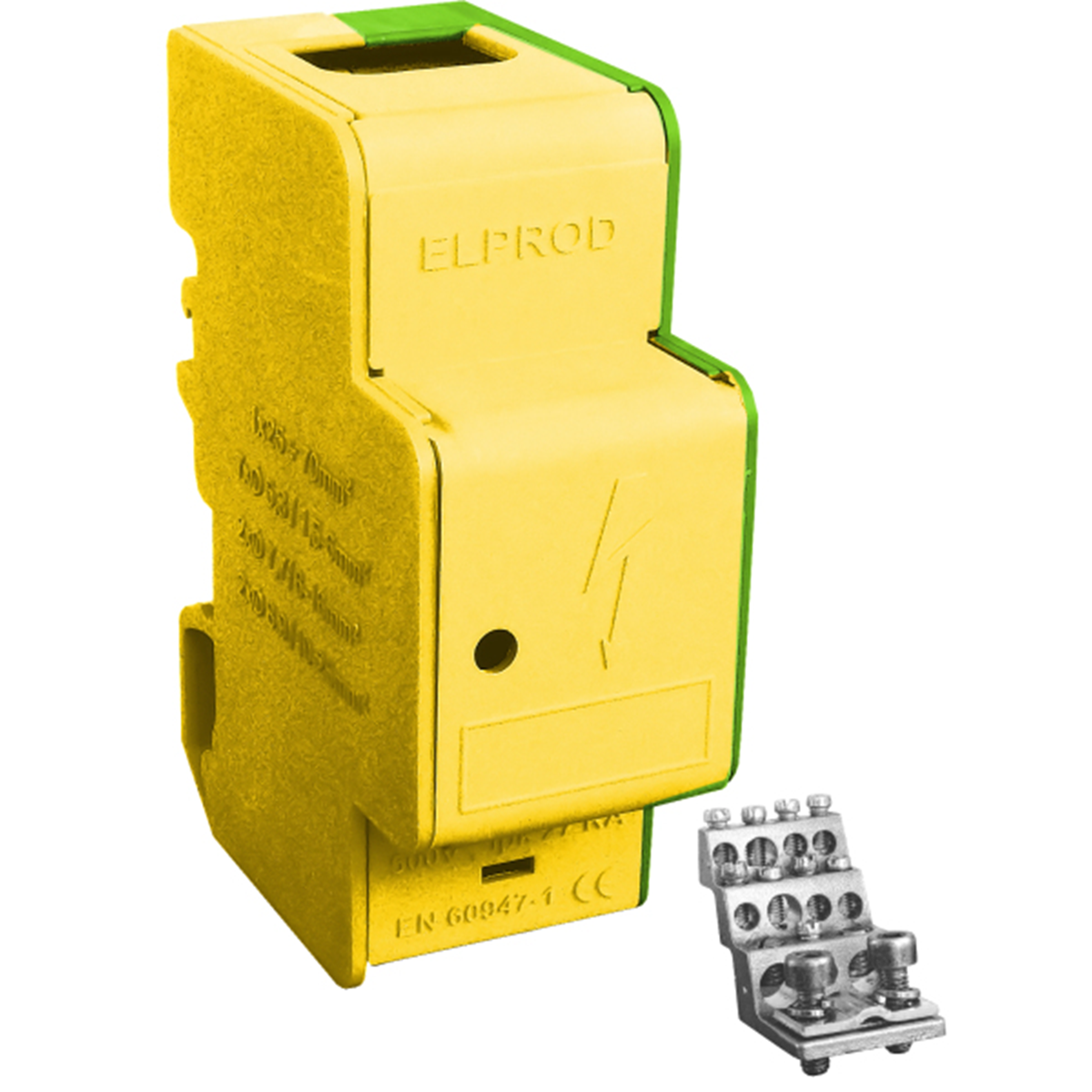

Single-pole modular distribution block TS-35 70² 2x25² 2x16² 7x6² yellow-green 84321009

local index:
RRR011SIME
Catalog No:
84321009
EAN code:
5907813220913
Manufacturer: SIMET
Number of poles: 1
Price:
27,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-pole modular distribution block TS-35 70² 2x25² 2x16² 7x6² yellow-green

Technical data

  • Number of poles
    1
  • PKWIU
    27.12.31.0

Other technical data

  • Number of poles
    1
  • Max. rated current
    125 A
  • Liczba podłączeń > 25 mm²
    4
  • Łączna liczba podłączeń
    13
  • Mounting method
    DIN rail
  • Height
    94 mm
  • Width
    67 mm
  • Contact safe
    Yes
  • Connection type
    Screwing
  • Liczba podłączeń 25 mm²
    2
  • Conductor cross section solid (solid, stranded)
    6 ... 70 mm²
  • Number of clamp positions per pole
    13
  • With PE-rail
    No
  • With N-rail
    No
  • Depth
    18 mm
