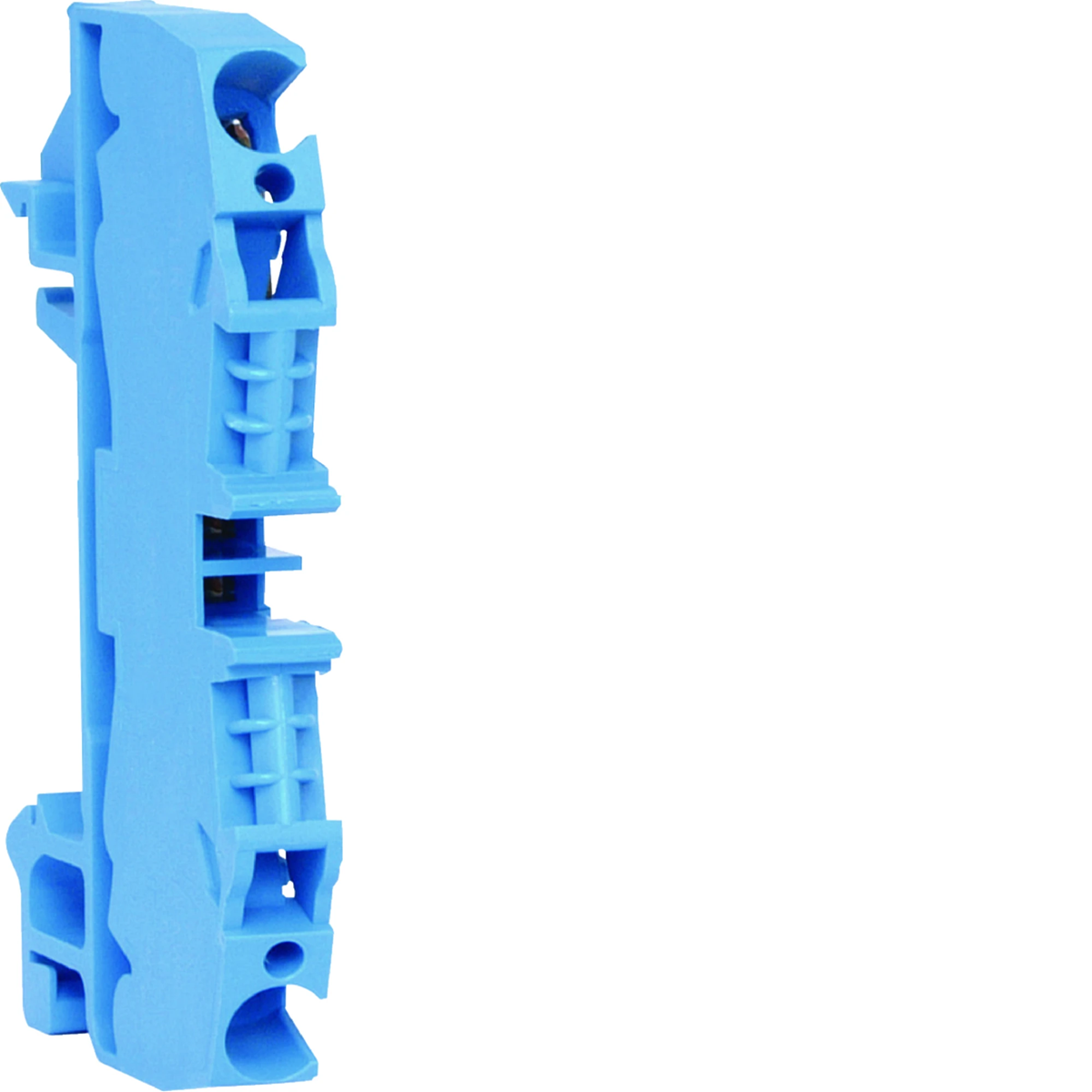

Series self-clamp, N, 2.5mm2 KYA02NH

local index:
RRR757HAGE
Catalog No:
KYA02NH
EAN code:
3250613951245
Manufacturer: HAGER
Depth [mm]: 5
Color: Blue
Rated current [A]: 24
Price:
1,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Color: Blue,
Terminals dedicated to wiring with wire or strand with a hard tip
KYA04LH, KYB10LH can be used in IP54 applications according to IEC 60529 for 1000 V photovoltaic installations

Technical data

  • Depth [mm]
    5
  • Rated current [A]
    24
  • Height [mm]
    42.3
  • Color
    Blue
  • Width [mm]
    57
  • PKWIU
    27.33.13.0

Other technical data

  • Rated current In
    24 A
  • Type of electrical connection 2
    Plug-in connection
  • Material insulation body
    Thermoplastic
  • Type of electrical connection 1
    Plug-in connection
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Colour
    Blue

Manufacturer details

  • Manufacturer
    HAGER POLO Sp. z o. o.
  • Address
    43-100 Tychy Fabryczna 10
  • Tax identification number
    6460015532

Bulk packaging

A kind of package Karton Paleta Karton Paleta
Quantity 100 pcs. 10000 pcs. 100 pcs. 10000 pcs.
Weight (kg) 0,740 97,000 0,740 97,000
Width (m) 0,141 0,800 0,141 0,800
Length (m) 0,044 1,050 0,044 1,050
Depth (m) 0,270 1,200 0,270 1,200
