ROS11\FI-21 switchgear with protections and residual current device ROS11\FI-21

Indice locale:
RIN011SPAM
Numero di catalogo:
ROS11\FI-21
Codice EAN:
5907723044050
Prezzo:
1491,53 zł
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a una settimana (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

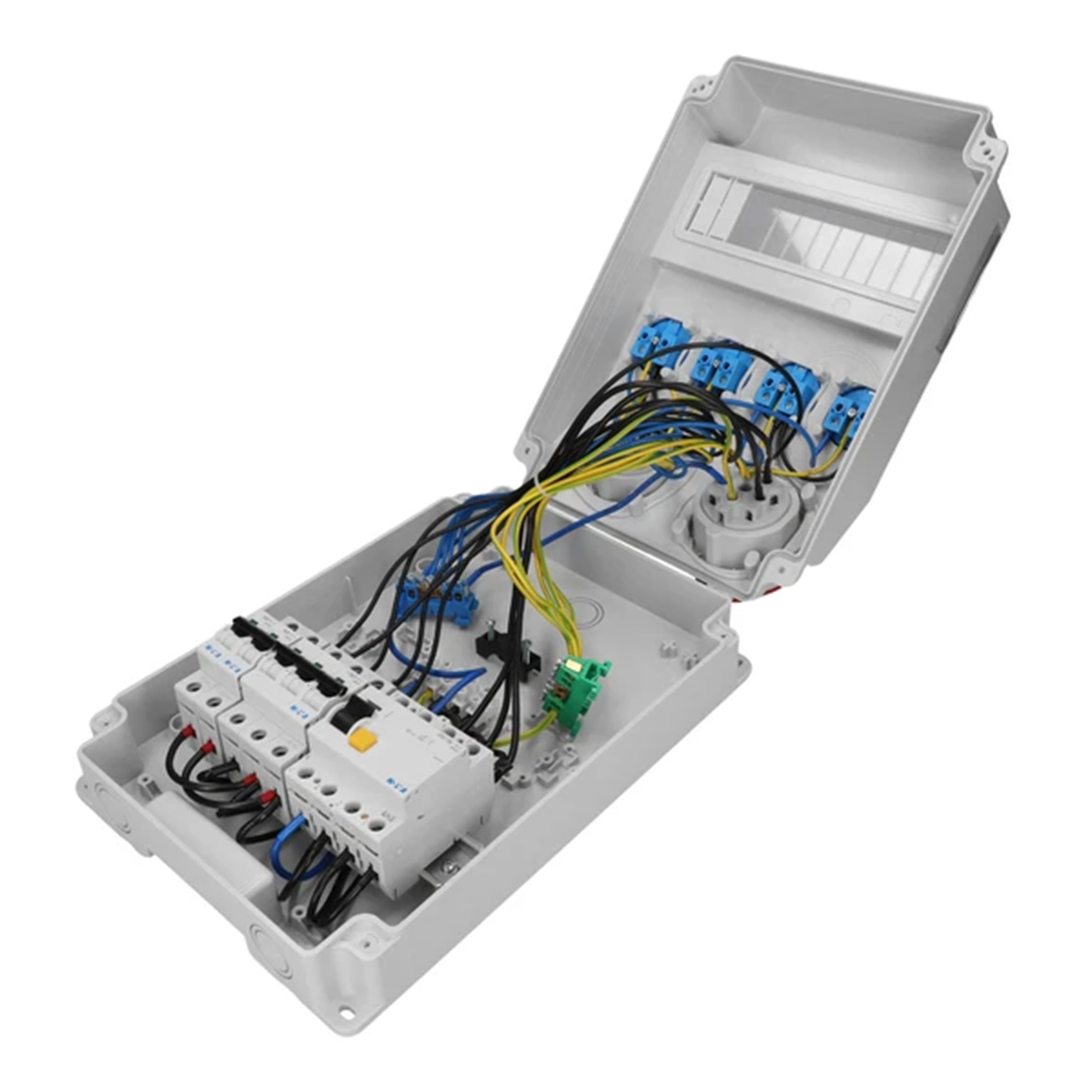

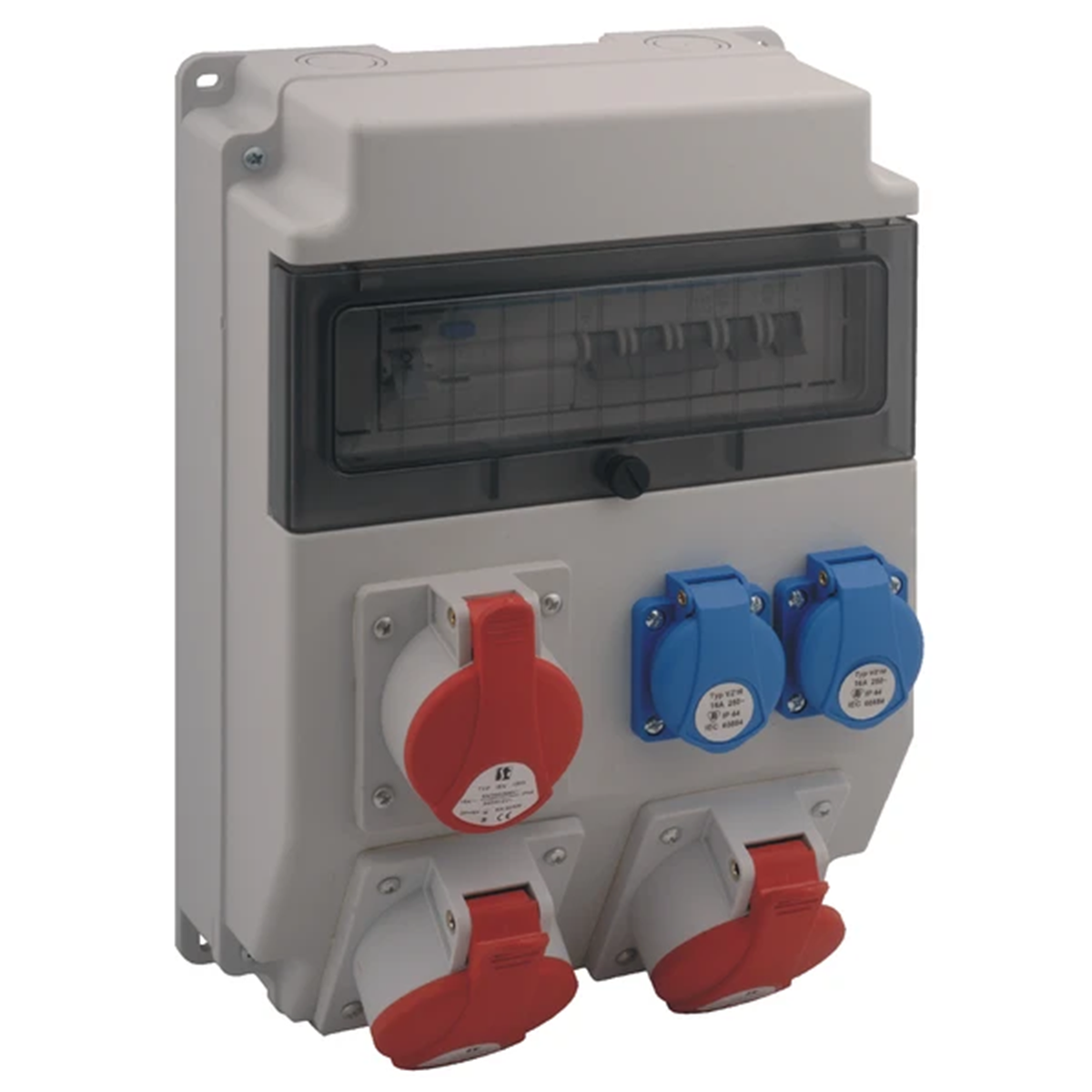

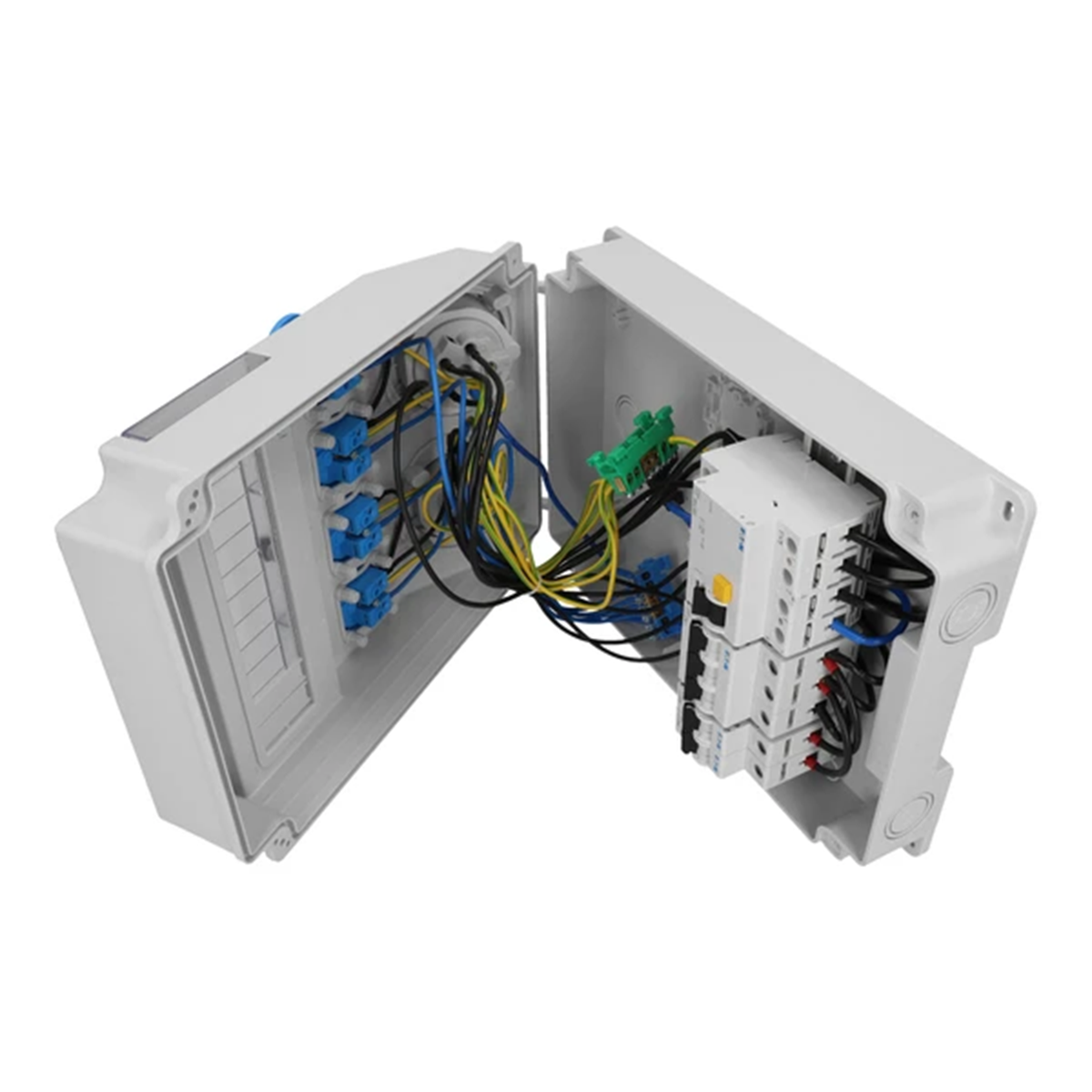

The new ROS type switchboards have many versions of different configurations. The switchgears can be equipped with single and three-phase overcurrent circuit breakers, a power switch or a direction of rotation switch and various types of sockets. The ROS switchgear is characterized by a modern shape, and the latest technologies were used in its production.

Dati tecnici

Altri dati tecnici

  • Model
    Group distributor cabinet
  • Rated current
    32 A
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    1
  • Number of socket outlets with protective contact CEE 7/3 (type F)
    2
  • Main switch
    None

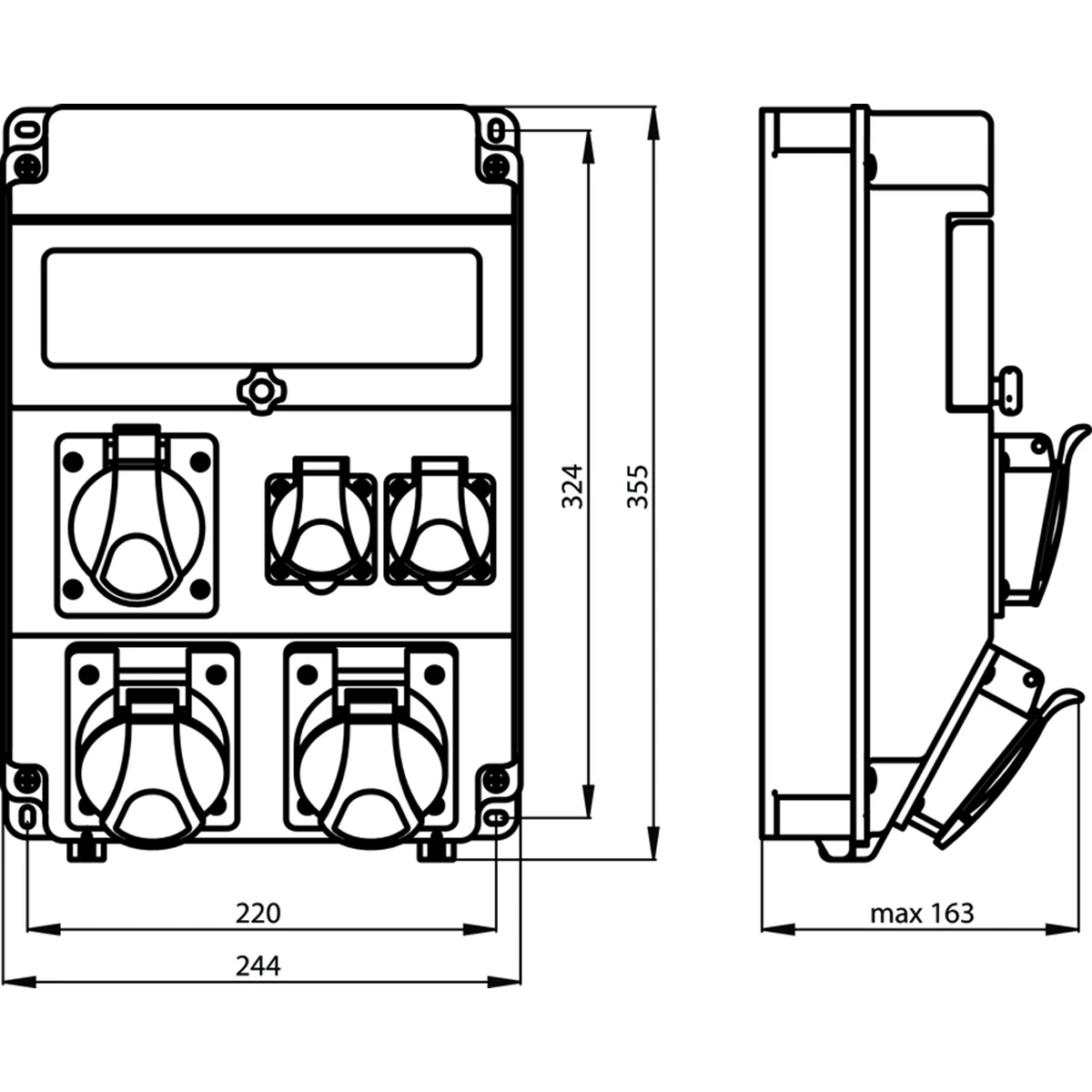

  • Width
    244 mm
  • Depth
    163 mm
  • Rated voltage
    230/400 V
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    1
  • Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)
    0
  • Number of meter panels
    0
  • Main switch rated current
    16 A
  • Height
    355 mm
