El12 and HAGER

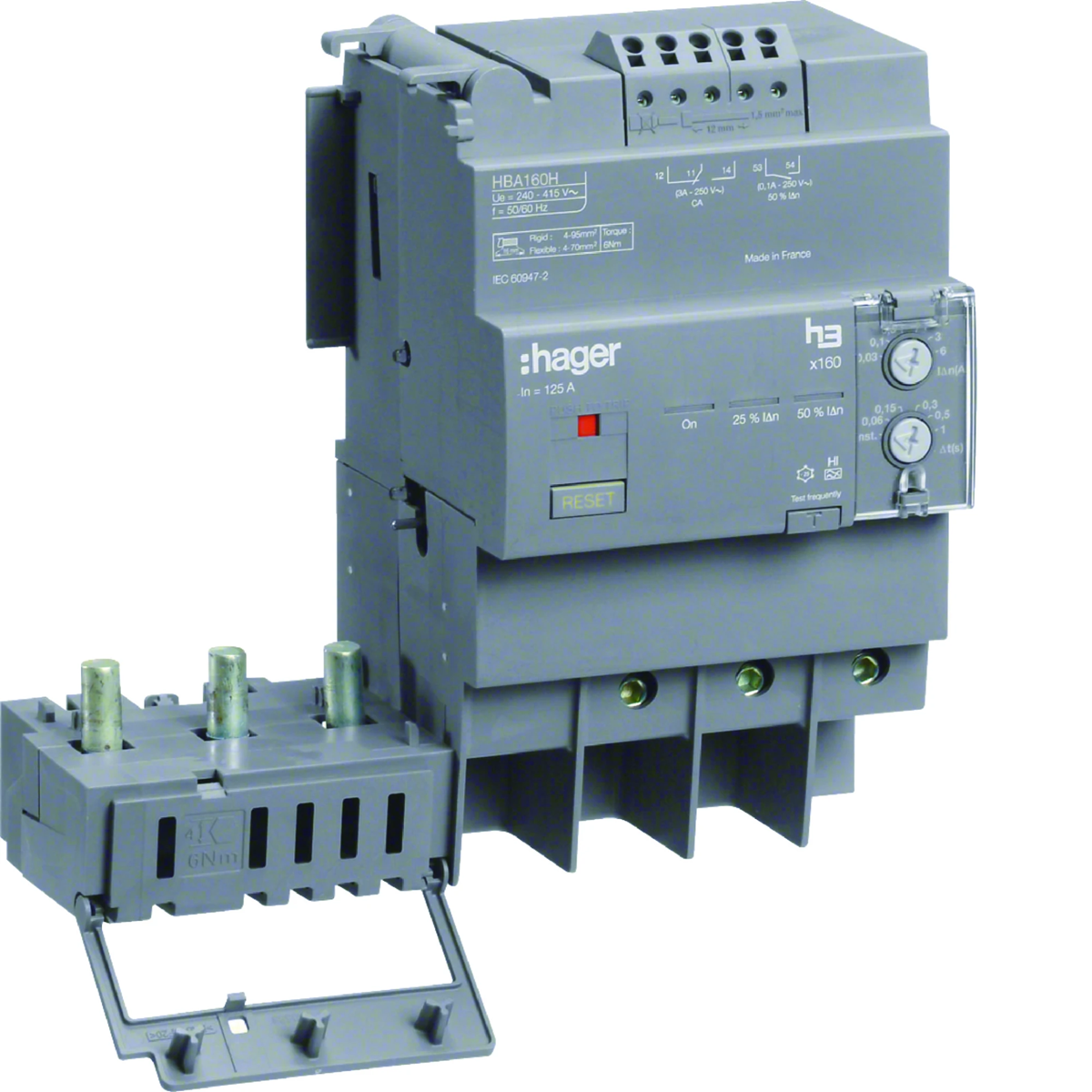

Residual current block 3P 160A, adjustable HBA160H
local index:
RRR529HAGE
Catalog No:
HBA160H
EAN code:
3250613121068
Click on the photo to enlarge
Manufacturer:
HAGER
Rated frequency [Hz]:
50/60
Number of poles:
3
Rated insulation voltage [V]:
500
See full description
Price:
882,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
Residual current block for MCCB, non-adjustable, type A-HI
Technical data
Rated frequency [Hz]
50/60
Rated insulation voltage [V]
500
power loss [W]
22
Rated impulse voltage [kV]
6
PKWIU
27.12.23.0
Number of poles
3
Rated current [A]
160
Power loss per pole [W]
7.3
AC rated voltage [V]
220/415
Other technical data
Nominal voltage
220 ... 415 V
Rated fault current adjustable
Yes
Max. delay time
1000 ms
Number of poles
3
Frequency
50/60 Hz
Rated impulse withstand voltage Uimp
6 kV
Connectable conductor cross section multi-wired
2.5 ... 70 mm²
With interlocking device
Yes
Pollution degree
3
Nominal current
160 A
Rated fault current
0.03 ... 6 A
Delay adjustable
Yes
Surge current capacity
5 kA
Rated insulation voltage Ui
500 V
Connectable conductor cross section solid-core
2.5 ... 95 mm²
Anti-nuisance tripping version
Yes
Degree of protection (IP)
IP40
Ambient temperature during operating
-25 ... 70 °C
Bulk packaging
A kind of package
Karton
Paleta
Quantity
1 pcs.
1 pcs.
100 pcs.
Weight (kg)
1,374
1,375
160,500
Width (m)
0,175
0,240
0,800
Length (m)
0,107
0,120
1,050
Depth (m)
0,165
0,265
1,200
