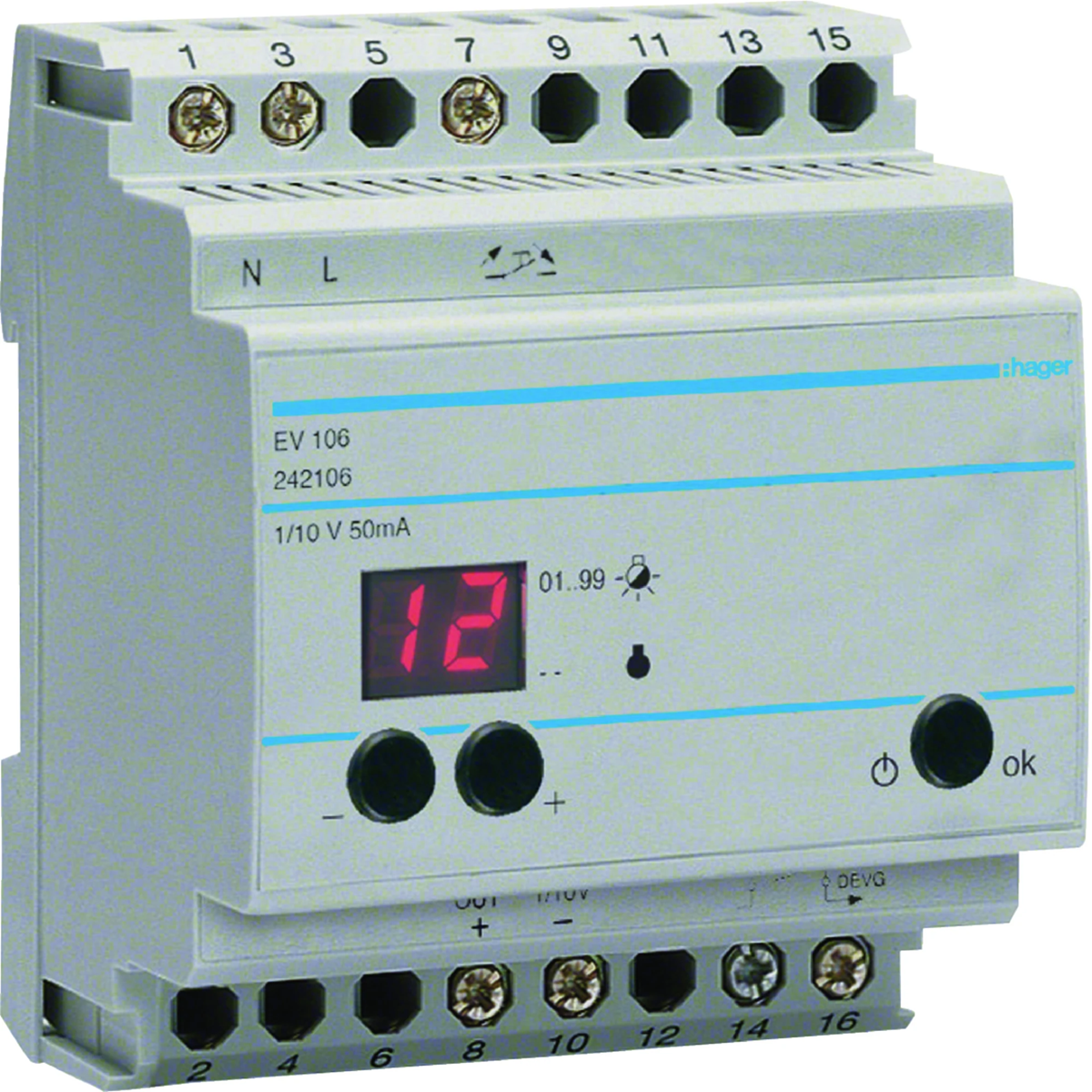

Remote control device for EV106 dimmers
• used for joint control of several remote dimmers or EVG electronic chokes
• display for showing the set brightness level and parameterów
• the ability to connect illuminated pushbuttons for switching on the dimmer up to 5mA
• minimum and maximum dimming adjuster
• status indicator output
• adjustable speed of brightness changes
• adjustable dimming and brightening times.
• for controlling EV100 and EV102 remote dimmers (max. 30 pcs.)
• for controlling EVG electronic glow chokes.
• max. quiescent current of illuminated buttons 5 mA.
• display for showing the set brightness level and changes
set values of parameters:
- speed of brightness changes (normal dimming)
- minimum brightness (0...49%)
- maximum brightness (51...99%)
- adjustable brightening time up to 99s
- adjustable dimming time up to 99s.
• output contact for dimmer output status indicator (0V: off; > 0V on)

Number of modules

4
Level of security

IP20
PKWIU

27.33.11.0

Power [VA]

3680
Number of modules

4

Other technical data

Mounting method

DRA (DIN-rail adapter)
Rated current

10 A
Frequency

50 ... 50 Hz
Dimming DALI

No
Dimming Touch and Dim

No
Dimming manufacturer's proprietary system

No
Substation input

No
Applicable with button

Yes
Applicable with presence indicator

No
Applicable with transmission button

No
Device width

71 mm
Device depth

65 mm

Control current

50 mA
Nominal voltage

230 V
Dimming 1-10 V

Yes
Dimming DSI

No
Dimming with push-button

Yes
Method of operation

Turn/push button
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

Yes
Applicable with infrared button

No
Device height

85 mm

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	1 pcs.	36 pcs.	864 pcs.
Weight (kg)	0,274	0,317	10,089	265,136
Width (m)	0,071	0,082	0,321	0,800
Length (m)	0,087	0,077	0,239	1,106
Depth (m)	0,066	0,093	0,369	1,200
