Click on the photo to enlarge

POKÓJ

Protective strip LGO-16 A14-4200

local index:
RRR011POKO
Catalog No:
A14-4200
EAN code:
5902626103453
Price:
304,27 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

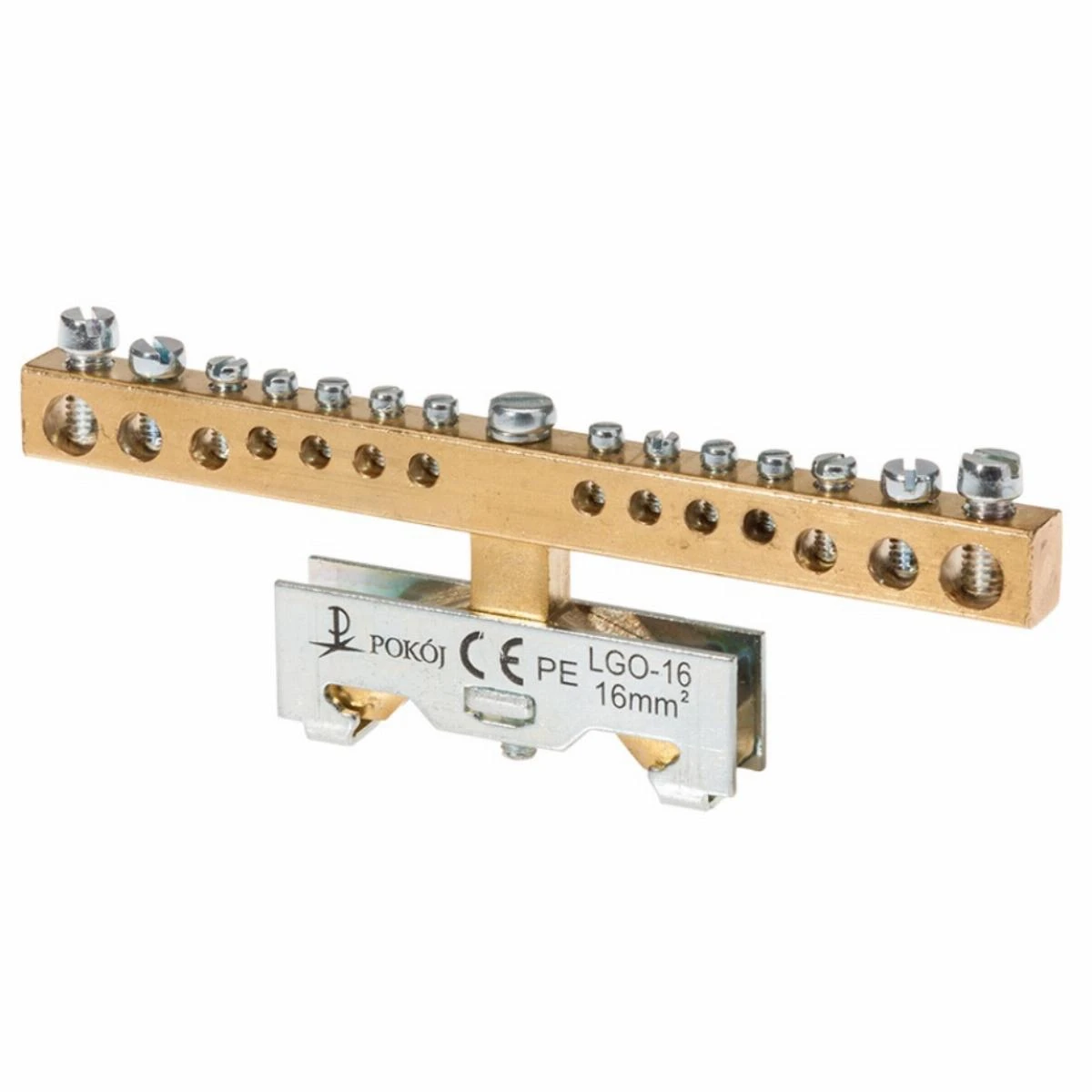

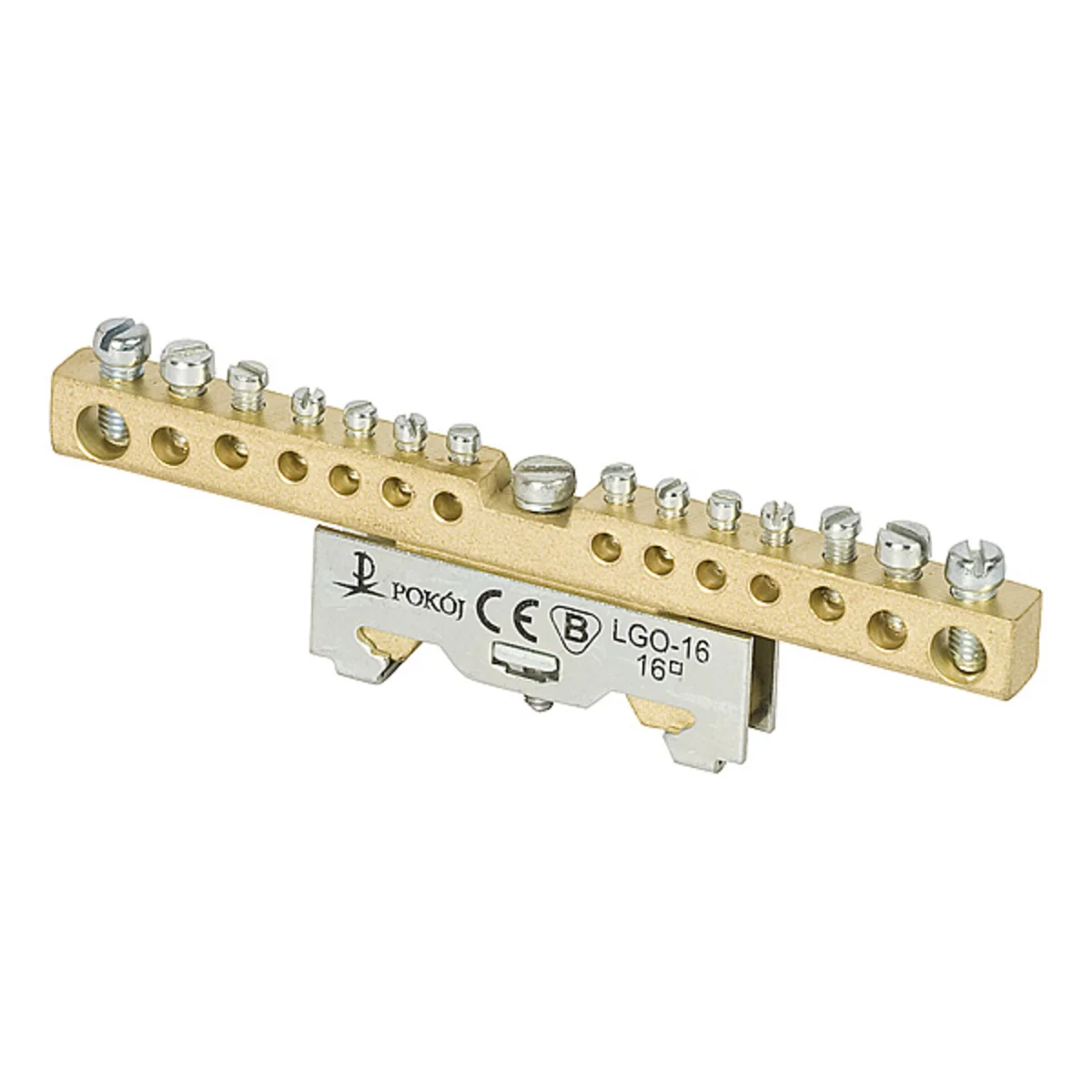

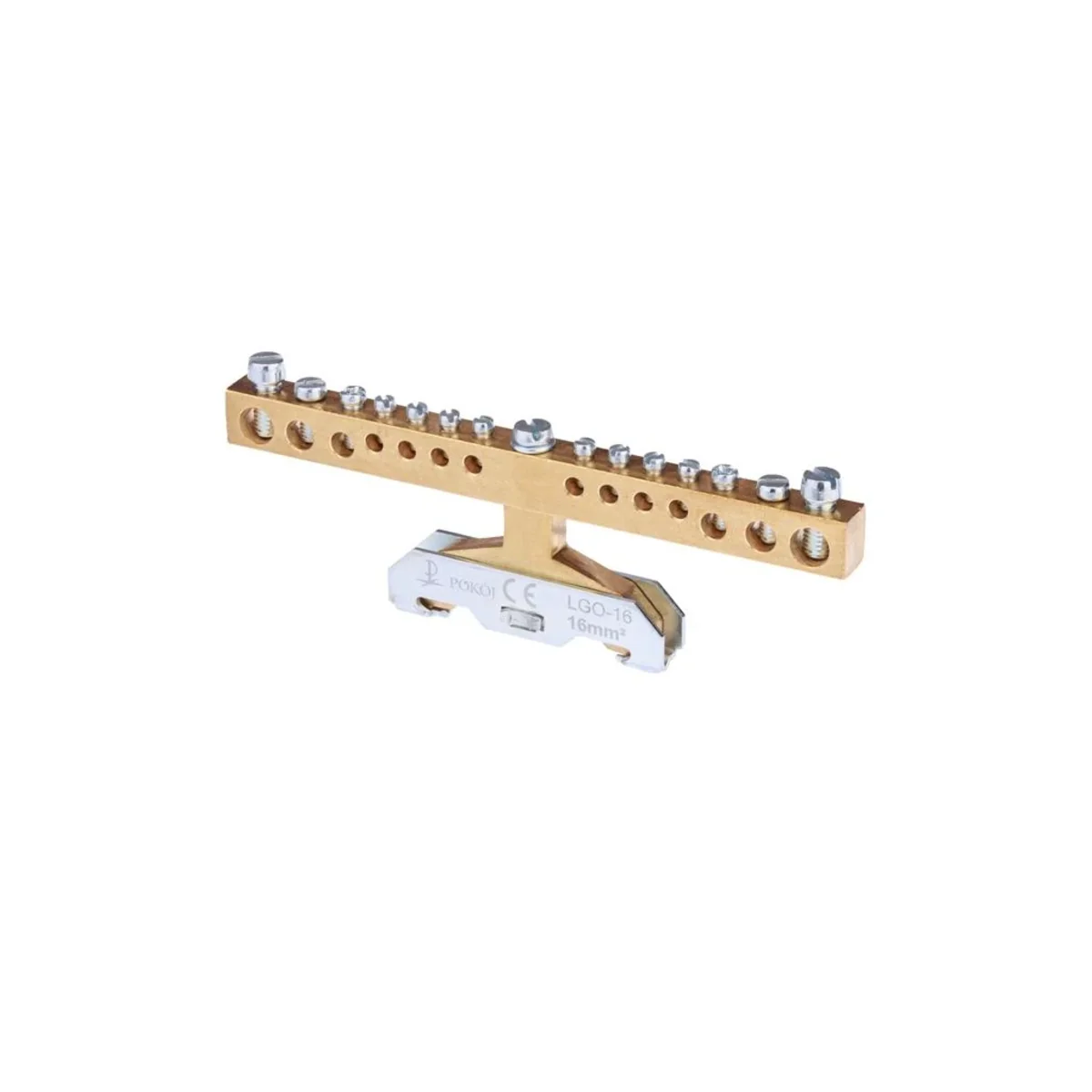

Protective strip LGO-16

Technical data

  • Pieces in the package
    15

Other technical data

  • PEN function possible
    yes
  • Connectable conductor cross section fine-strand with cable end sleeve
    4 ... 25 mm²
  • Connectable conductor cross section multi-wired
    1 ... 10 mm²
  • Type of electrical connection 2
    Screw connection
  • Number of levels
    1
  • Mounting method
    DIN rail (top hat rail) 35 mm
  • Operating temperature
    -25 ... 110 °C
  • Width/grid dimension
    110 mm
  • Length
    10 mm
  • Colour
    Other
  • Connectable conductor cross section fine-strand without cable end sleeve
    4 ... 25 mm²
  • Connectable conductor cross section solid-core
    5 ... 16 mm²
  • Type of electrical connection 1
    Screw connection
  • Connection position
    Sideways
  • Number of clamp positions per level
    14
  • Material insulation body
    None
  • Inflammability class of insulation material according to with UL94
    Other
  • Wysokość przy najniższym sposobie montażu
    31 mm
  • Closing plate required
    no
