Potential equalization rail 1809/M 5015081

local index:
RPU030OBOB
Catalog No:
5015081
EAN code:
4012195378310
Manufacturer: OBO BETTERMANN
Color: Gray
Accurate color: Gray
Price:
37,27 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

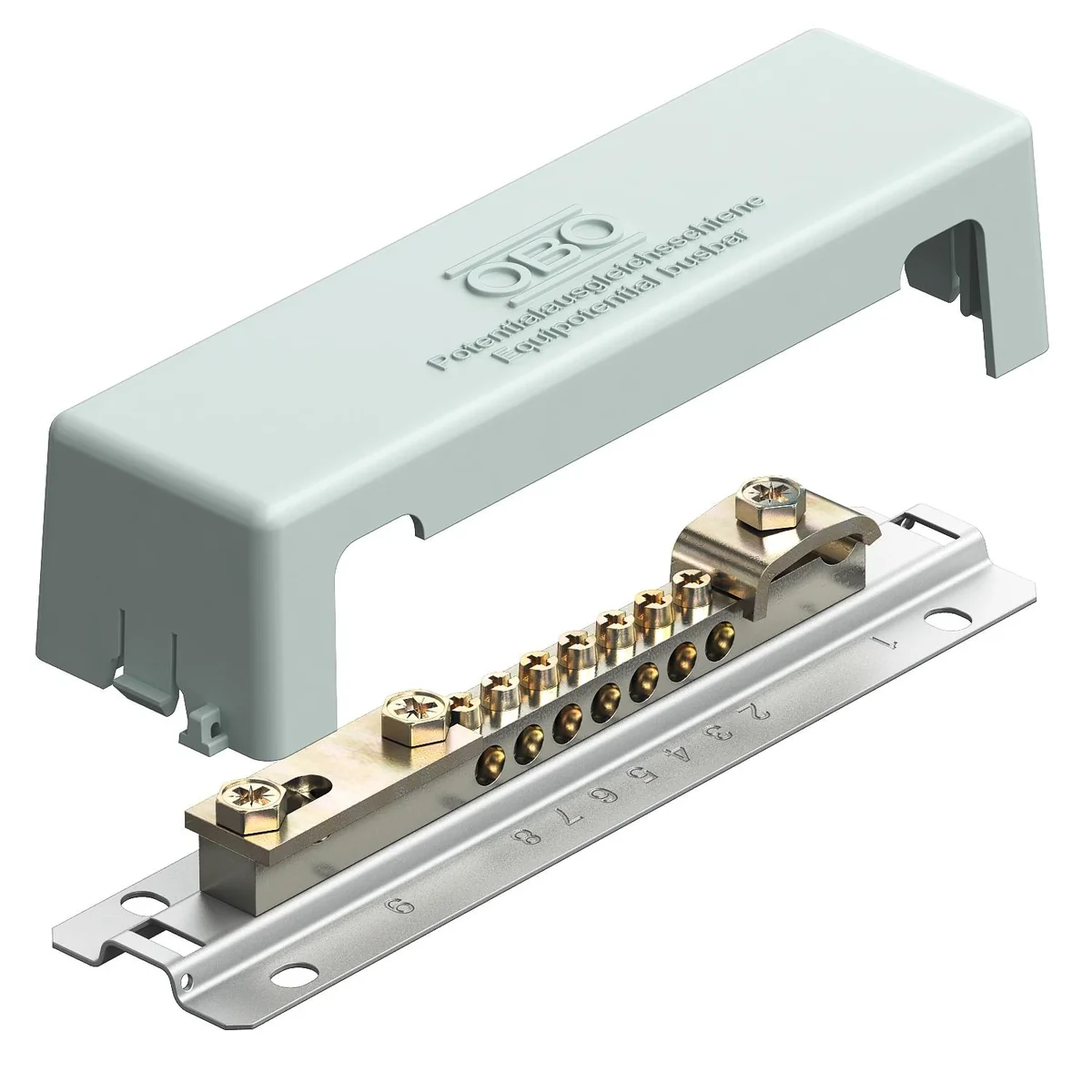

Equipotential bonding bar with metal base for potential equalization according to DIN VDE 0100-410/-540 and lightning potential equalization according to DIN VDE 0185-305
Connection possibilities:
• 7 x single or stranded wire up to 25 [mm]² or rope up to 16 [mm]²
• 1 x round cable Rd 8-10
• 1 x flat bar for FL 30 or round cable Rd 8-10
• Polystyrene lid, gray
• Steel base, strip galvanized
• Brass terminal block, nickel-plated
• Bolts and covers made of galvanized steel
• 100 kA (10/350)

lightning current discharge capacity



Technical data

  • Color
    Gray
  • PKWIU
    27.33.13.0
  • Accurate color
    Gray

Bulk packaging

A kind of package Skrzynia Karton Paleta
Quantity 1 pcs. 50 pcs. 1200 pcs.
Weight (kg) 0,304 15,674 398,676
Volume (m3) 0,001 0,028 0,912
Width (m) 0,050 0,288 0,800
Length (m) 0,055 0,395 1,200
Depth (m) 0,190 0,249 0,950
