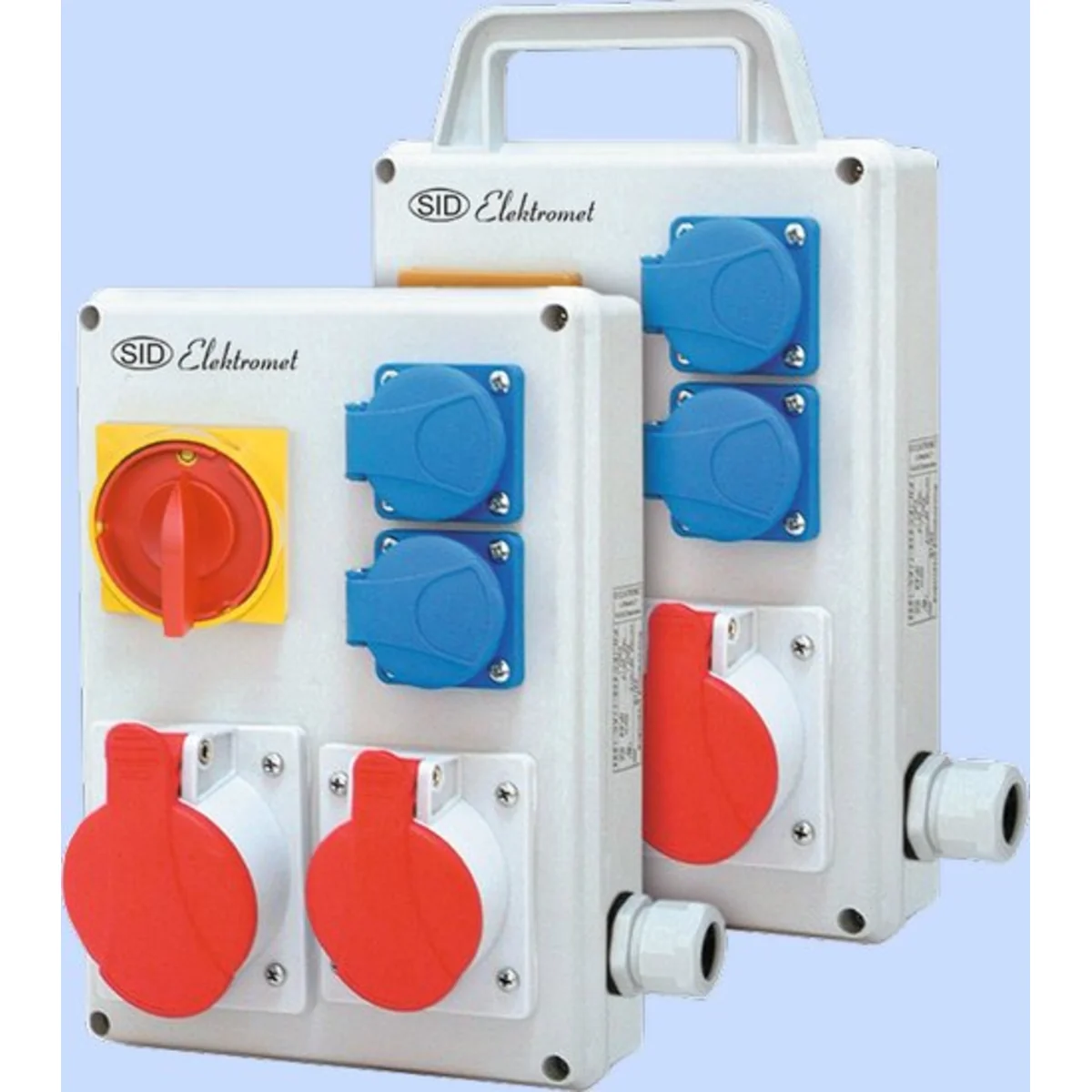

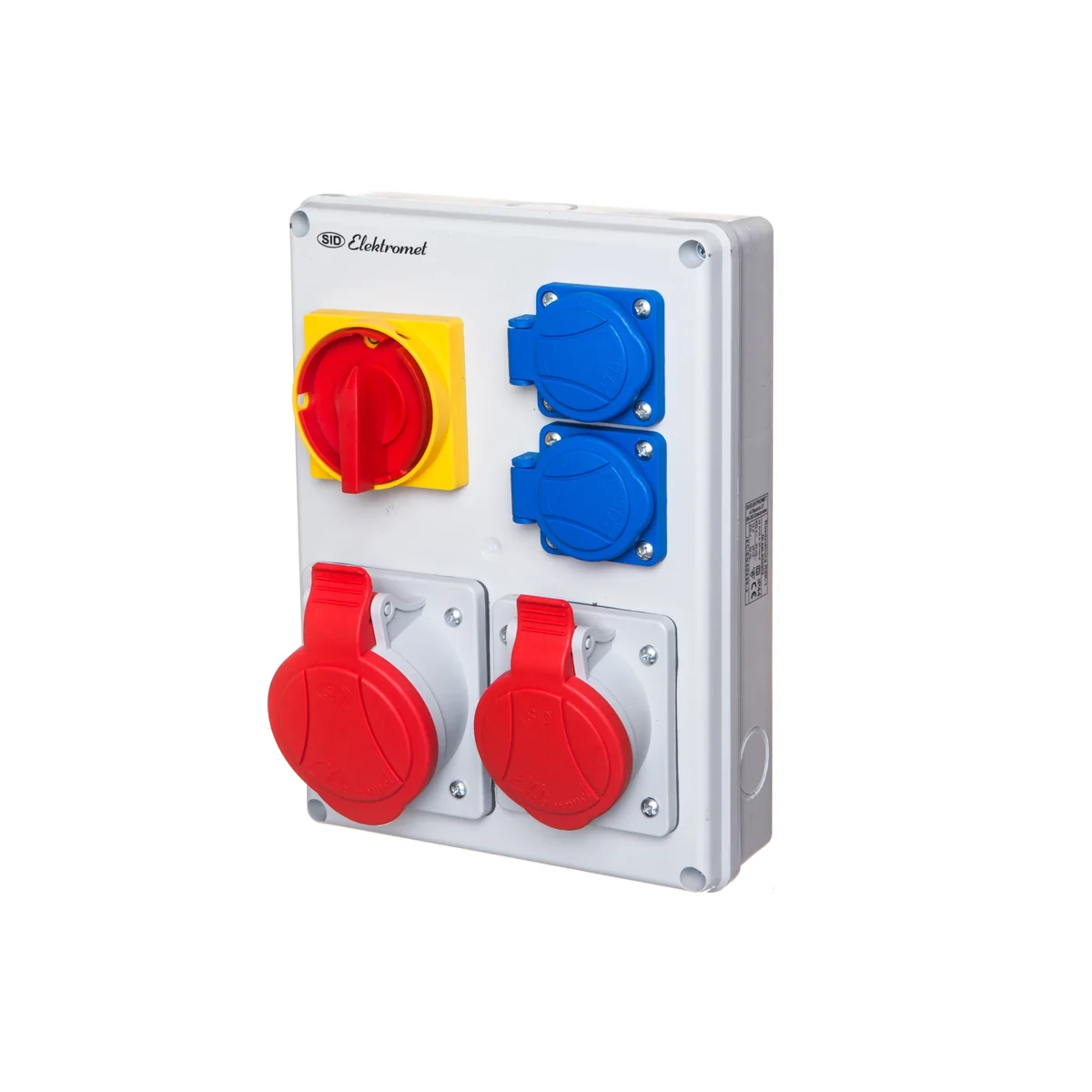

Portable construction switchgear RSK-1 ŁUK 40-12 IP44 940002

local index:
RIN120ELDZ
Catalog No:
940002
EAN code:
5906197482047
Manufacturer: ELEKTROMET
Depth [mm]: 62
Rated current [A]: 32
Level of security: IP44
Price:
80,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 20 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Number of sockets 32A 3P+N+Z 400V: 1 Number of sockets 16A 3P+N+Z 400V: 1 Number of sockets 16A 2P+Z 250V: 2 Disconnector: ARC 40-12

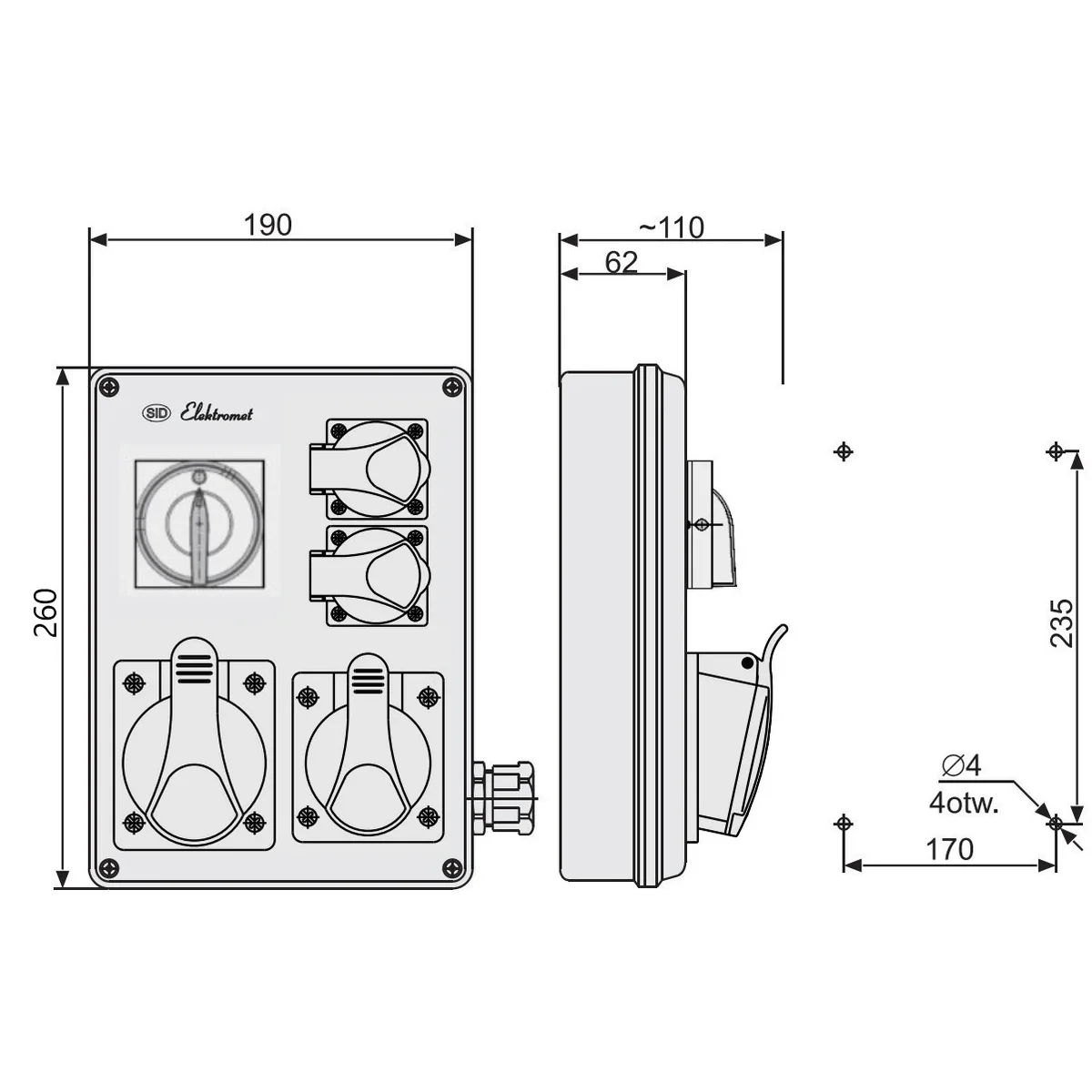

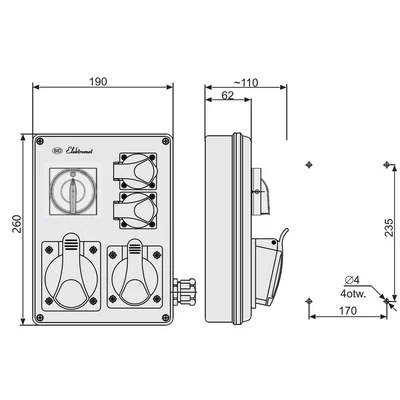

Technical data

  • Depth [mm]
    62
  • Level of security
    IP44
  • Height [mm]
    260
  • Rated current [A]
    32
  • Width [mm]
    190
  • PKWIU
    27.12.31.0

Other technical data

  • Model
    Distributor cabinet
  • Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)
    1
  • Main switch
    Power-cut-out switch
  • Main switch rated current
    40 A
  • Rated voltage
    230/400 V
  • Height
    260 mm
  • Housing material
    Plastic
  • Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)
    2
  • Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)
    1
  • Number of poles main switch
    3
  • Degree of protection (IP)
    IP44
  • Width
    190 mm
  • Depth
    110 mm

Bulk packaging

A kind of package Sztuka
Quantity 1 pcs.
Weight (kg) 1,340
Width (m) 0,190
Length (m) 0,110
Depth (m) 0,260
