The system of installation switches and signaling lamps EVESYS is intended for installation in switchgears adapted to modular apparatus. They are used for switching on, switching off, switching and signaling in electrical circuits, e.g. control, signaling, control, etc. The switches can be sealed in the on and off position.

Advantages:
→ the family of installation switches and control lamps extends the EVE modular apparatus system,
→ all connectors and lamps are made in a modular form - module width 18 mm.
→ the distance between the contacts of the switches in the open state is greater than 3 mm,
→ switches and lamps are equipped with windows for attaching labels denoting the circuit in which they are installed.

Depth [mm]

65
Width [mm]

45
Weight [g]

80
PKWIU

27.33.13.0

Rated current [A]

16

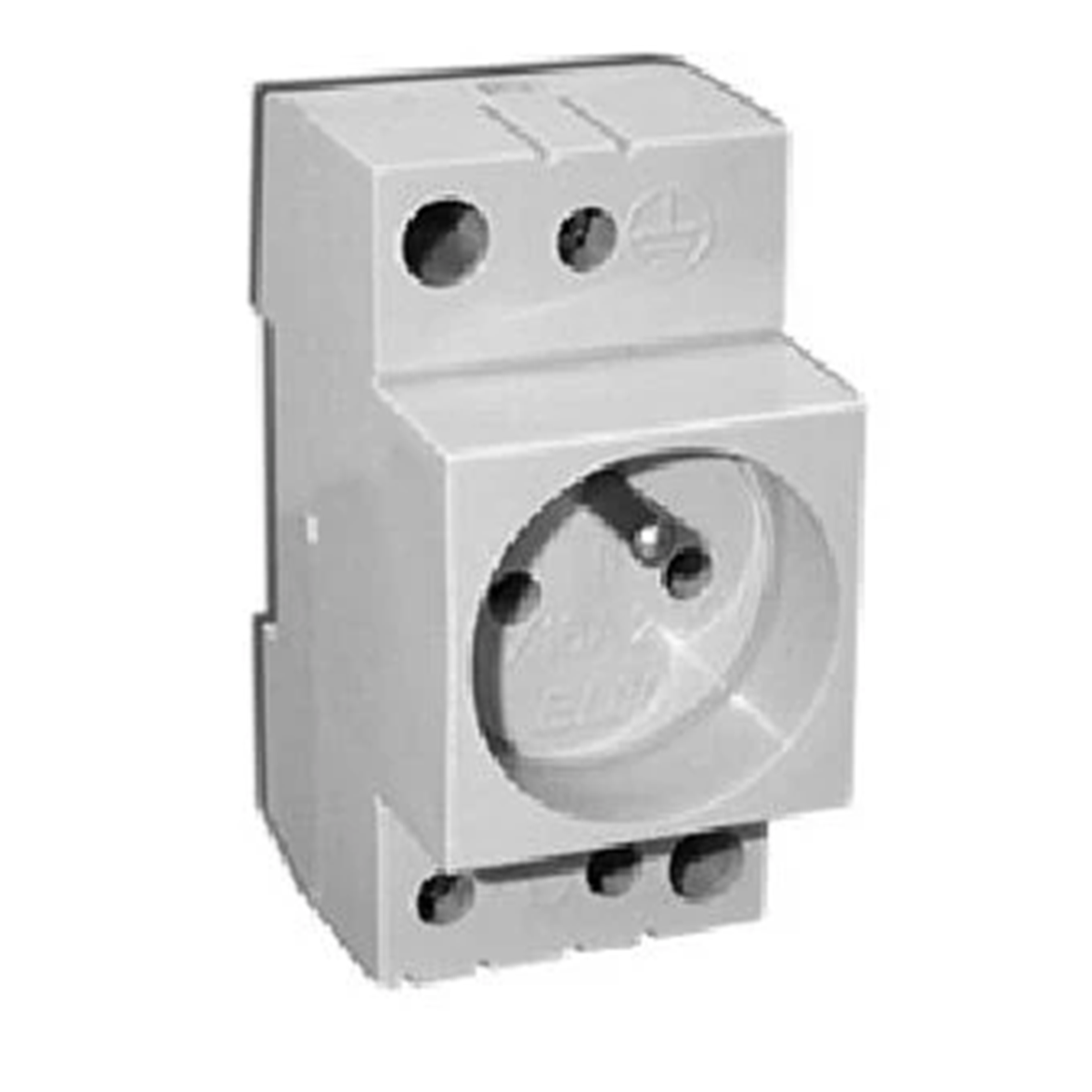

Type

T-2P+Z P
Height [mm]

95

Other technical data

Model

Earthing pin
Colour

Grey
Type of fastening

Snap mounting (engagement)
Halogen free

Yes
Device width

45 mm
Device depth

65 mm

Number of units

1
Mounting method

Other
Material

Plastic
Suitable for degree of protection (IP)

IP20
Device height

90 mm

A kind of package	Pudełko	Pudełko
Quantity	5 pcs.	100 pcs.
Weight (kg)	12,200	-
Volume (m3)	0,040	-
Width (m)	0,250	-
Length (m)	0,310	-
Depth (m)	0,510	-
