Plastic distribution board ECOLINE series stationary 32/5 16/5 2GS R.L-0-P without protection 90EKO011

Name: Plastic distribution board ECOLINE series stationary 32/5 16/5 2GS R.L-0-P without protection
Brand: PCE
SKU: RSR007PCEQ
Price: 357.23 PLN
Availability: BackOrder

local index:

RSR007PCEQ

Catalog number:

90EKO011

EAN code:

5902082010531

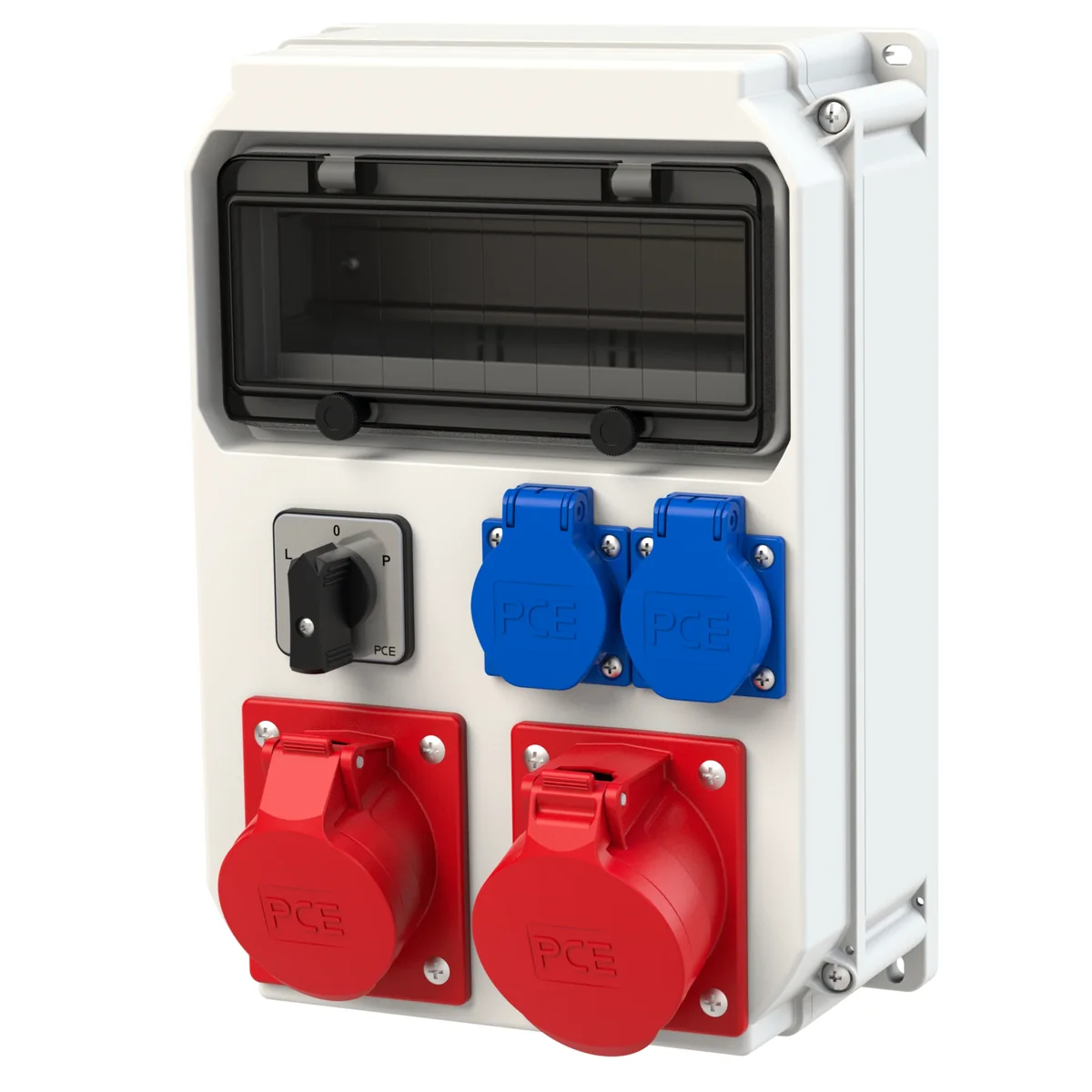

Plastic distribution board ECOLINE series stationary 32/5 16/5 2GS R.L-0-P without protection

Click on the photo to enlarge

Manufacturer: PCE

Price:

357,23 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Files to download

Technical data

Other technical data

Model

Distributor cabinet
Rated current

16 A
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE)

2
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE)

0
Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE)

0
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE)

1
Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE)

0
Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE)

0
Number of socket outlets Swiss standard type 13

0
Number of socket outlets Swiss standard type 23

0
Main switch

Other
Number of miniature circuit breakers (MCB)

0
Number of earth leakage switches 30 mA

0
Number of earth leakage switches 300 mA

0
Degree of protection (IP)

IP54

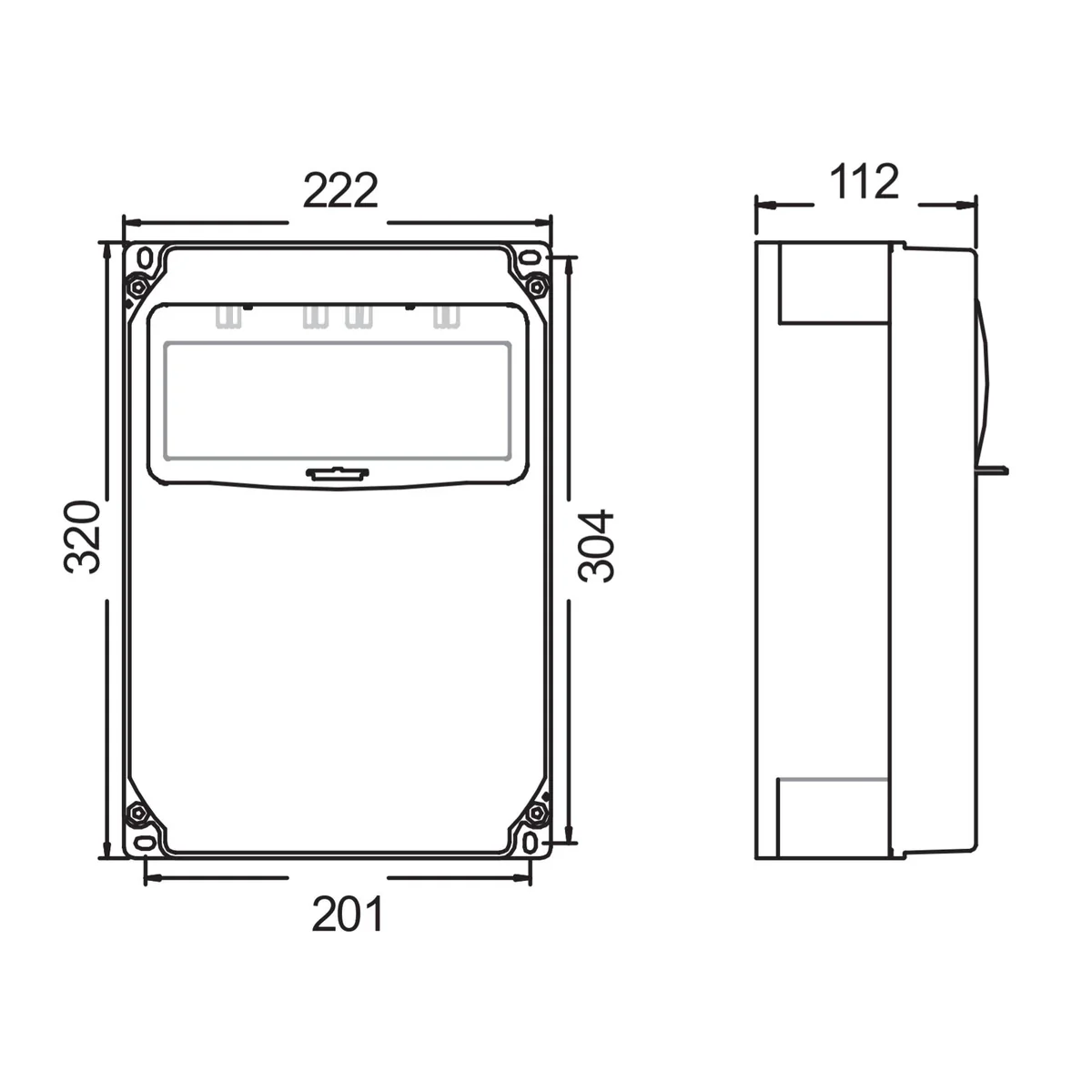

Width

222 mm
Depth

112 mm

Rated voltage

230/400 V
Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N)

0
Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE)

0
Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE)

1
Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE)

0
Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE)

0
Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE)

0
Number of socket outlets with protective contact CEE 7/3 (type F)

2
Number of socket outlets Swiss standard type 15

0
Number of socket outlets Swiss standard type 25

0
Number of poles main switch

3
Number of earth leakage switches 10 mA

0
Number of earth leakage switches 100 mA

0
Emergency stop button

No
Housing material

Plastic
Height

320 mm
