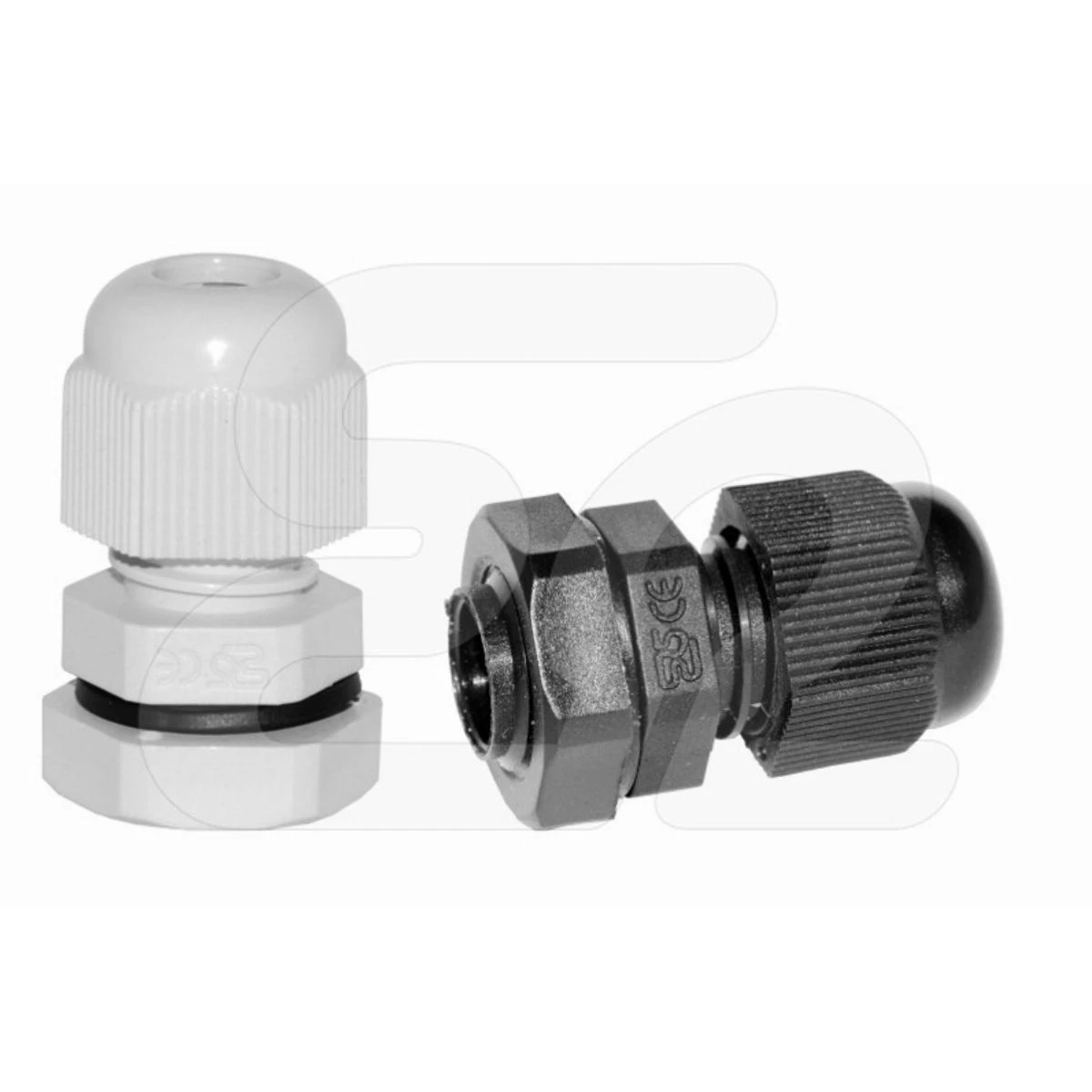

Plastic cable gland DP-EN 20 HM M20x1.5 IP68 gray E03DK-01040100301

local index:
RRR448ERGO
Catalog No:
E03DK-01040100301
Manufacturer: ERGOM
Thread: M20x1.5
Color: Gray
Maximum operating temperature [°C]: 80
Price:
0,43 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Features of DP-EN type glands:

  • popular glands with internal lamellae on a cap nut, M thread
  • have the highest degree of protection IP68
  • mounting nut and flat gasket included

Technical data

  • Thread
    M20x1.5
  • Maximum operating temperature [°C]
    80
  • Level of security
    IP68
  • PKWIU
    22.21.29.0
  • Color
    Gray
  • Material
    Polyamide
  • Minimum operating temperature [°C]
    -thirty

Other technical data

  • Thread type
    Metric
  • Thread length
    9 mm
  • Suitable for cable diameter
    7 ... 12 mm
  • Material quality
    Polyamide (PA)
  • Halogen free
    No
  • Degree of protection (IP)
    IP68
  • Colour
    Jasnoszary
  • With locknut
    Yes
  • Multi seal area
    No
  • With strain relief
    No
  • Separable screw gland
    Yes
  • Explosion-tested version
    No
  • For Ex-Zone dust
    None
  • Nominal thread size metric/PG
    20
  • Wrench width
    24 mm
  • Material
    Plastic
  • Surface protection
    Untreated
  • Glass-fibre reinforced
    No
  • Shock resistant
    Yes
  • Bend radius protection/trumpet flare
    No
  • Model
    Straight
  • Flat cable coupling
    No
  • Type of sealing
    Sealing ring
  • Operating temperature
    -30 ... 80 °C
  • For Ex-zone gas
    None

Bulk packaging

A kind of package Sztuka
Quantity 100 pcs.
Weight (kg) 0,015
Width (m) 0,030
Length (m) 0,010
Depth (m) 0,020
